CYLINDER ASSEMBLY RXL 0940768 and RXL TOURING 0940869 (4925062506041A)

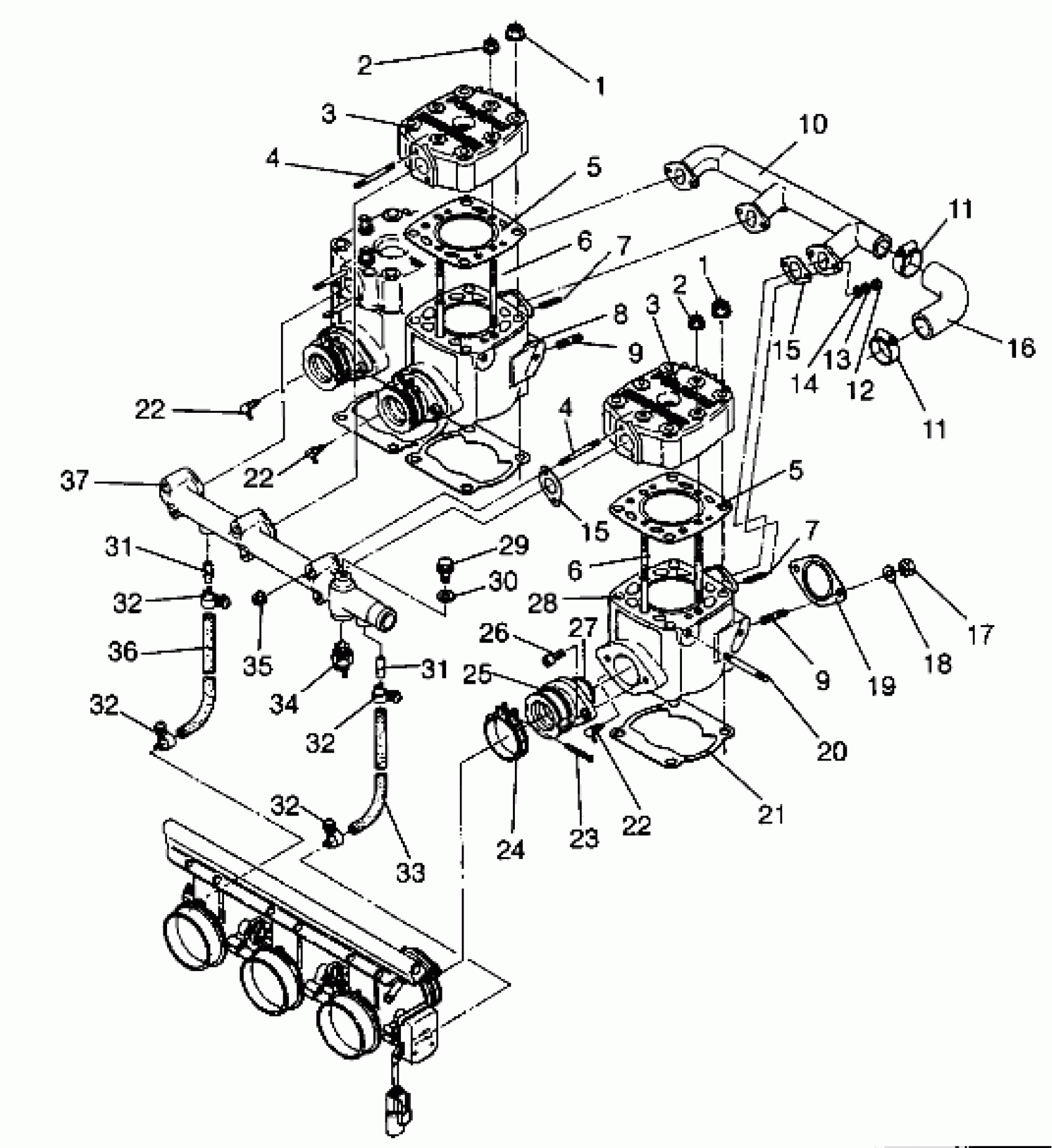

Polaris RXL - 0940768 CYLINDER ASSEMBLY RXL 0940768 and RXL TOURING 0940869 (4925062506041A) Diagram
#
1
NUT-FLANGE(10)
3082911
$1.99
1
NUT-FLANGE(10)
3082911
$1.99
2
NUT-FLANGE(10)
3082910
$2.39
2
NUT-FLANGE(10)
3082910
$2.39
3
HEAD, CYLINDER (Incl. 4)
3084042
$444.99
3
HEAD, CYLINDER (Incl. 4)
3084042
$444.99
4
Stud
3082934
$10.39
4
Stud
3082934
$10.39
5
GASKET, HEAD
3084376
Unavailable
5
GASKET, HEAD
3084376
Unavailable
6
STUD
3083392
Unavailable
6
STUD
3083392
Unavailable
7
STUD
3082931
Unavailable
7
STUD
3082931
Unavailable
8
CYLINDER (Incl. 6-9)
3084320
Unavailable
9
STUD (10)
3080016
$5.75
9
STUD (10)
3080016
$5.75
10
MANIFOLD,WATER INLET
3084493
Unavailable
11
CLAMP, HOSE
3083394
Unavailable
11
CLAMP, HOSE
3083394
Unavailable
12
NUT(10)
3082939
Unavailable
13
WASHER SPRING(10)
3080077
$2.39
14
WASHER(10)
3080078
Unavailable
15
GASKET(10)
3082937
Unavailable
15
GASKET(10)
3082937
Unavailable
16
HOSE-MAIN
3082938
Unavailable
17
NUT(10)
3080285
Unavailable
18
WASHER LOCK ,(10)
3080530
$3.19
19
GASKET, EXHAUST
3083770
Unavailable
20
STUD
3083360
Unavailable
21
GASKET,CYLINDER
3084614
$21.27
22
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
22
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
22
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
23
SCREW,(10)
3081497
$2.39
24
BAND ASM. (Incl. 23)
3084045
Unavailable
25
ADAPTER (Incl. 27)
3084043
Unavailable
26
BOLT
3084044
Unavailable
27
O-RING
3084229
$7.90
28
Cylinder 1 Compl. (Incl. 6,7,9,20)
-------
Unavailable
29
PLUG, DRAIN
3083767
Unavailable
30
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
31
PIPE, WATER
3084048
Unavailable
31
PIPE, WATER
3084048
Unavailable
32
CLAMP
3084051
Unavailable
32
CLAMP
3084051
Unavailable
32
CLAMP
3084051
Unavailable
32
CLAMP
3084051
Unavailable
33
HOSE, WATER
3084049
Unavailable
34
SWITCH,THERMAL(93 DEG.C.)
3083055
Unavailable
35
NUT, FLANGE(10)
3083856
$2.39
36
HOSE #2, (WATER)
3084050
Unavailable
37
MANIFOLD,WATER OUTLET (Incl. 31)
3084494
Unavailable
