COOLING SYSTEM RXL 0940768 and RXL TOURING 0940869 (4925062506017A)

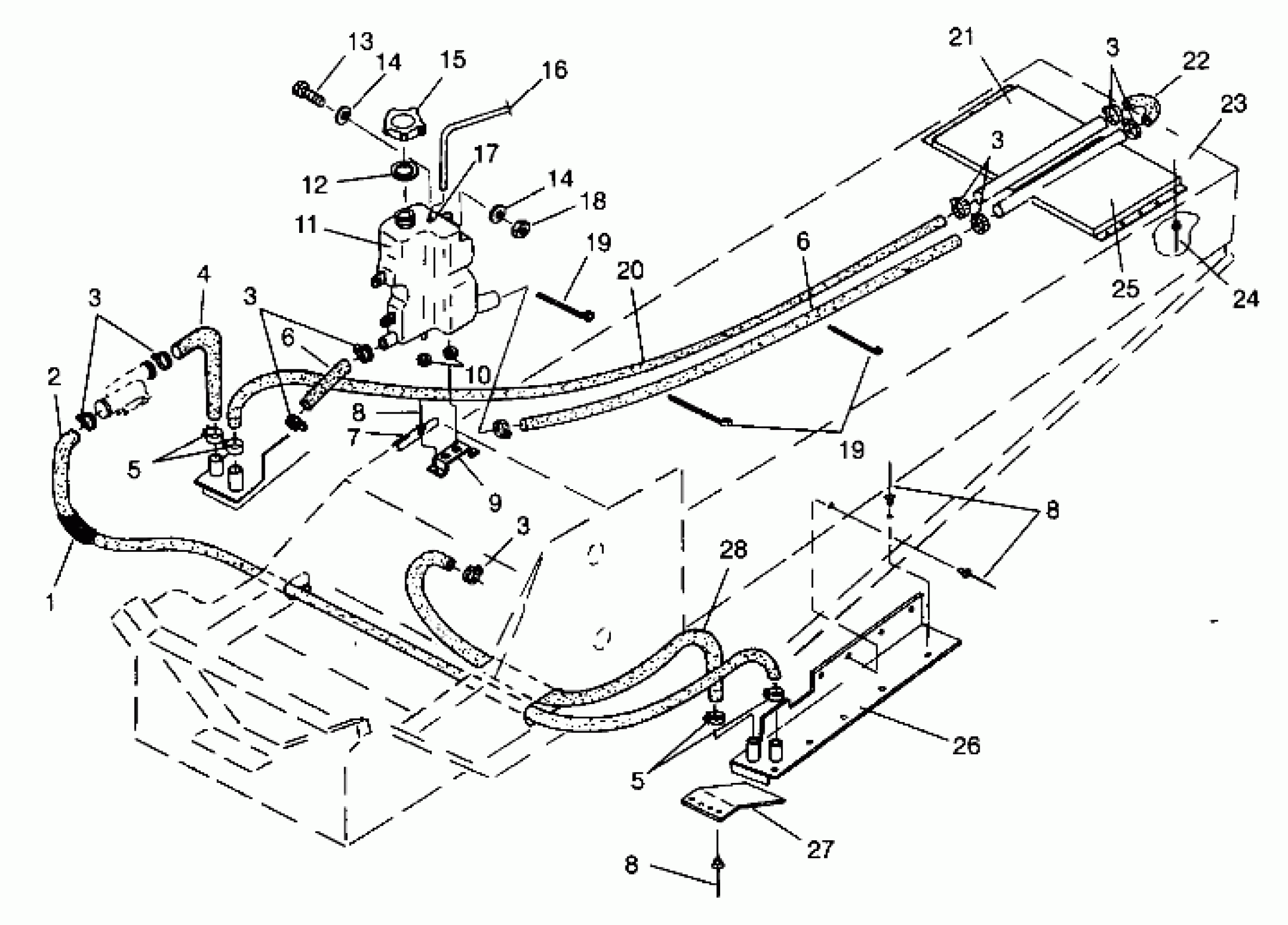

Polaris RXL - 0940768 COOLING SYSTEM RXL 0940768 and RXL TOURING 0940869 (4925062506017A) Diagram
#
Description
Price
1
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
2
HOSE,CROSS./BRAKE COOLER
5410795
Unavailable
3
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
3
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
3
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
3
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
3
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
4
HOSE,BRK.COOL.SIDE
5410705
$27.19
5
CLAMP,WORM DRIVE
7080547
Unavailable
5
CLAMP,WORM DRIVE
7080547
Unavailable
6
HOSE,87CM.(COOLANT) Substituted by 8450048-305
8450048-87
Unavailable
6
HOSE,87CM.(COOLANT) Substituted by 8450048-305
8450048-87
Unavailable
7
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
8
RIVET,INTERLOCK,B(50)
7661638
$1.49
8
RIVET,INTERLOCK,B(50)
7661638
$1.49
8
RIVET,INTERLOCK,B(50)
7661638
$1.49
9
BRKT, SURGE TANK
5222803
Unavailable
10
GROMMET RUBBER
5410021
Unavailable
11
TANK,SURGE,COOLANT
5431487
$37.11
12
GASKET-OIL CAP
5810141
$2.39
13
BOLT(10)
7512240
$3.99
14
WASHER,WROUGHT(10)
7558302
$1.59
14
WASHER,WROUGHT(10)
7558302
$1.59
15
CAP, SURGETANK
5431433
Unavailable
16
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
17
FITTING,(10)
7052077
$6.39
18
NUT-LOCK(10)
7542122
$1.49
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
20
HOSE,SIDE COOL./REAR
5410797
Unavailable
21
FOAM-SEAL,REAR COOLER
5810947
$4.03
22
HOSE,COOLING
5410758
Unavailable
23
FOAM TAPE Substituted by 5810290
5810814
Unavailable
24
RIVET-3/16-.090-.290
7661637
$1.49
25
COOL.EXCHANGER,REAR
2511234
Unavailable
26
COOLING WELD,RH
2511224
Unavailable
26
COOLING WELD,LH
2511223
$113.32
27
GUARD, COOL.EXT.
5222863
$32.99
28
HOSE,SIDE COOL./ENG.
5410796
Unavailable
