CHAINCASE ASSEMBLY RXL TOURING 0940869 (4925062506020A)

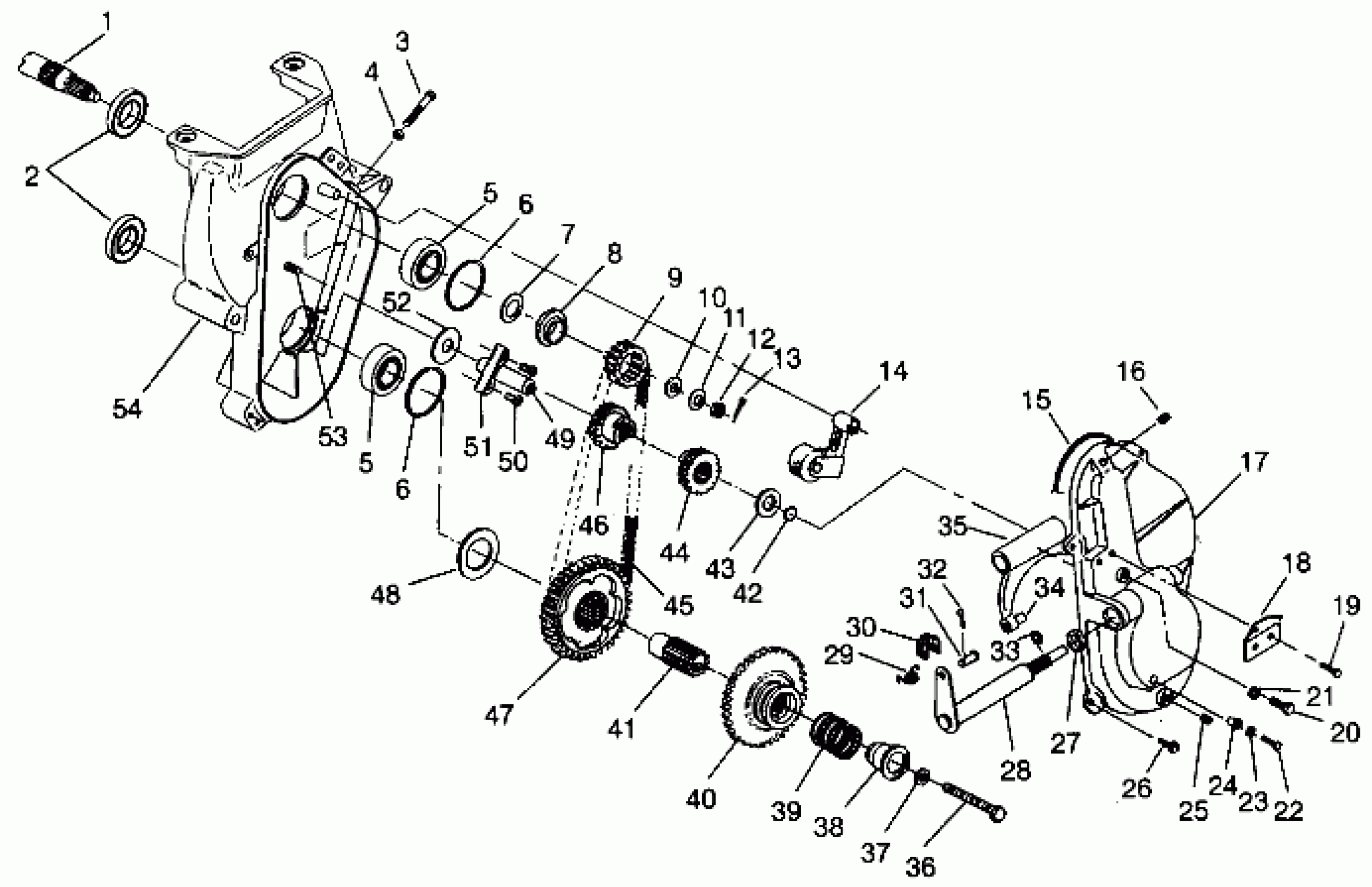

Polaris RXL - 0940768 CHAINCASE ASSEMBLY RXL TOURING 0940869 (4925062506020A) Diagram
#
1
Asm., Jackshaft (See Pg. A20, Ref. 15)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515511
$3.99
4
NUT(10)
7542404
$1.59
5
BEARING,205,W/O SEAL
3514304
$15.99
5
BEARING,205,W/O SEAL
3514304
$15.99
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
WASHER,THRUST(10)
7555876
Unavailable
8
SPACER, SPROCKET
5010270
Unavailable
9
SPKT,21T,(13W) (13W)
3221054
Unavailable
10
BUSHING(10)
7555863
$2.39
11
WASHER, SLOTTED(10)
7571620
$7.19
12
NUT, SLOTTED(10)
7542810
$3.19
13
COTTER PIN(10)
7661401
$1.49
14
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
15
GASKET-CHAINCASE
5410277
$24.99
16
PLUG(10)
7051520
$8.79
17
COVER,CHAINCASE Substituted by 5131114 (Incl. 18,19,27,28,33,34)
5130813
Unavailable
18
BRKT,CABLE MOUNT
5222502-067
Unavailable
19
SCREW(10)
7512252
Unavailable
20
SCREW(10)
7512497
Unavailable
21
WASHER WROUGHT(10)
7558403
$4.79
22
SCREW(10)
7511909
$3.99
23
WASHER, FLAT(10)
7558201
$5.79
24
NUT-WELL(10)
7541918
Unavailable
25
PLUG, DRAIN
7052053
Unavailable
26
SCREW(10)
7512225
$3.99
27
Seal, Oil
3610029
$8.89
28
SHAFT, SHIFT
1341093-067
$29.37
29
SPRING,REV.CABLE TENSION
7042044
Unavailable
30
CLEVIS
5222606
Unavailable
31
PIN, CLEVIS(10)
7661830
$3.99
32
PIN-COTTER(10)
7661205
$1.49
33
RING, RETAINER(10)
7710415
$3.99
34
PIN, SHIFT FORK(10)
7661826
$5.65
35
KIT,SHIFT FORK/SHAFT (Incl. 28,34)
2200363
Unavailable
36
SCREW, NYLOK(10)
7515348
$4.79
37
LOCK WASHER(10)
7552901
$1.49
38
RETAINER,DRIVE COUPLER
5130727
Unavailable
39
SPRING, COMPRESSION Substituted by 7041887
7041309
$44.99
40
GEAR ASM,REVERSE Substituted by 1341362
1341121
$559.99
41
Coupler, Drive
5130720
Unavailable
42
O RING
5410589
$4.99
43
WASHER,THRUST(10)
7555877
$3.99
44
GEAR,SPUR PINION
1341075
$149.99
45
CHAIN,66P,(13W),SILENT (13W)
3224051
Unavailable
46
GEAR ASM, PINION
1341076
Unavailable
47
Bearing, Needle
3555104
Unavailable
47
SPKT,39 13W REV Substituted by 1341111 (Incl. Bearing)(13W)
3222054
Unavailable
48
WASHER, REVERSE(10)
7555871
$5.59
49
SHAFT, PINION Substituted by 5131770
5130728
Unavailable
50
SCREW(10)
7512019
$3.99
51
BRKT,CHAIN RETENTION
5222298
Unavailable
52
WASHER, THRUST(10)
7555788
$4.99
53
BOLT(10)
7515477
$34.99
54
CHAINCASE,TOP MNT.BRAKE
5130849
Unavailable
