TUNNEL ASSEMBLY RXL / 0930768 and RXL SKS / 0930568 (4922992299001A)

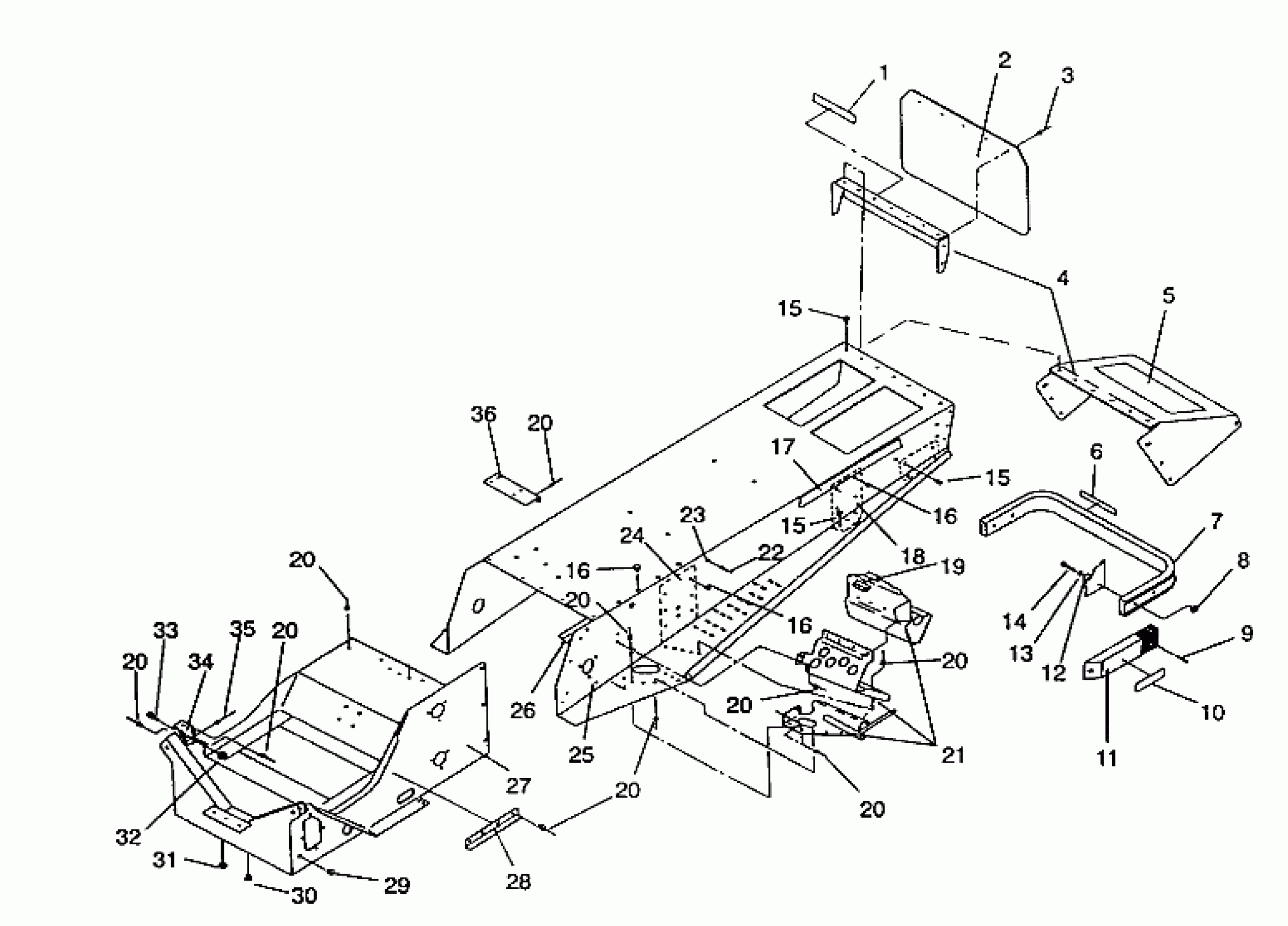

Polaris RXL - 0930768 TUNNEL ASSEMBLY RXL / 0930768 and RXL SKS / 0930568 (4922992299001A) Diagram
#
1
DECAL,TRACK/SEAT,SILVER [No Longer Available] (Silver)
7073123
Unavailable
2
FLAP,SNOW(RED&BLACK) Substituted by 5410394-1117
5410577
$121.02
3
POP RIVET(50)
7621418
$1.49
4
PANEL,TUNNEL,BACK Substituted by 5220478-067 (RXL)
5220478
Unavailable
4
PANEL,CLOSE-OFF,REAR Substituted by 1011694-067 (SKS)
1011694
Unavailable
5
DECAL,R.CLOSEOFF(RXLSKS) [No Longer Available] (SKS)
7073690
Unavailable
6
DECAL,R.BUMPER(RXL) [No Longer Available]
7073684
Unavailable
7
BUMPER,REAR,BLK. (RXL)
5224334-067
Unavailable
7
BUMPER,R.SKS EFI (SKS)
5224349-067
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
9
SCREW(10)
7511863
$1.99
10
REFLECTOR RED
2670070
$9.91
11
CAP, BUMPER, BLK.
5430930-070
Unavailable
12
WASHER(10)
7558301
$1.49
13
LOCK WASHER(10)
7552801
$1.59
14
BOLT(10)
7512240
$3.99
15
RIVET ,(50)
7661829
Unavailable
15
RIVET ,(50)
7661829
Unavailable
15
RIVET ,(50)
7661829
Unavailable
16
RIVET,(50)
7661825
$1.49
16
RIVET,(50)
7661825
$1.49
16
RIVET,(50)
7661825
$1.49
17
DECAL,TUNNEL,(RXL) [No Longer Available]
7073683
Unavailable
18
BRKT,RH.REAR SUSP. (SKS)
1011906-067
Unavailable
18
BRKT,LH.REAR SUSP (SKS)
1011905-067
Unavailable
18
BRKT,RH,R.SUSP. (RXL)
1011858-067
Unavailable
18
BRKT,LH,R.SUSP (RXL)
1011857-067
Unavailable
19
EXTRUSION,CLUTCHGUARD
5521238
$6.46
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
20
RIVET Substituted by 7661638
7661625
$1.19
21
FOOTREST ASM, LH
1011861
Unavailable
21
FOOTREST ASM, RH
1011862
Unavailable
22
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
23
SNAP-MALE(10)
7080227
Unavailable
24
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
25
TUNNEL ASM, (93 RXL) Substituted by 1011854 (RXL)(Incl. 4, 18, 24, 26)
1011942
Unavailable
25
TUNNEL ASM,(93 RXL SKS) Substituted by 1011889 (SKS)(Incl. 4, 18, 24, 26)
1011943
Unavailable
26
BRACE,TUNNEL REINF.
5222412
Unavailable
27
BULKHEAD Substituted by 1011873-067
1011873
Unavailable
28
GUARD
5223789
Unavailable
29
PLUG, HOLE(10)
7080416
$5.65
30
PLUG-HOLE
7080398
$4.84
31
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
32
NUT LOCK(10)
7542321
$1.49
33
SCREW(10)
7512307
$3.99
34
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
35
RIVET(50)
7621452
$1.49
36
BRKT, TOOL BOX
5220973
Unavailable
