SUSPENSION ASSEMBLY RXL SKS / 0930568 (4922992299020A)

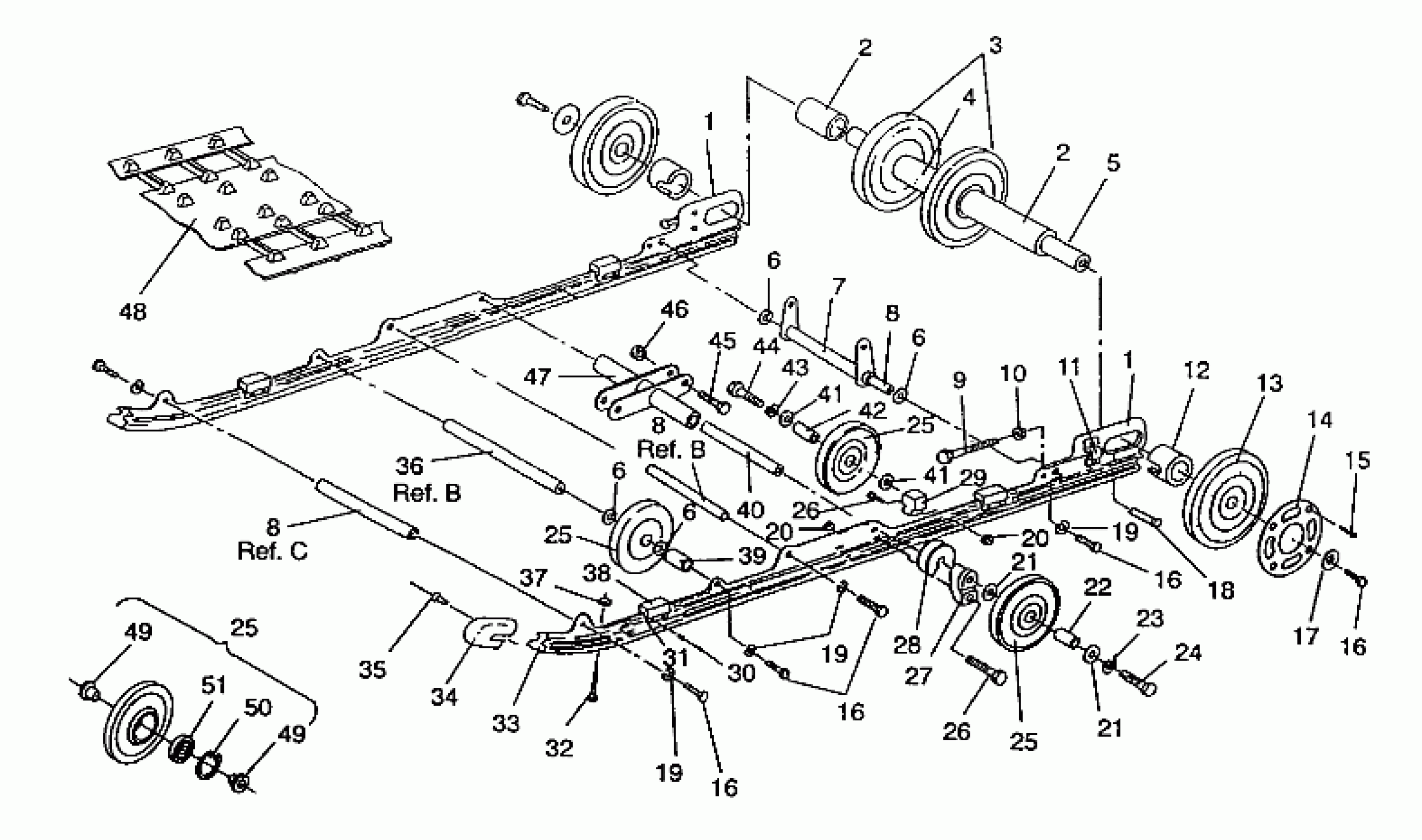

Polaris RXL - 0930768 SUSPENSION ASSEMBLY RXL SKS / 0930568 (4922992299020A) Diagram
#
1
RAIL ASM, RH. (Incl. 11, 31, 34, 38)
1540742
$289.99
1
RAIL ASM, LH. (Incl. 11, 31, 34, 38)
1540741
$140.87
1
RAIL ASM, RH. (Incl. 11, 31, 34, 38)
1540742
$289.99
1
RAIL ASM, LH. (Incl. 11, 31, 34, 38)
1540741
$140.87
2
SPACER INNER IDLER
5010169
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER CTR IDLER
5010168
Unavailable
5
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
ARM,R.PIVOT,BLK.
1540721-067
Unavailable
8
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
8
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
8
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
11
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
WHEEL,OUTER,W/HOLES Substituted by 1594021
1594035
Unavailable
14
COVER,IDLER WHL.
5220442
$25.59
15
SCREW,WHL.COVER(SE)(10)
7511853
Unavailable
16
BOLT(10) Substituted by 7512492
7515458
Unavailable
16
BOLT(10) Substituted by 7512492
7515458
Unavailable
16
BOLT(10) Substituted by 7512492
7515458
Unavailable
16
BOLT(10) Substituted by 7512492
7515458
Unavailable
17
WASHER FLAT(10)
7555732
Unavailable
18
RIVET,(50)
7621501
$2.39
19
WASHER(10)
7552603
$1.49
19
WASHER(10)
7552603
$1.49
19
WASHER(10)
7552603
$1.49
20
NUT LOCK(10)
7542403
$3.99
20
NUT LOCK(10)
7542403
$3.99
21
WASHER, FLAT(10)
7555852
$2.39
21
WASHER, FLAT(10)
7555852
$2.39
22
SPACER, WHEEL
5333116
$7.99
23
WASHER LOCK(10)
7553101
$3.99
24
BOLT(10)
7512538
$6.39
25
WHEEL, IDLER (Incl.49-51)
1543018
$56.65
25
WHEEL, IDLER (Incl.49- 51)
1543018
$56.65
25
WHEEL, IDLER (Incl.49-51)
1543018
$56.65
25
WHEEL, IDLER (Incl.49- 51)
1543018
$56.65
25
WHEEL, IDLER (Incl.49-51)
1543018
$56.65
25
WHEEL, IDLER (Incl.49- 51)
1543018
$56.65
25
WHEEL, IDLER (Incl.49-51)
1543018
$56.65
25
WHEEL, IDLER (Incl.49- 51)
1543018
$56.65
26
BOLT(10)
7512404
$3.99
26
BOLT(10)
7512404
$3.99
27
SPACER
5630399
$11.99
28
ROLLER, SPRING
5431366
$10.51
29
BRACKET,BOGIE WHEEL
5130570
$48.56
30
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
31
REINF., BUMPER
5222629
$13.75
32
SCREW(10)
7512227
$3.19
33
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
34
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
35
RIVET(50)
7621435
$1.49
36
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
37
NUT-LOCK(10)
7542122
$1.49
38
BUMPER, RAIL
5810554
$7.27
39
SPACER, OUTER
5332784
Unavailable
40
SHAFT,R.SHOCK BRKT.
5020649
Unavailable
41
WASHER(10)
7555804
$3.99
41
WASHER(10)
7555804
$3.99
42
SPACER
5332786
$7.99
43
LOCK WASHER(10)
7553201
$3.99
44
BOLT(10)
7512659
$7.99
45
BOLT(10)
7515415
$1.49
46
NUT-LOCK(10)
7542439
$1.49
47
MT.,R.SHOCK,BLK.
1011904-067
$15.67
48
TRACK Substituted by 5410823
5410594
Unavailable
49
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
49
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
50
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
51
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
