STEERING ASSEMBLY RXL/0930768 and RXL SKS/0930568 (4922992299015A)

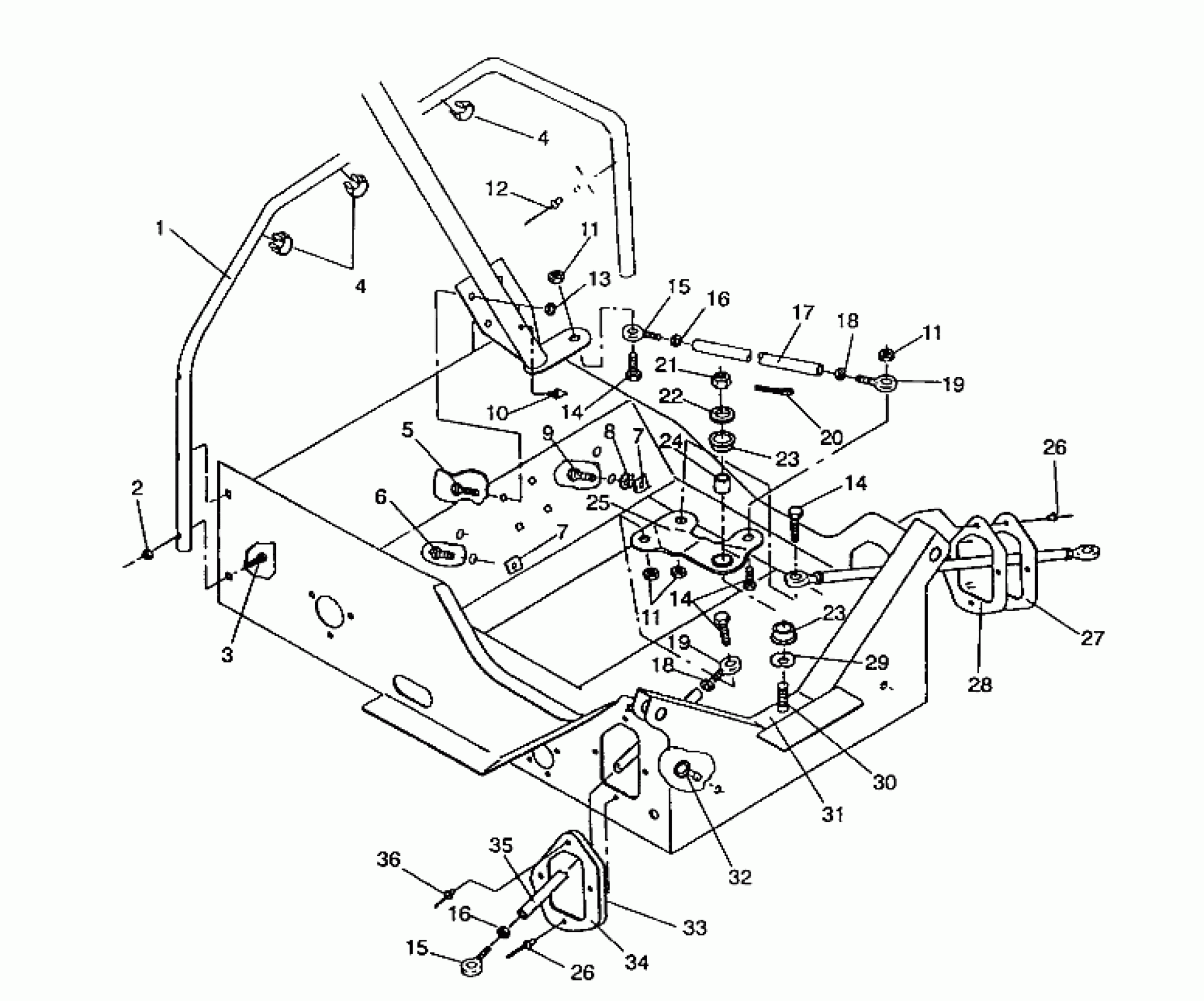

Polaris RXL - 0930768 STEERING ASSEMBLY RXL/0930768 and RXL SKS/0930568 (4922992299015A) Diagram
#
1
HOOP,STEERING
1011513-067
Unavailable
2
NUT-LOCK(10)
7542122
$1.49
3
BOLT-CARRIAGE(10)
7512275
$3.99
4
CLIP(10)
7080278
$2.63
4
CLIP(10)
7080278
$2.63
5
BOLT(10) Substituted by 7512377
7512394
Unavailable
6
BOLT(10)
7512193
$2.39
7
SPEED NUT(10)
7670021
$6.99
7
SPEED NUT(10)
7670021
$6.99
8
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
9
BOLT-CARRIAGE(10)
7512263
$3.99
10
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
11
NUT LOCK(10)
7542403
$3.99
11
NUT LOCK(10)
7542403
$3.99
11
NUT LOCK(10)
7542403
$3.99
12
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
BOLT(10)
7512404
$3.99
14
BOLT(10)
7512404
$3.99
14
BOLT(10)
7512404
$3.99
15
ROD END,LH Substituted by 7060164
7060124
$48.56
15
ROD END,LH Substituted by 7060164
7060124
$48.56
16
NUT
7542424
$1.49
16
NUT
7542424
$1.49
17
ROD-DRAG LINK
5332712
Unavailable
18
NUT HEX(10)
7542401
$2.39
18
NUT HEX(10)
7542401
$2.39
19
ROD END RH Substituted by 7060165
7060125
$48.56
19
ROD END RH Substituted by 7060165
7060125
$48.56
20
PIN COTTER(10)
7661203
$1.49
21
NUT(10)
7542712
$9.59
22
WASHER(10)
7555721
$1.49
23
BUSHING
3563907
$3.99
23
BUSHING
3563907
$3.99
24
BUSHING-SPACER
5010161
Unavailable
25
ARM,STEERING,CTR.
1822047-067
Unavailable
26
RIVET(50)
7621301
$3.99
26
RIVET(50)
7621301
$3.99
27
PLATE,LH,BOOTSEAL Substituted by 5210959-067
5210959
Unavailable
28
BOOT , LH
5410388
Unavailable
29
WASHER,WAVE(10)
7555735
$3.99
30
BOLT(10)
7512658
Unavailable
31
BLOCK, STEERING
5630375
Unavailable
32
CLIP, PLASTIC(10)
4020139
$4.79
33
BOOT-TIE ROD
5410328
Unavailable
34
PLATE,RH,BOOT SEAL
5210904
Unavailable
35
ROD,TIE,BLACK (SKS)
5332713-067
Unavailable
35
TIEROD (RXL)
5020636-067
Unavailable
36
POP RIVET(50)
7621303
Unavailable
