PISTON and CRANKSHAFT RXL / 0930768 and RXL SKS / 0930568 (4922992299032A)

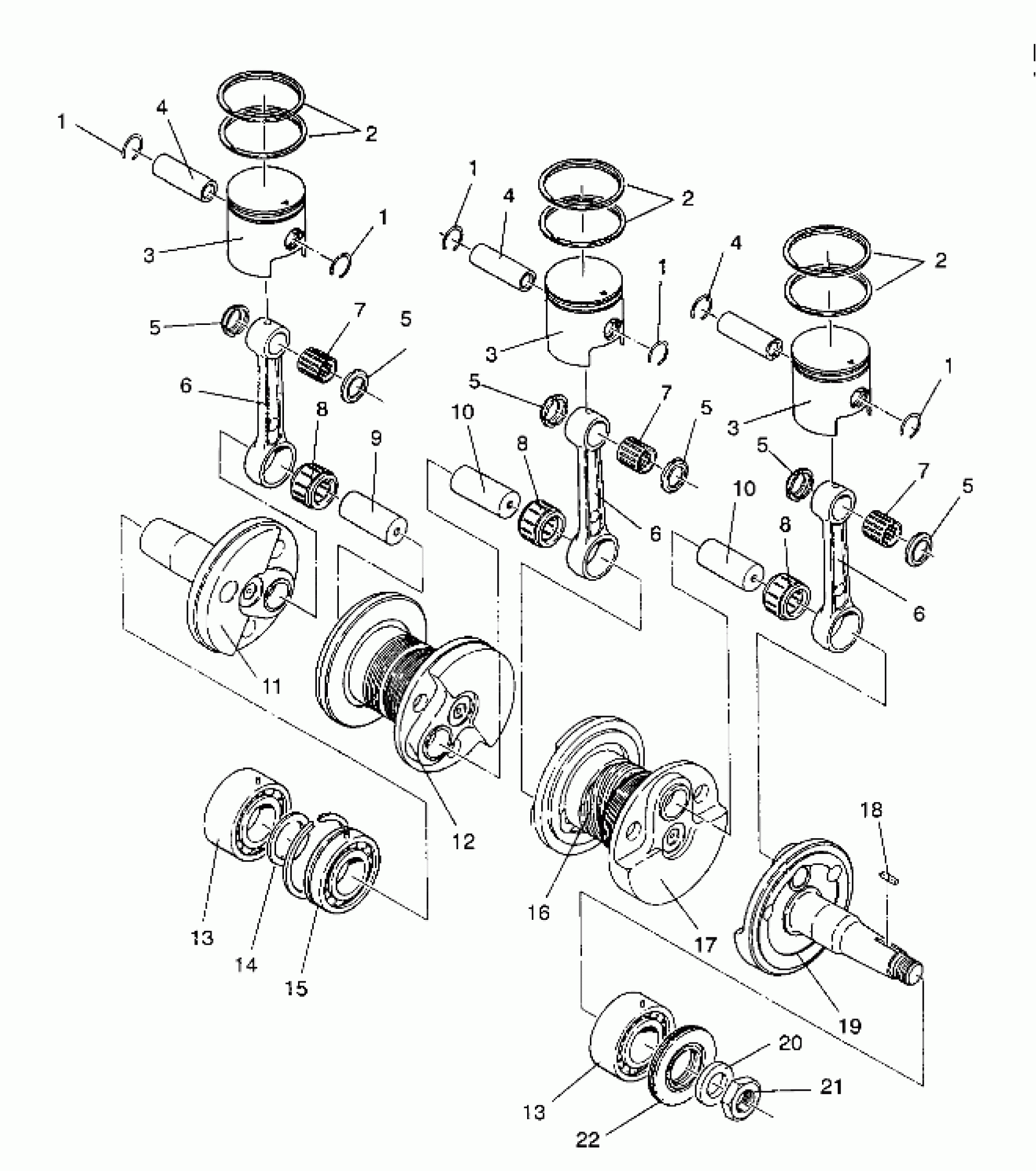

Polaris RXL - 0930768 PISTON and CRANKSHAFT RXL / 0930768 and RXL SKS / 0930568 (4922992299032A) Diagram
#
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
2
RING,.020 O/S (0.50mm/.020" O/S)
3083874
Unavailable
2
RING,.010 O/S (0.25mm/.010" O/S)
3083873
$47.39
2
RING, PISTON (Standard)
3083859
Unavailable
2
RING,.020 O/S (0.50mm/.020" O/S)
3083874
Unavailable
2
RING,.010 O/S (0.25mm/.010" O/S)
3083873
$47.39
2
RING, PISTON (Standard)
3083859
Unavailable
2
RING,.020 O/S (0.50mm/.020" O/S)
3083874
Unavailable
2
RING,.010 O/S (0.25mm/.010" O/S)
3083873
$47.39
2
RING, PISTON (Standard)
3083859
Unavailable
3
PISTON ASM, STD. (Standard)
3084245
$142.84
3
PISTON,(.010 O/S) (0.25mm/.010" O/S)
3084246
Unavailable
3
PISTON, (.020 O/S) (0.50mm/.020" O/S)
3084247
$78.32
3
PISTON ASM, STD. (Standard)
3084245
$142.84
3
PISTON,(.010 O/S) (0.25mm/.010" O/S)
3084246
Unavailable
3
PISTON, (.020 O/S) (0.50mm/.020" O/S)
3084247
$78.32
3
PISTON ASM, STD. (Standard)
3084245
$142.84
3
PISTON,(.010 O/S) (0.25mm/.010" O/S)
3084246
Unavailable
3
PISTON, (.020 O/S) (0.50mm/.020" O/S)
3084247
$78.32
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
5
SPACER Substituted by 3083860
3083401
Unavailable
5
SPACER Substituted by 3083860
3083401
Unavailable
5
SPACER Substituted by 3083860
3083401
Unavailable
5
SPACER Substituted by 3083860
3083401
Unavailable
5
SPACER Substituted by 3083860
3083401
Unavailable
5
SPACER Substituted by 3083860
3083401
Unavailable
6
ROD-CONNECTING
3083252
$164.99
6
ROD-CONNECTING
3083252
$164.99
6
ROD-CONNECTING
3083252
$164.99
7
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
7
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
7
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
9
PIN-CRANK 2
3083254
Unavailable
10
PIN-CRANK 1
3083253
$12.81
10
PIN-CRANK 1
3083253
$12.81
11
CRANKSHAFT,PTO END
3083346
Unavailable
12
CRANKSHAFT,PTO SIDE (PTO Side)
3083479
$1,104.99
13
BEARING, BALL
3084378
Unavailable
13
BEARING, BALL
3084378
Unavailable
14
Spacer
3083399
$1.49
15
BALL BEARING, C-4
3083714
Unavailable
16
BEARING, BALL Substituted by 3084586
3083480
$44.99
17
CRANKSHAFT,CENTER (Center)
3083477
Unavailable
17
CRANKSHAFT,MAG SIDE (Mag Side)
3083478
$314.22
18
KEY
3081447
Unavailable
19
CRANKSHAFT 1 MAG. END
3083342
Unavailable
19
CRANKSHAFT ASM. (Incl. 6, 8-17)
3084377
$1,104.99
20
WASHER
3083048
Unavailable
21
NUT
3083047
Unavailable
22
SEAL, OIL(10)
3083045
$36.41
