MAGNETO ASSEMBLY RXL / 0930768 and RXL SKS / 0930568 (4922992299036A)

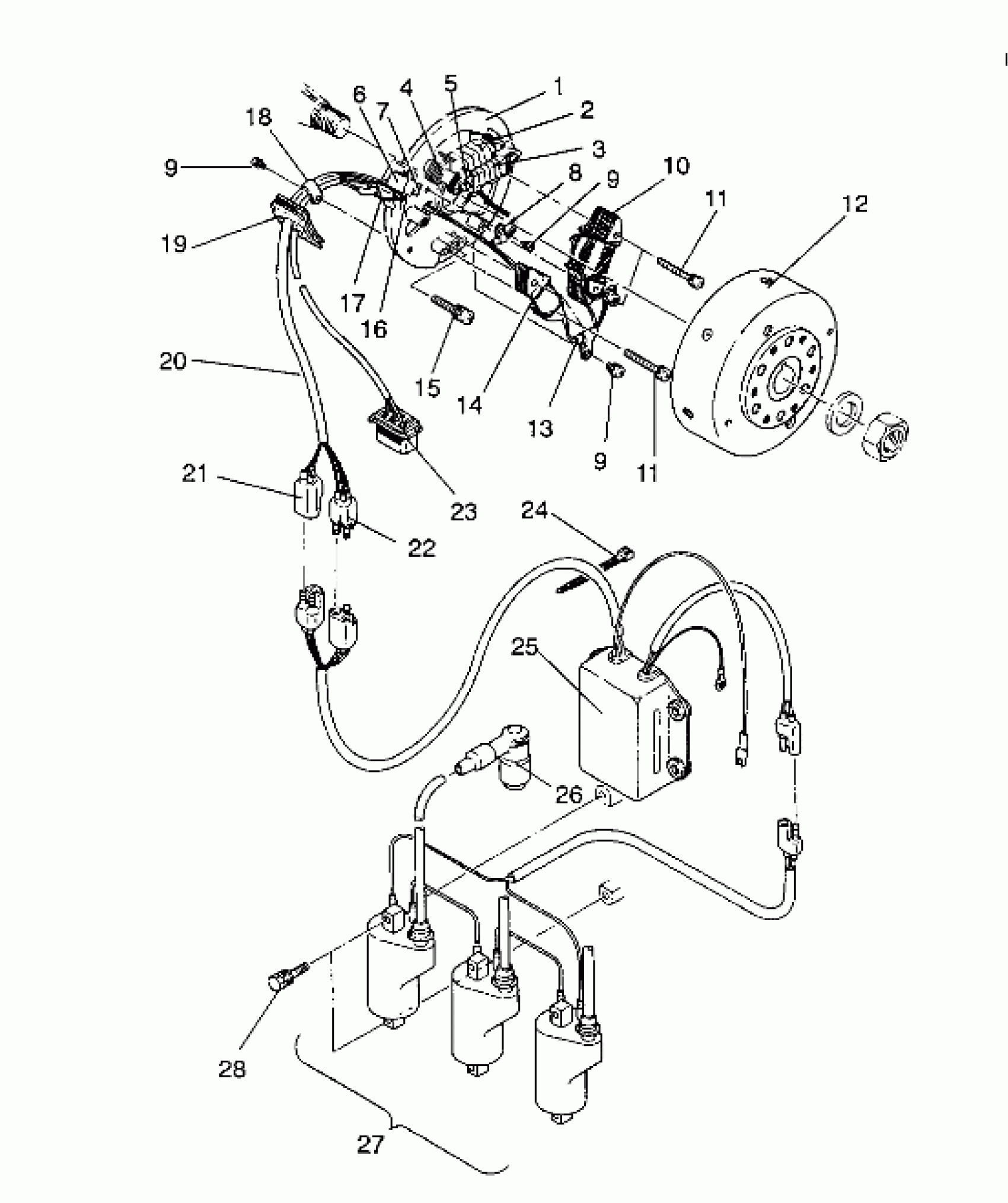

Polaris RXL - 0930768 MAGNETO ASSEMBLY RXL / 0930768 and RXL SKS / 0930568 (4922992299036A) Diagram
#
Description
Price
1
PLATE ASM. (Incl. 1-11,13 14,16-23)
3084497
Unavailable
1
MAG., CPL. [No Longer Available] (Incl. 1-14,16-23)
3084496
Unavailable
2
COIL, EXCITING
3084091
Unavailable
3
COIL, PULSATING
3084092
Unavailable
4
COLLAR
3082961
Unavailable
5
SCREW-WASHER ASM(10)
3082962
Unavailable
6
COIL, PULSER
3084093
Unavailable
7
Band
3084099
Unavailable
8
CLAMP
3081259
Unavailable
9
SCREW&WASHER,(10)
3081260
$3.19
9
SCREW&WASHER,(10)
3081260
$3.19
9
SCREW&WASHER,(10)
3081260
$3.19
10
COIL, LAMP
3084094
Unavailable
11
SCREW & WASHER
3081588
Unavailable
11
SCREW & WASHER
3081588
Unavailable
12
FLYWHEEL
3084299
Unavailable
13
CLAMP
3084382
Unavailable
14
COIL, CHARGE
3084381
Unavailable
15
BOLT&WASHER ASM.
3083866
Unavailable
16
SCREW & WASHER ASM.
3084096
Unavailable
17
BAND
3084097
Unavailable
18
Clamp
3081146
$1.49
19
Grommet
3082969
Unavailable
20
HARNESS ASM, WIRE
3084500
Unavailable
21
COUPLER, 3P
3084498
Unavailable
22
COUPLER, 3P
3084499
Unavailable
23
COUPLER,MALE
3081513
$19.99
24
BAND, WIRE
3084384
$4.95
25
CDI SYSTEM
3084501
Unavailable
26
CAP SPARK PLUG,(10)
4020129
$9.70
27
COIL, IGNITION Substituted by 3085212
3084103
Unavailable
28
SCREW & WASHER ASM.
3083867
Unavailable
