CYLINDER ASSEMBLY RXL / 0930768 and RXL SKS / 0930568 (4922992299030A)

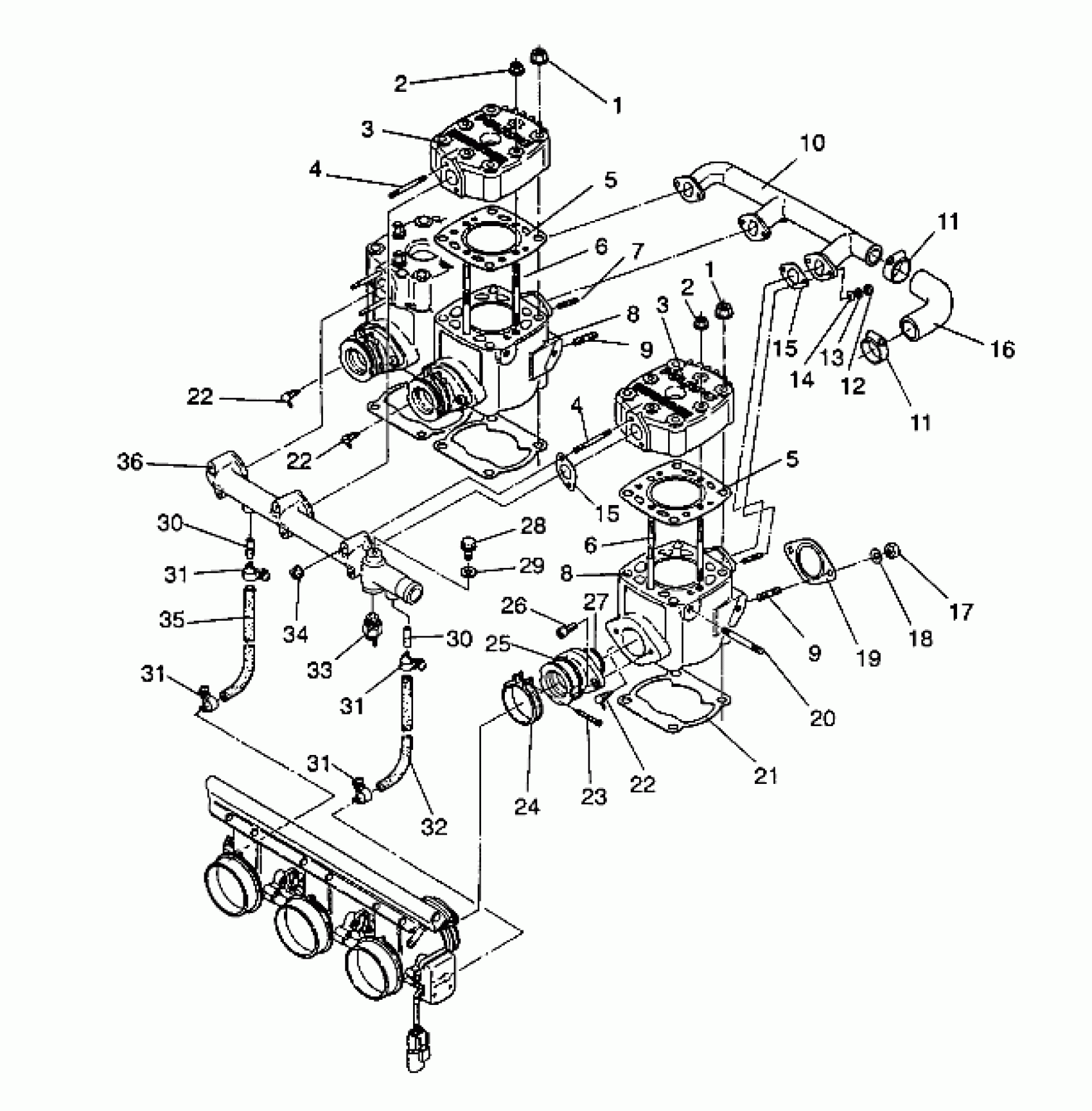

Polaris RXL - 0930768 CYLINDER ASSEMBLY RXL / 0930768 and RXL SKS / 0930568 (4922992299030A) Diagram
#
1
NUT-FLANGE(10)
3082911
$1.99
1
NUT-FLANGE(10)
3082911
$1.99
2
NUT-FLANGE(10)
3082910
$2.39
2
NUT-FLANGE(10)
3082910
$2.39
3
HEAD, CYLINDER
3084042
$444.99
3
HEAD, CYLINDER
3084042
$444.99
4
Stud
3082934
$10.39
4
Stud
3082934
$10.39
5
GASKET, HEAD
3084376
Unavailable
5
GASKET, HEAD
3084376
Unavailable
6
STUD
3083392
Unavailable
6
STUD
3083392
Unavailable
7
STUD
3082931
Unavailable
8
CYLINDER (Incl. 6 - 9)
3084320
Unavailable
8
CYLINDER (Incl. 6 - 9)
3084320
Unavailable
9
STUD (10)
3080016
$5.75
9
STUD (10)
3080016
$5.75
10
MANIFOLD,WATER INLET
3084493
Unavailable
11
CLAMP, HOSE
3083394
Unavailable
11
CLAMP, HOSE
3083394
Unavailable
12
NUT(10)
3082939
Unavailable
13
WASHER SPRING(10)
3080077
$2.39
14
WASHER(10)
3080078
Unavailable
15
GASKET(10)
3082937
Unavailable
15
GASKET(10)
3082937
Unavailable
16
HOSE-MAIN
3082938
Unavailable
17
NUT(10)
3080285
Unavailable
18
WASHER LOCK ,(10)
3080530
$3.19
19
GASKET, EXHAUST Substituted by 3083770
3084046
Unavailable
20
STUD
3083360
Unavailable
21
GASKET, CYLINDER Substituted by 3084614
3084041
$21.27
22
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
22
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
22
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
23
SCREW,(10)
3081497
$2.39
24
BAND ASM.
3084045
Unavailable
25
ADAPTER
3084043
Unavailable
26
BOLT
3084044
Unavailable
27
O-RING
3084229
$7.90
28
PLUG, DRAIN
3083767
Unavailable
29
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
30
PIPE, WATER
3084048
Unavailable
30
PIPE, WATER
3084048
Unavailable
31
CLAMP
3084051
Unavailable
31
CLAMP
3084051
Unavailable
31
CLAMP
3084051
Unavailable
31
CLAMP
3084051
Unavailable
32
HOSE, WATER
3084049
Unavailable
33
SWITCH,THERMAL(93 DEG.C.)
3083055
Unavailable
34
NUT, FLANGE(10)
3083856
$2.39
35
HOSE #2, (WATER)
3084050
Unavailable
36
MANIFOLD,WATER OUTLET
3084494
Unavailable
