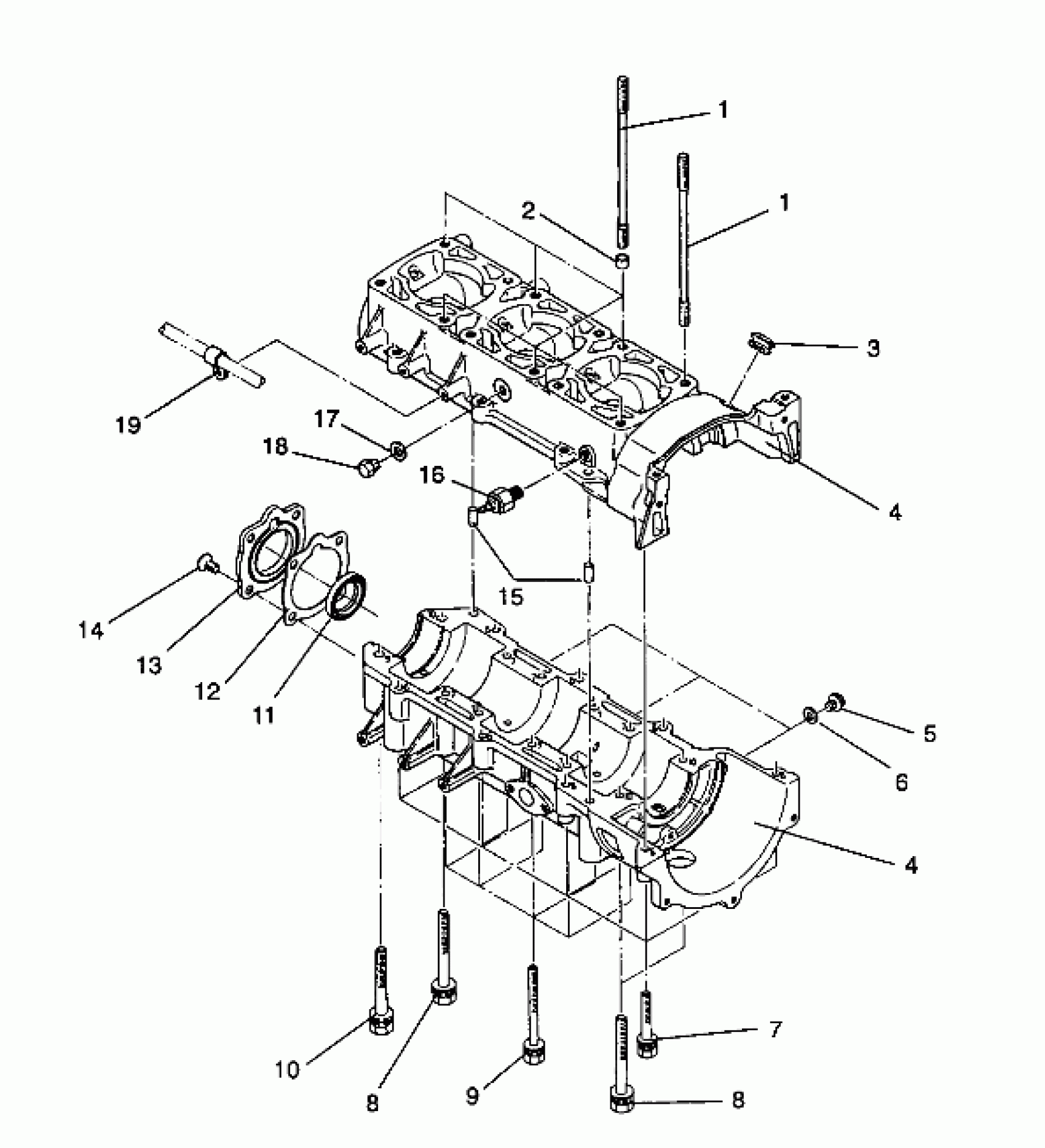

Polaris RXL - 0930768 CRANKCASE ASSEMBLY RXL / 0930768 and RXL SKS / 0930568 (4922992299029A) Diagram

#

Description
Price

1

STUD

3083785

Unavailable

1

STUD

3083785

Unavailable

2

SPACER

3083786

Unavailable

3

GROMMET

3082875

$7.99

4

CRANKCASE ASM. (Incl. 7-9, 15)

3084374

Unavailable

4

CRANKCASE ASM. (Incl. 7-9, 15)

3084374

Unavailable

5

Plug

3084491

Unavailable

6

Gasket, Aluminum

3084492

$4.03

7

BOLT AND WASHER ASSY.

3082097

Unavailable

8

BOLT-WASHER

3082924

Unavailable

8

BOLT-WASHER

3082924

Unavailable

9

BOLT-WASHER

3082923

$6.19

10

BOLT & WASHER

3082925

Unavailable

11

SEAL, OIL(10)

3083331

Unavailable

12

GASKET

3083473

$1.49

13

COVER, CRANKCASE

3083390

Unavailable

14

SCREW, COUNTER SUNK

3083333

Unavailable

15

PIN,DOWEL(10) Substituted by 3080103

3083054

Unavailable

16

SENSOR,CASE TEMP.

3084039

Unavailable

17

GASKET,ALUMINUM(10)

3083482

$3.22

18

PLUG

3082926

$3.51

19

CLAMP

3083391

$6.23
