CHAINCASE ASSEMBLY RXL/0930768 and RXL SKS/0930568 (4922992299017A)

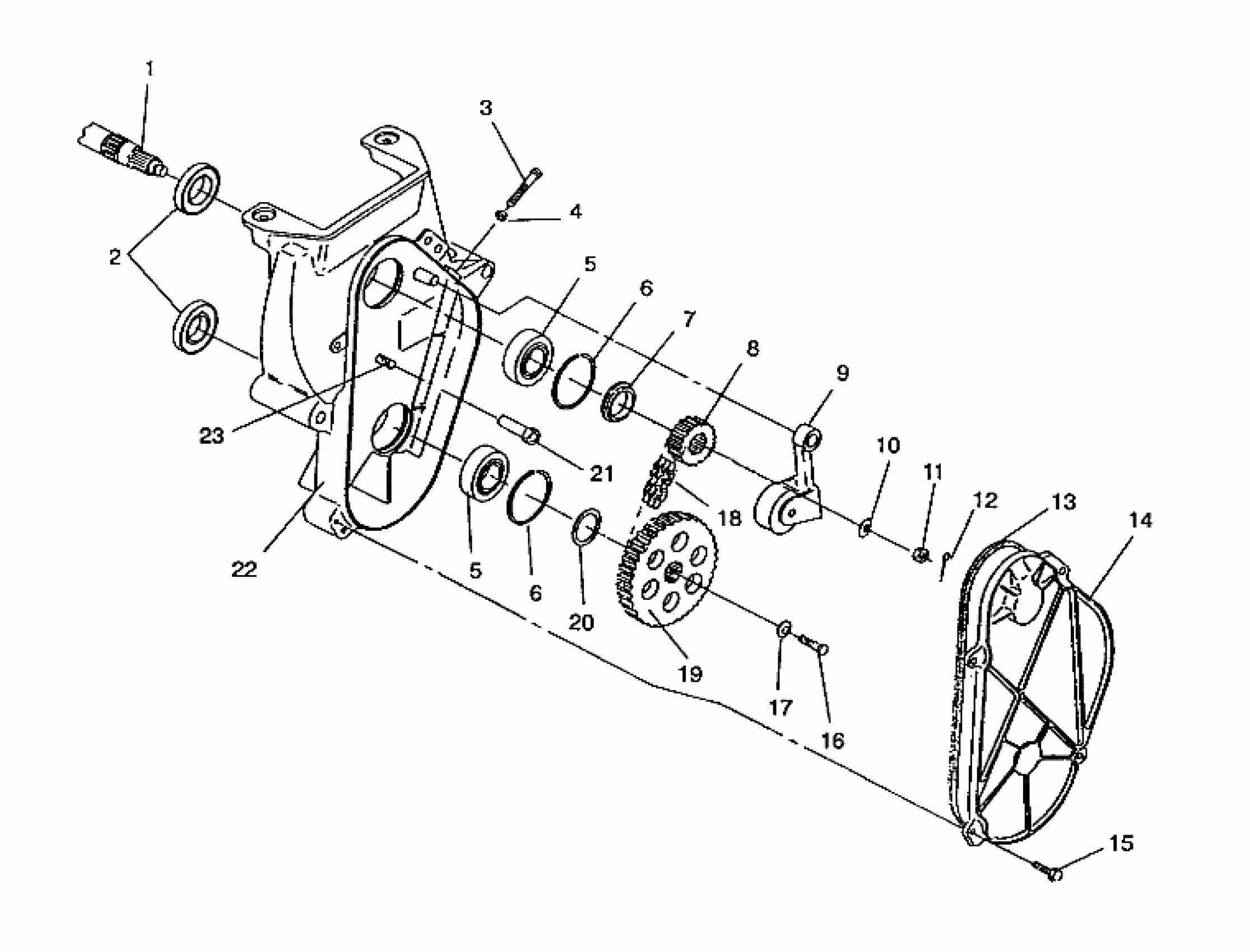

Polaris RXL - 0930768 CHAINCASE ASSEMBLY RXL/0930768 and RXL SKS/0930568 (4922992299017A) Diagram
#
Description
Price
1
Asm., Jackshaft (See 15, pg. 17)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515511
$3.99
4
NUT(10)
7542404
$1.59
5
BEARING,CHAINCASE
3514306
Unavailable
5
BEARING,CHAINCASE
3514306
Unavailable
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
SPACER, SPROCKET
5010270
Unavailable
8
SPKT,20T,(13W) (SKS)
3221055
Unavailable
8
SPKT,21T,(13W) (XLT & SP)
3221054
Unavailable
9
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
10
WASHER, SLOTTED(10)
7571620
$7.19
11
NUT, SLOTTED(10)
7542810
$3.19
12
COTTER PIN(10)
7661401
$1.49
13
GASKET-CHAINCASE
5410277
$24.99
14
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
15
SCREW(10)
7512242
$2.39
16
SCREW(10)
7515350
$3.97
17
WASHER(10)
7571618
$6.39
18
CHAIN,66P,(13W),SILENT (SKS)
3224051
Unavailable
18
CHAIN,64P,(13W),SILENT (RXL)
3224052
Unavailable
19
SPROCKET,35T,(13W) (13W) (RXL)
3222053
Unavailable
19
SPROCKET,39T,(13W) (13W) (SKS)
3222052
Unavailable
20
BUSHING(10)
7555864
$2.39
21
CAP, STUD COVER
5020569
Unavailable
22
CHAINCASE,TOP MNT.BRAKE
5130849
Unavailable
23
BOLT(10)
7515477
$34.99
