Description

Price

1

lamp head

94814001000

$721.34

2

Front right turn signal

94514026000

$135.57

3

Front left turn signal

94514025000

$146.88

4

indicator rear RH

94814525000

$88.16

5

indicator rear LH

94814526000

$88.16

6

LICENSE PLATE ILLUMINATION

90514047000

$26.55

7

Washer M10

J125100009

$1.49

8

Toothed washer, M10

J06797100183

$1.49

9

CROSS PAN SCREW 4X12 PH

J081040121

$1.49

10

Screw button head step M5x6.5

J900000500900

$1.49

11

Hex nut, M10

J934100001

$1.49

12

Tail light

94514040000

$154.64

13

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

14

PLAIN WASHER

90814044000

$1.49

15

beading lamp head

94814001050

$5.23

16

SIDE REFLECTOR REAR

90212582000

$5.23

18

BRACKET SIDE REFLECTOR REAR

90212581000

$6.91

17

Hex collar nut, M5

J06923050053

$1.49

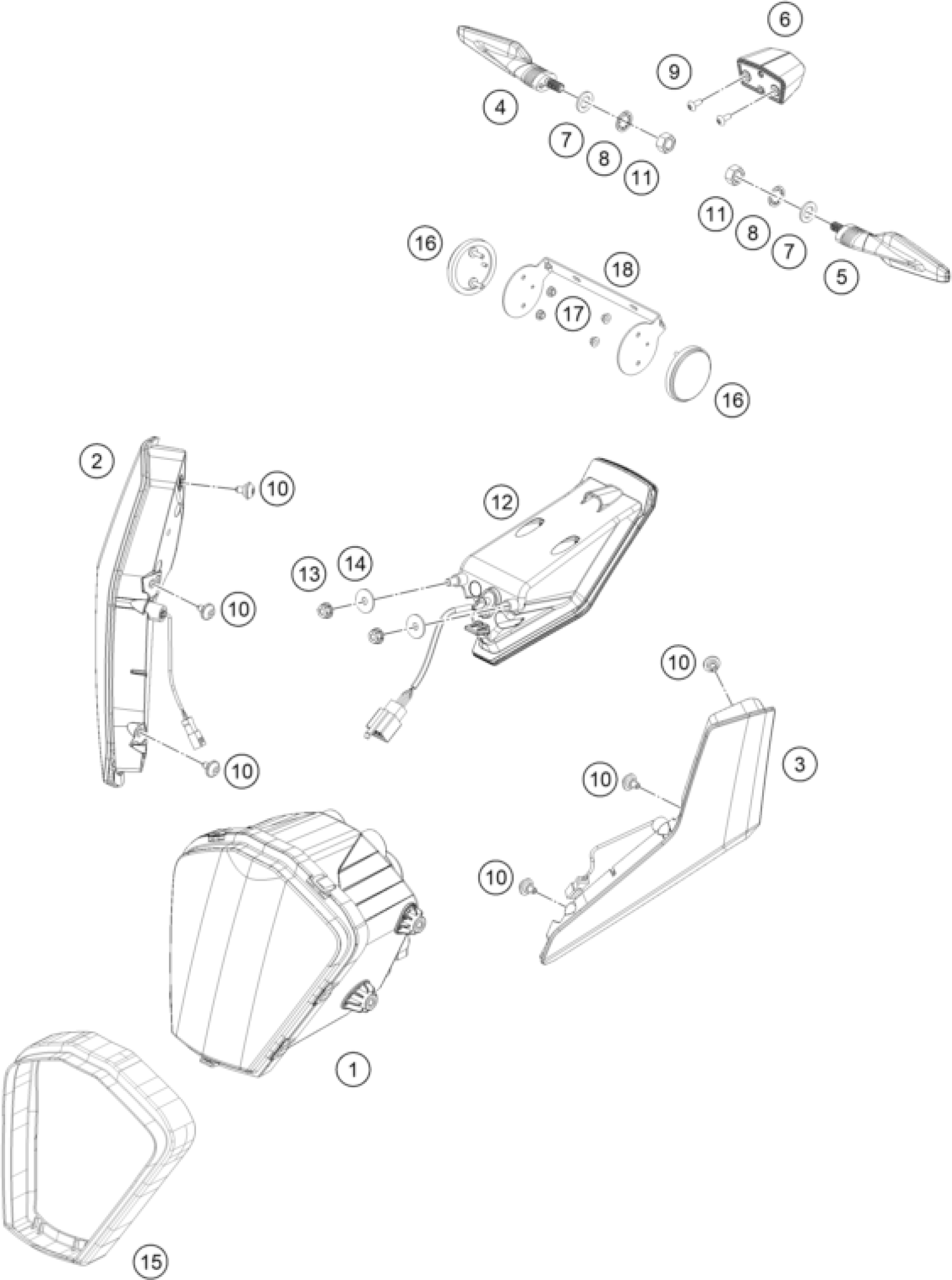

KTM RC 390, blue - B.D. 2022 LIGHTING SYSTEM Diagram

lamp head

Front right turn signal

Front left turn signal

indicator rear RH

indicator rear LH

LICENSE PLATE ILLUMINATION

Washer M10

Toothed washer, M10

CROSS PAN SCREW 4X12 PH

Screw button head step M5x6.5

Hex nut, M10

Tail light

FLANGED NUT M6 WS10 SELF LOCK.

PLAIN WASHER

beading lamp head

SIDE REFLECTOR REAR

BRACKET SIDE REFLECTOR REAR

Hex collar nut, M5
