Description

Price

1

ASSEMBLY PREMUFFLER

28105050044

$369.13

2

PIPE ASSEMBLY A

94305007031

$1,039.71

3

GASKET EXHAUST

90105004100

$5.98

4

GASKET EXHAUST

94305050172

$6.82

5

Exhaust clamp

94305051000

$14.30

6

clip nut

90103097000

$4.11

7

muffler mounting spacer bushin

90205086001

$2.05

8

damper, bottom

90205068000

$2.05

9

BOLT SILENCER MTG

90105000002

$1.49

10

Oxygen sensor

94341090000

$100.69

11

Hex collar nut M6

J926080003

$1.49

12

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

13

muffler mounting tube

90105084000

$4.11

14

damper, bottom

90105068100

$1.49

16

Exhaust flange gasket, muffler

94305050071

$8.31

17

Exhaust pipe clamp

95805051010

$11.87

18

muffler assembly secondary # U

94505583000

$378.76

21

BUSH MUFFLER

93805095000

$4.11

22

DAMPER MUFFLER

93805096000

$1.49

23

nut hex flange-M8x1.25xcl8xdac

J692080006

$1.49

24

Hex collar screw M8x40

J900000804001

$1.49

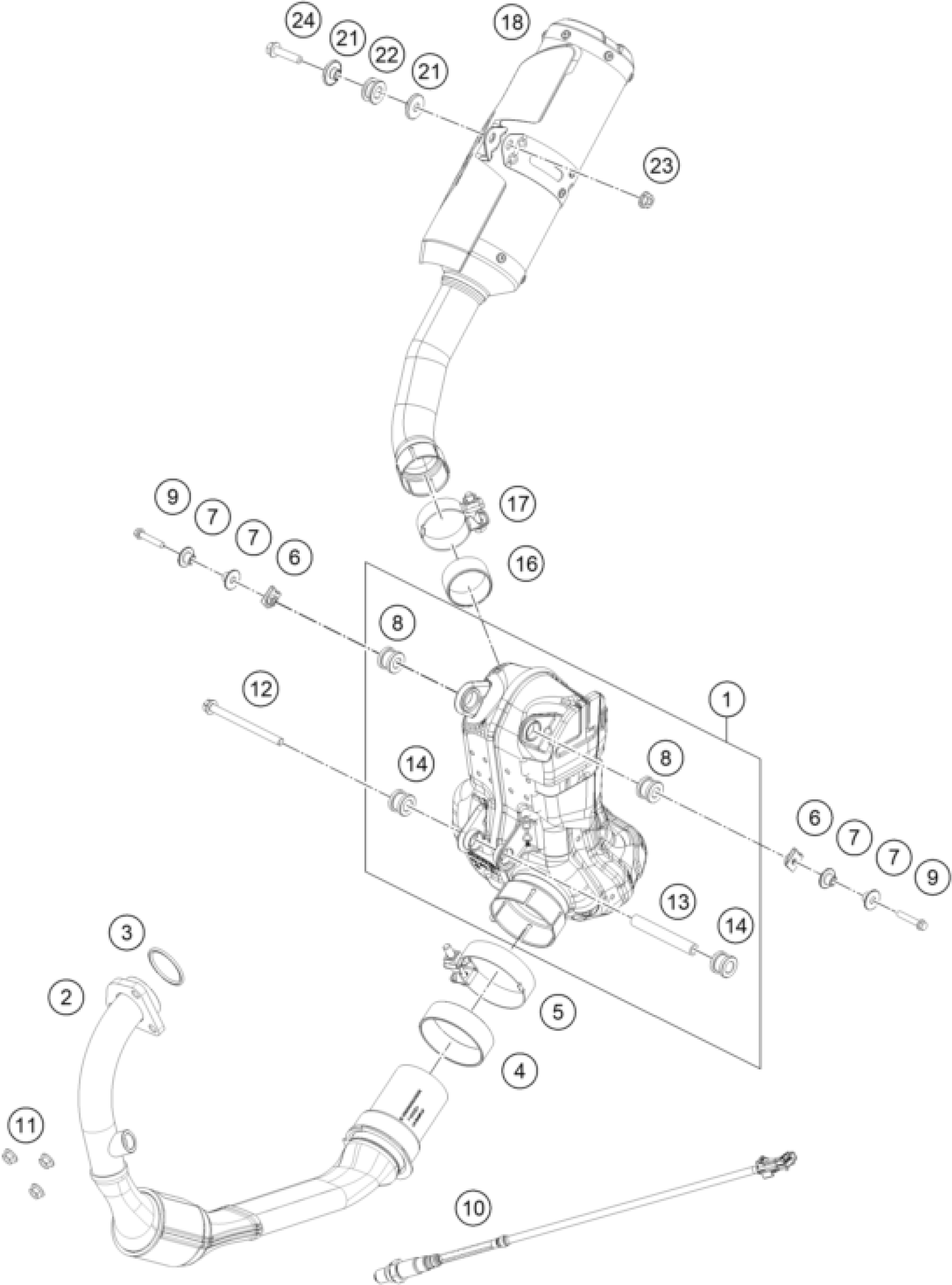

KTM RC 390, blue - B.D. 2022 EXHAUST SYSTEM Diagram

ASSEMBLY PREMUFFLER

PIPE ASSEMBLY A

GASKET EXHAUST

GASKET EXHAUST

Exhaust clamp

clip nut

muffler mounting spacer bushin

damper, bottom

BOLT SILENCER MTG

Oxygen sensor

Hex collar nut M6

HH COLLAR SCREW M8X105 SW12

muffler mounting tube

damper, bottom

Exhaust flange gasket, muffler

Exhaust pipe clamp

muffler assembly secondary # U

BUSH MUFFLER

DAMPER MUFFLER

nut hex flange-M8x1.25xcl8xdac

Hex collar screw M8x40
