07- Steering System EUROPE

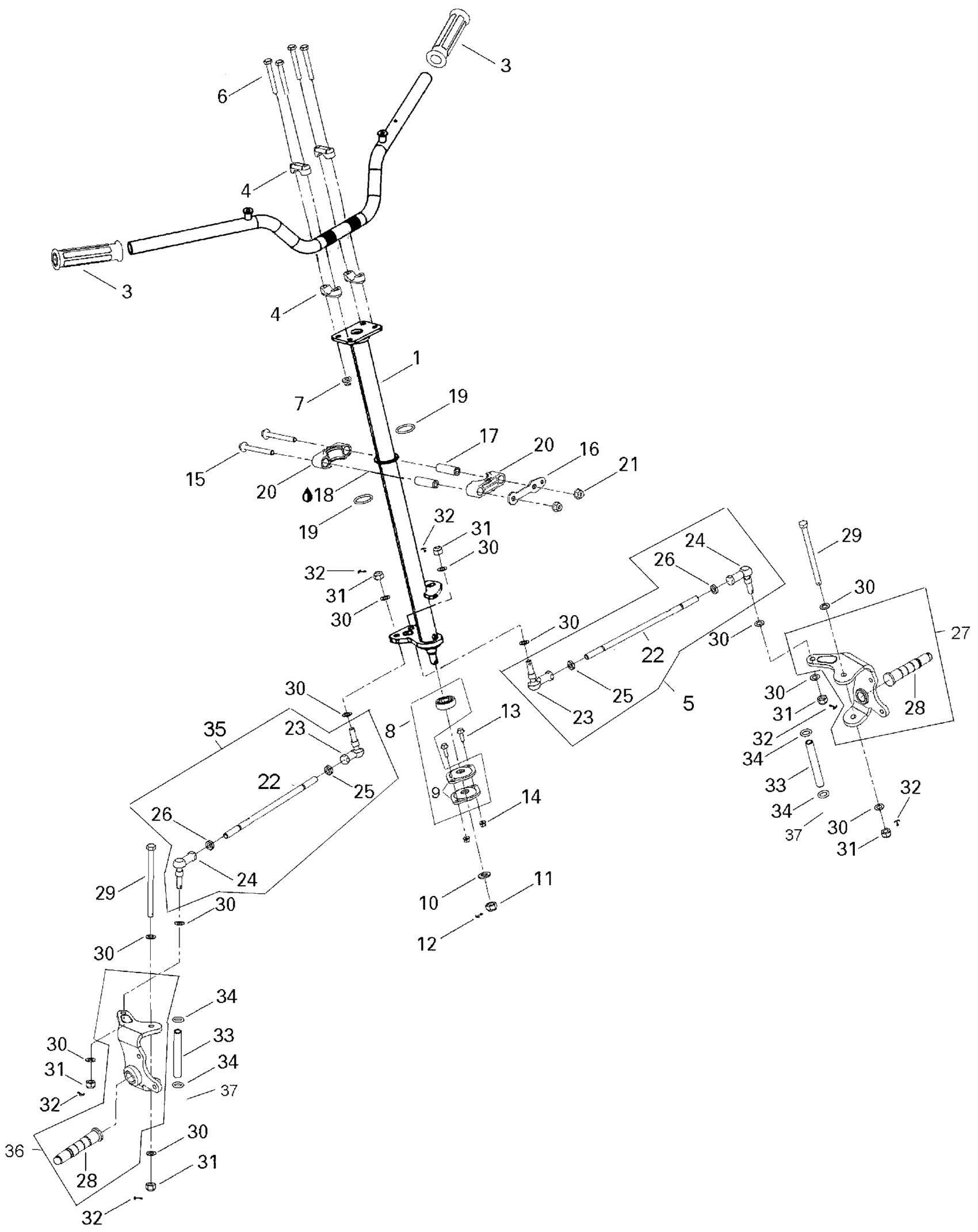

Can-Am Rally 175, 2006 07- Steering System EUROPE Diagram
#
1
Main Tube
A5110917900B
Unavailable
2
Handle Bar
A5310017900C
Unavailable
3
GRIP - Call your local BRP dealership
A53165179000
Unavailable
4
Steering Support
709400919
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Hex. Screw M8 X 55
207085544
Unavailable
7
Hex. Elastic Flange Nut M8
233281416
Unavailable
8
Ball Bearing
709400439
Unavailable
9
FLANGE, BEARING - Call your local BRP dealership
709400152
Unavailable
10
Flat Washer 12 mm
234021410
Unavailable
11
Hexagonal Nut M12
A9035012000G
Unavailable
12
Cotter Pin
211400017
Unavailable
13
Hex. Flange Screw M6 X 20
207662044
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
15
Hex. Flange Screw M8 X 70
207687044
Unavailable
16
STOPPER PLATE - Call your local BRP dealership
709400053
Unavailable
17
BUSHING - Call your local BRP dealership
709400072
Unavailable
18
Synthetic Grease, 400 G
293550010
Unavailable
19
O-Ring
293300068
Unavailable
20
Half Bushing
709400471
Unavailable
21
Hex. Flange Elastic Nut M8
233281414
Unavailable
22
Tie Rod
715900006
Unavailable
23
RH Ball Joint
709400148
Unavailable
24
LH Ball Joint
709400149
Unavailable
25
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
26
LH Threaded Hex. Jam Nut M10
250100016
Unavailable
27
LH Knuckle
709400108
Unavailable
28
WHEEL AXLE - Call your local BRP dealership
709400135
Unavailable
29
AXLE SCREW M10 X 145 - Call your local BRP dealership
709400150
Unavailable
30
Washer
503175800
Unavailable
31
Elastic Flange Nut M10
232501416
Unavailable
32
Cotter Pin
211400013
Unavailable
33
Pivot Bushing
709400110
Unavailable
34
O-RING - Call your local BRP dealership
414549700
Unavailable
35
Not Available As Spare Part - Friction Washer
Unavailable
36
RH Knuckle
709400109
Unavailable
37
WASHER - Call your local BRP dealership
A941051030008
Unavailable
