01- Cooling System

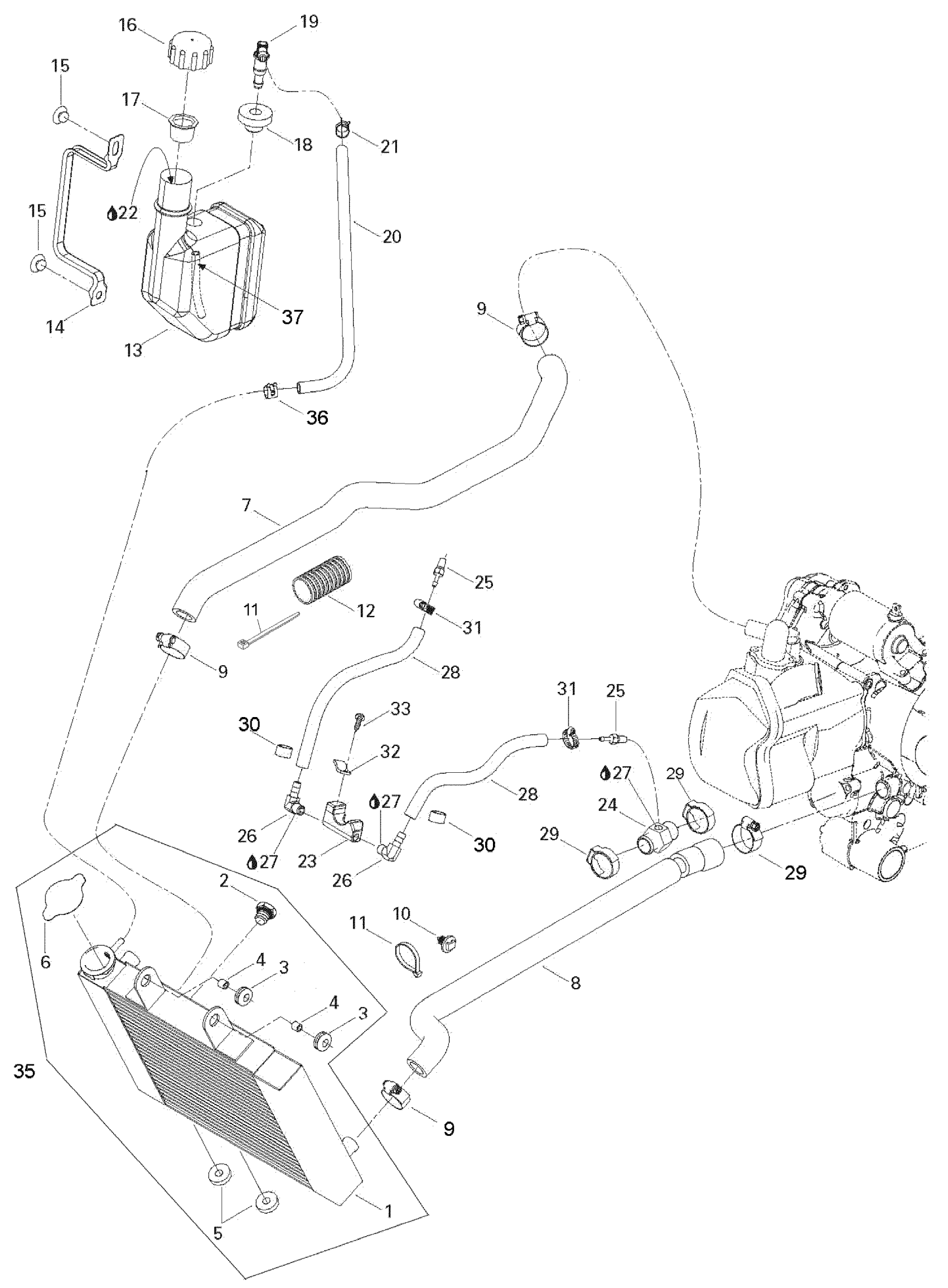

Can-Am Rally 175, 2006 01- Cooling System Diagram
#
1
Radiator
A19100179000
Unavailable
2
PLUG - Call your local BRP dealership
250500006
Unavailable
3
Oval Washer
705005156
Unavailable
4
Bushing
293900105
Unavailable
5
Grommet
709200285
Unavailable
6
PRESSURE CAP - Call your local BRP dealership
A19110179000
Unavailable
7
INLET RADIATOR HOSE - Call your local BRP dealership
709200066
Unavailable
8
OUTLET RADIATOR HOSE - Call your local BRP dealership
709200067
Unavailable
9
Tridon Gear Clamp
293650051
Unavailable
10
Mount Dart
293730040
Unavailable
11
Tie-Rap 180 mm
414115200
Unavailable
12
PROTECTION SHIELD - Call your local BRP dealership
709200031
Unavailable
13
COOLANT TANK - Call your local BRP dealership
A19200179000
Unavailable
14
TANK ANCHOR - Call your local BRP dealership
709200080
Unavailable
15
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
16
TANK CAP - Call your local BRP dealership
A19210179000
Unavailable
17
PROTECTION CAP - Call your local BRP dealership
709200205
Unavailable
18
Grommet
709200285
Unavailable
19
Elbow Male Connector
414580600
Unavailable
20
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
21
Spring Clamp
414554800
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Block Heater
709200096
Unavailable
24
ADAPTER - Call your local BRP dealership
709200097
Unavailable
25
Male Connector
293710037
Unavailable
26
Elbow Fitting
293700016
Unavailable
27
Was 293800013 Loctite 56765
219704454
Unavailable
28
Hose
219704549
Unavailable
29
Oetiker Clamp
293650141
Unavailable
30
Oetiker Clamp
293650125
Unavailable
31
Tridon Gear Clamp
293650170
Unavailable
32
Lock
709200116
Unavailable
33
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
35
Not Available As Spare Part - Friction Washer
Unavailable
36
Spring Clamp
414554800
Unavailable
37
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
38
Gemi Clamp | Not Illustrated
A9451430000
Unavailable
39
Gemi Clamp | Not Illustrated
A9451425000
Unavailable
