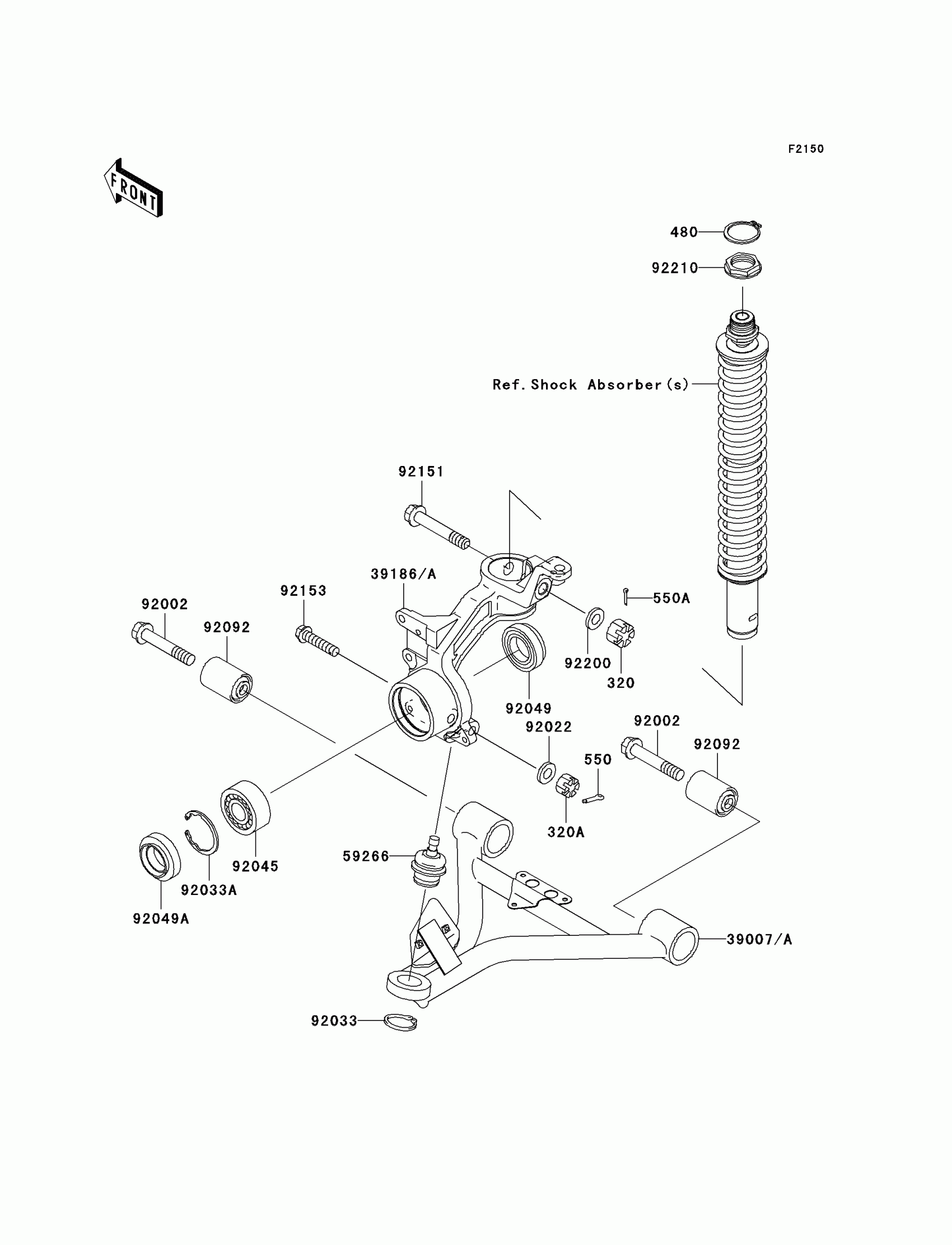

Kawasaki Prairie 400 Suspension(D1/D2) Diagram

Description

Price

320

NUT-CASTLE

320G1200

$3.47

320A

NUT-CASTLE

320H1000

$7.88

480

CIRCLIP-TYPE-C,32MM

480J3200

$1.77

550

PIN COTTER 2.0X15

550D2015

$1.04

550A

PIN-COTTER,3.0X25

550D3025

$0.58

39007

ARM-SUSP,FR,LH,LWR

39007-1259

$103.61

39007A

ARM-SUSP,FR,RH,LWR

39007-1260

$103.61

39186

KNUCKLE,FR,LH

39186-0008

$278.45

39186A

KNUCKLE,FR,RH

39186-0009

$252.90

59266

JOINT-BALL

59266-1098

$106.71

92002

BOLT,FLANGED,12X67

92002-1861

$11.16

92022

WASHER,10.2X16X1

92022-1829

$4.31

92033

RING-SNAP,30MM

92033-1218

$8.12

92033A

RING-SNAP,55MM

92033-1274

$9.43

92045

BEARING-BALL,DAC3055C2RKCD3

92045-1222

$99.08

92049

SEAL-OIL,MT038N1

92049-1476

$14.60

92049A

SEAL-OIL,SDD04 38 55 8

92049-1477

$17.50

92092

BUSHING-RUBBER

92092-1076

$32.02

92151

BOLT,FLANGED,12X65.5

92151-1101

$13.29

92153

BOLT,FLANGED,10X44

92153-0579

$4.22

92200

WASHER,12.3X23X2.3

92200-1004

$4.69

92210

NUT,35MM

92210-1066

$19.42
