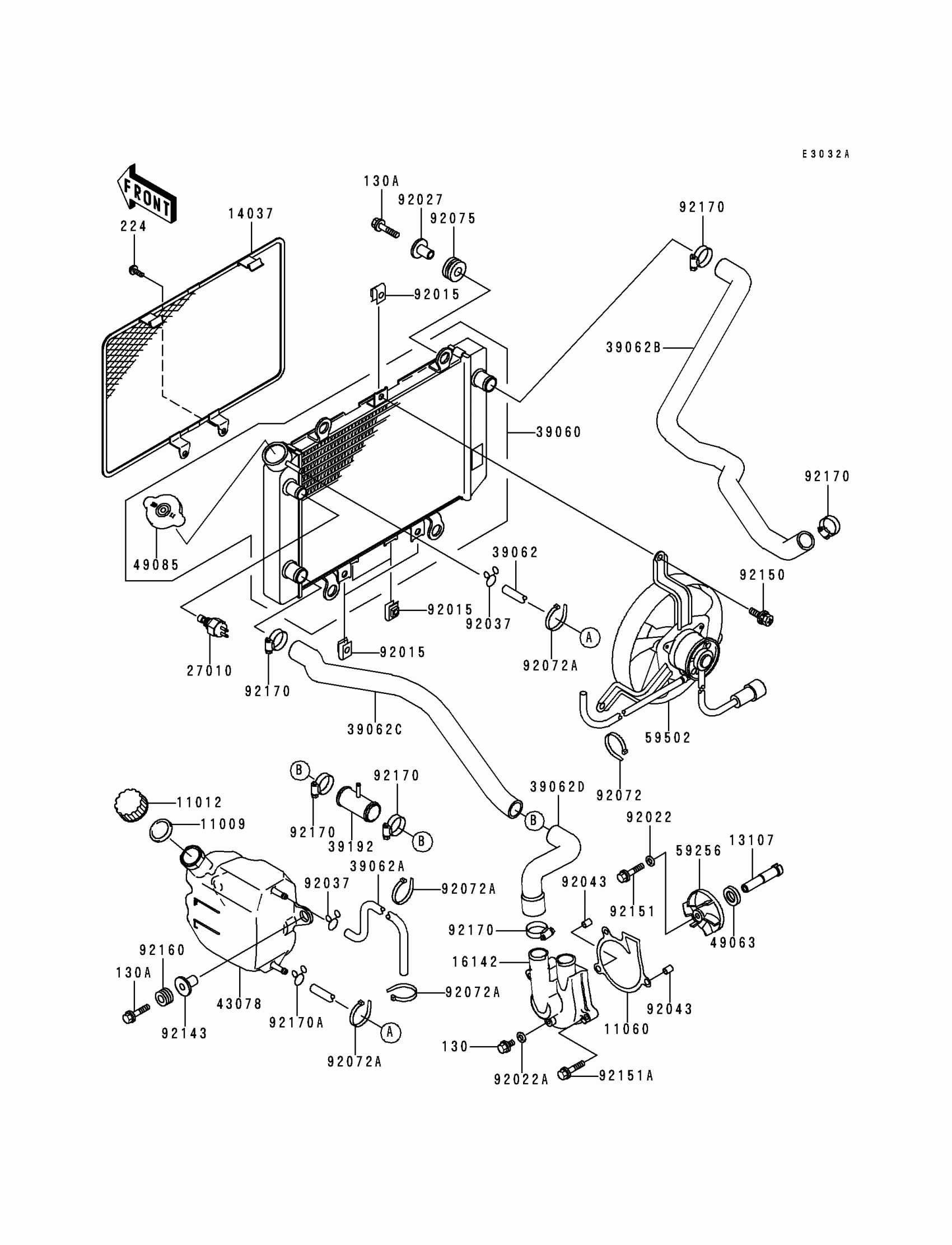

Kawasaki Prairie 400 Radiator(VF400AE520628-) Diagram

#

Description
Price

130

BOLT-FLANGED

130J0610

$2.33

130A

BOLT-FLANGED,6X25

130J0625

$2.62

224

SCREW-PAN-WP-CROS,6X12

224C0612

$4.15

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

11060

GASKET,WATER PUMP COVER

11060-1730

$7.64

13107

SHAFT

13107-1349

Unavailable

14037

SCREEN

14037-1221

$73.28

16142

COVER-PUMP

16142-1137

$77.80

27010

SWITCH,FAN

27010-1202

$98.81

39060

RADIATOR

39060-1150

$641.36

39062

HOSE-COOLING,5.5X10.5X1500

39062-1675

$10.63

39062A

HOSE-COOLING,5.5X10.5X700

39062-1676

$6.71

39062B

HOSE-COOLING,HEAD- RADIATOR

39062-1701

Unavailable

39062C

HOSE-COOLING

39062-1740

$38.80

39062D

HOSE-COOLING

39062-1741

$29.78

39192

PIPE-WATER

39192-1020

$16.42

43078

RESERVOIR

43078-1154

$49.95

49063

SEAL-MECHANICAL,WATER PUMP

49063-1002

$20.06

49085

CAP-ASSY-PRESSURE

49085-1066

$37.42

59256

IMPELLER

59256-1073

$36.12

59502

FAN-ASSY

59502-1123

$663.18

92015

NUT

92015-1487

$4.80

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,6.2X11X1

92022-304

$3.65

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-147

$7.34

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=186

92072-056

$5.00

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92143

COLLAR

92143-1353

$8.58

92150

BOLT,6X12

92150-1186

$3.37

92151

BOLT,6X22

92151-1074

$5.59

92151A

BOLT,6X30

92151-1139

$2.79

92160

DAMPER,10X20X12

92160-1167

$4.69

92170

CLAMP

92170-1497

$16.83

92170A

CLAMP

92170-2042

$1.30
