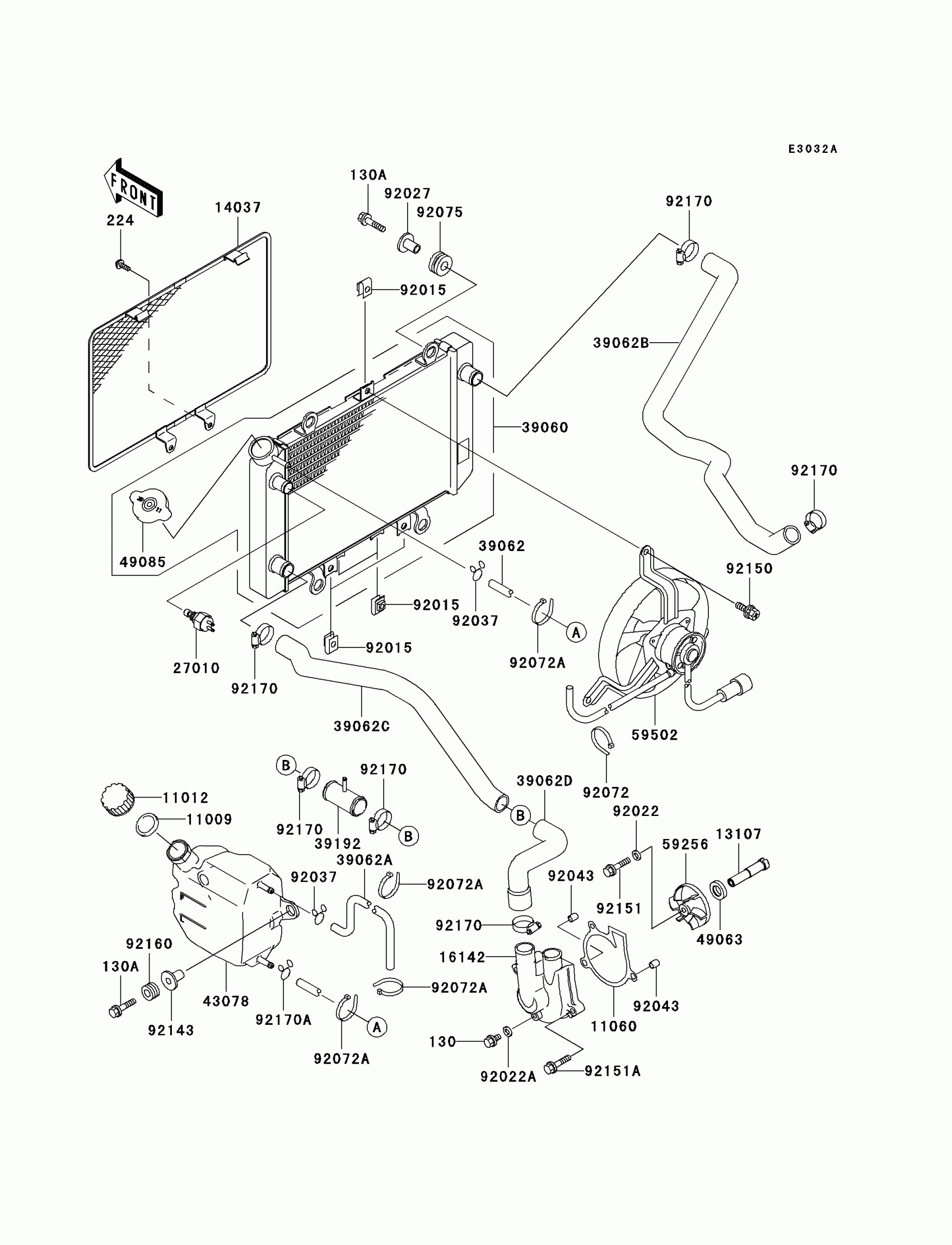

Kawasaki Prairie 400 4X4 Radiator(VF400AE515523-) Diagram
#
130
BOLT-FLANGED
130J0610
$2.33
130A
BOLT-FLANGED,6X25
130J0625
$2.62
224
SCREW-PAN-WP-CROS,6X12
224C0612
$4.15
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11060
GASKET,WATER PUMP COVER
11060-1730
$7.64
13107
SHAFT
13107-1349
Unavailable
14037
SCREEN
14037-1221
$73.28
16142
COVER-PUMP
16142-1137
$77.80
27010
SWITCH,FAN
27010-1202
$98.81
39060
RADIATOR
39060-1150
$641.36
39062
HOSE-COOLING,5.5X10.5X1500
39062-1675
$10.63
39062A
HOSE-COOLING,5.5X10.5X700
39062-1676
$6.71
39062B
HOSE-COOLING,HEAD- RADIATOR
39062-1701
Unavailable
39062C
HOSE-COOLING
39062-1740
$38.80
39062D
HOSE-COOLING
39062-1741
$29.78
39192
PIPE-WATER
39192-1020
$16.42
43078
RESERVOIR
43078-1154
$49.95
49063
SEAL-MECHANICAL,WATER PUMP
49063-1002
$20.06
49085
CAP-ASSY-PRESSURE
49085-1066
$37.42
59256
IMPELLER
59256-1073
$36.12
59502
FAN-ASSY
59502-1123
$663.18
92015
NUT
92015-1487
$4.80
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92022A
WASHER,6.2X11X1
92022-304
$3.65
92027
COLLAR,L=13.1
92027-251
Unavailable
92037
CLAMP,TUBE
92037-147
$7.34
92043
PIN,DOWEL,8X10
92043-1302
$1.03
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=186
92072-056
$5.00
92075
DAMPER RUBBER,RR FENR
92075-209
$4.69
92143
COLLAR
92143-1353
$8.58
92150
BOLT,6X12
92150-1186
$3.37
92151
BOLT,6X22
92151-1074
$5.59
92151A
BOLT,6X30
92151-1139
$2.79
92160
DAMPER,10X20X12
92160-1167
$4.69
92170
CLAMP
92170-1497
$16.83
92170A
CLAMP
92170-2042
$1.30
