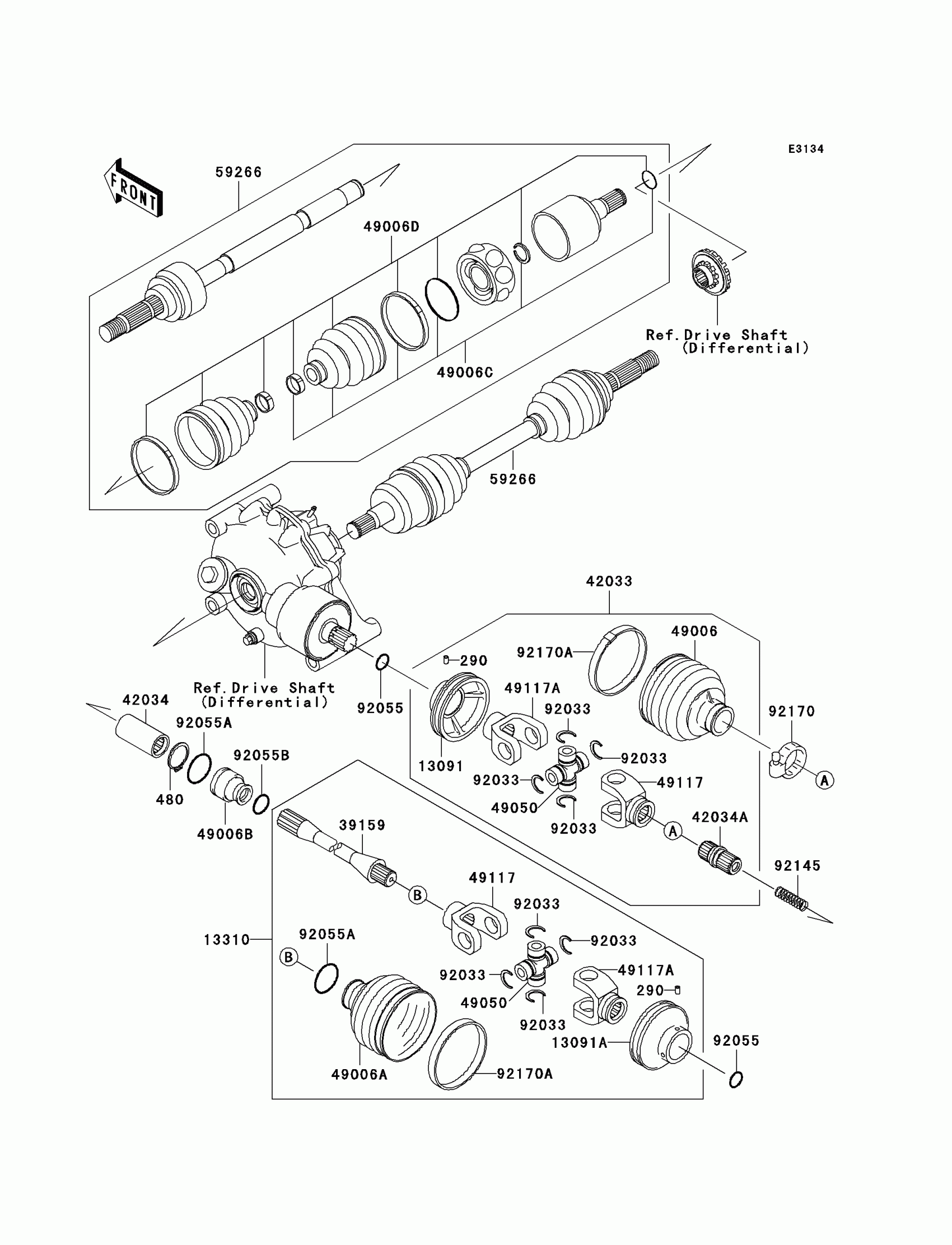

Kawasaki Prairie 400 4X4 Drive Shaft(Front) Diagram

Description

Price

290

SCREW-SET-SOCKET

290Q0508

$3.74

480

CIRCLIP-TYPE-C,22MM

480J2200

$5.00

13091

HOLDER

13091-1863

$104.27

13091A

HOLDER

13091-1892

$93.02

13310

SHAFT-ASSY

13310-1019

Unavailable

39159

SHAFT-DRIVE

39159-1105

Unavailable

42033

COUPLING-ASSY

42033-1188

$116.18

42034

COUPLING

42034-1103

Unavailable

42034A

COUPLING

42034-1127

$59.88

49006

BOOT,COUPLING

49006-1293

$38.16

49006A

BOOT,DRIVE SHAFT

49006-1294

$30.26

49006B

BOOT,DRIVE SHAFT

49006-1295

$16.92

49006C

BOOT,JOINT BALL,INSIDE

49006-1322

$69.19

49006D

BOOT,JOINT BALL,OUTSIDE

49006-1324

$117.21

49050

SPIDER

49050-1057

$108.94

49117

YOKE,DRIVE

49117-1083

$60.76

49117A

YOKE,DRIVE

49117-1084

$60.76

59266

JOINT-BALL

59266-1101

$693.04

92033

RING-SNAP

92033-1283

$7.64

92055

RING-O,19.5X1.5

92055-055

$4.31

92055A

RING-O,19.5X3.0

92055-1451

$4.69

92055B

RING-O,15X3.0

92055-1531

$9.89

92145

SPRING

92145-1055

Unavailable

92170

CLAMP

92170-1678

$8.20

92170A

CLAMP

92170-1727

$16.81
