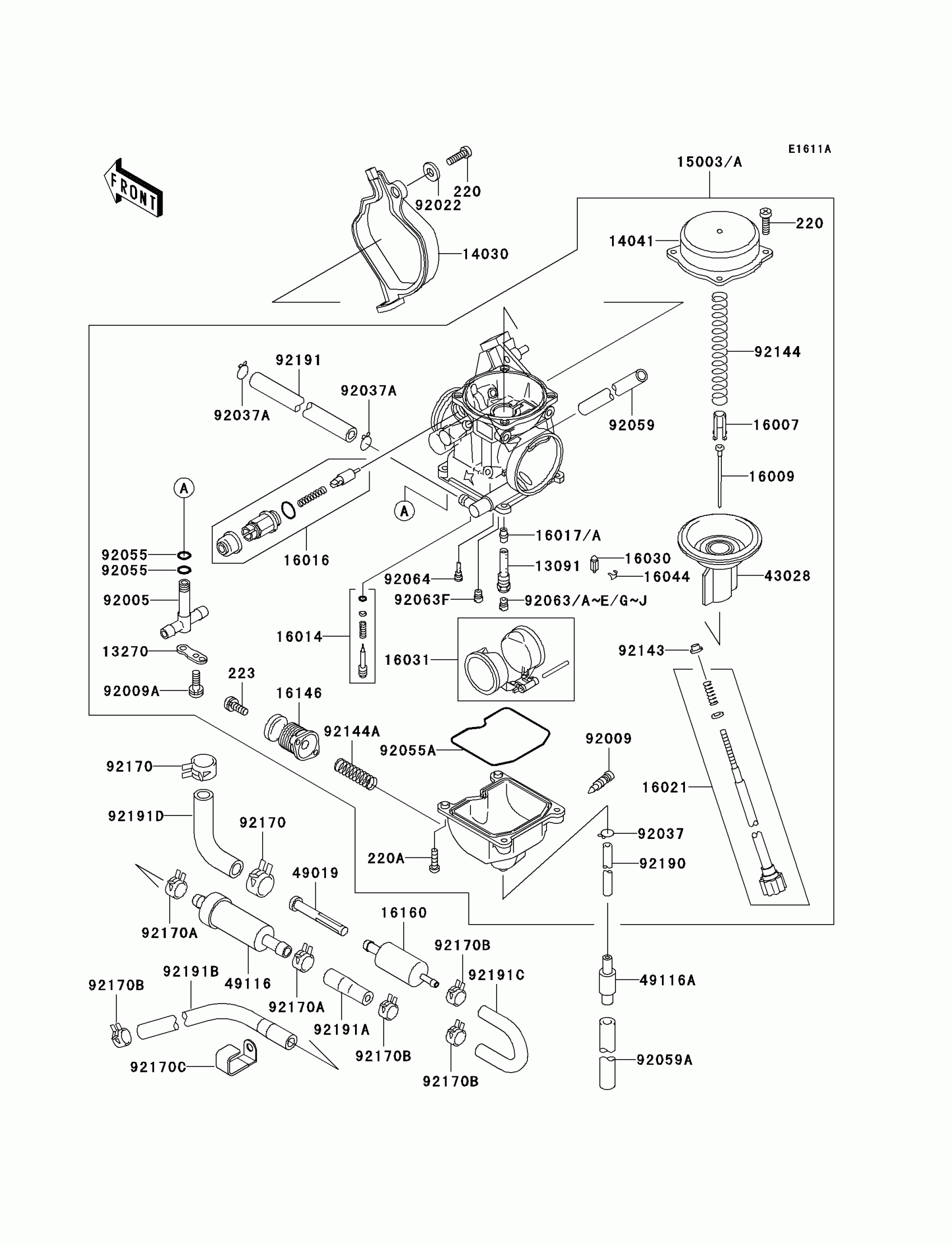

Kawasaki Prairie 400 4X4 Carburetor(VF400AE515523-) Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1259

$33.38

13270

PLATE,FITTING STAY

13270-1063

$29.08

14030

COVER-CARBURETOR

14030-1054

$14.86

14041

COVER-COMP,MIXING,INSIDE

14041-1061

$72.14

16007

SEAT-SPRING,VALVE

16007-1134

$42.04

16009

NEEDLE-JET,N3RC

16009-1928

Unavailable

16014

SCREW-PILOT AIR

16014-1080

$22.09

16016

PLUNGER,STARTER

16016-1101

$58.52

16021

SCREW-THROTTLE STOP

16021-1213

$75.23

16030

VALVE-FLOAT

16030-1007

$47.99

16031

FLOAT

16031-1077

$53.59

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16146

COVER-ASSY,PUMP

16146-1129

$34.85

43028

DIAPHRAGM,VALVE

43028-1081

$186.28

49116A

VALVE-ASSY

49116-1126

$20.77

92005

FITTING

92005-1235

$11.88

92009

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92009A

SCREW

92009-1713

$3.86

92022

WASHER,5.2X13X1

92022-1380

$4.31

92037

CLAMP,TUBE

92037-1201

$4.60

92037A

CLAMP,TUBE

92037-1531

$5.52

92055

RING-O,4.5X1.5

92055-1427

$6.34

92055A

RING-O,FLOAT CHAMBER

92055-1518

$24.43

92059

TUBE,6.5X9.5X260

92059-1598

$33.38

92059A

TUBE,7X10X100

92059-1736

$4.46

92063

JET-MAIN,#140

92063-1013

$14.10

92063A

JET-MAIN,#135

92063-1014

$14.10

92063B

JET-MAIN,#138

92063-1015

$14.10

92063C

JET-MAIN,#142

92063-1016

$14.10

92063E

JET-MAIN,#145

92063-1017

$14.10

92063F

JET-MAIN,#85

92063-1023

$15.76

92063H

JET-MAIN,#148

92063-1324

$14.10

92063I

JET-MAIN,#150

92063-1330

$14.10

92063J

JET-MAIN,#152

92063-1331

$14.79

92064

JET-PILOT,#35

92064-1101

$17.03

92143

COLLAR

92143-1589

$4.11

92144

SPRING,VACUUM VALVE

92144-1066

$13.23

92144A

SPRING,PUMP

92144-1672

$10.67

92190

TUBE,4.5X8X330

92190-1557

$15.47

92191

TUBE,6.5X11.5X130

92191-1144

$25.35

220

SCREW PAN HEAD 4X8

220B0408

$0.67

220A

SCREW-PAN-CROS,4X14

220D0414

$4.60

223

SCREW-PAN-WS-CROS

223C0412

$4.32

15003

CARBURETOR-ASSY

15003-1401

$564.92

15003A

CARBURETOR-ASSY

15003-1415

$564.92

16017

JET-NEEDLE

16017-1319

$51.49

16017A

JET-NEEDLE,#6

16017-1393

$50.62

16160

BODY,FILTER

16160-1151

$9.43

49019

FILTER-WATER

49019-1068

$5.13

49116

VALVE-ASSY

49116-1081

$112.64

92063D

JET-MAIN,#145

92063-1017

$14.10

92063G

JET-MAIN,#148

92063-1324

$14.10

92170

CLAMP

92170-1491

$7.45

92170A

CLAMP

92170-1492

$5.00

92170B

CLAMP

92170-1493

$5.00

92170C

CLAMP

92170-1863

$24.86

92191A

TUBE

92191-1223

$3.08

92191B

TUBE

92191-1224

$12.53

92191C

TUBE

92191-1248

$12.53

92191D

TUBE

92191-1249

$6.03
