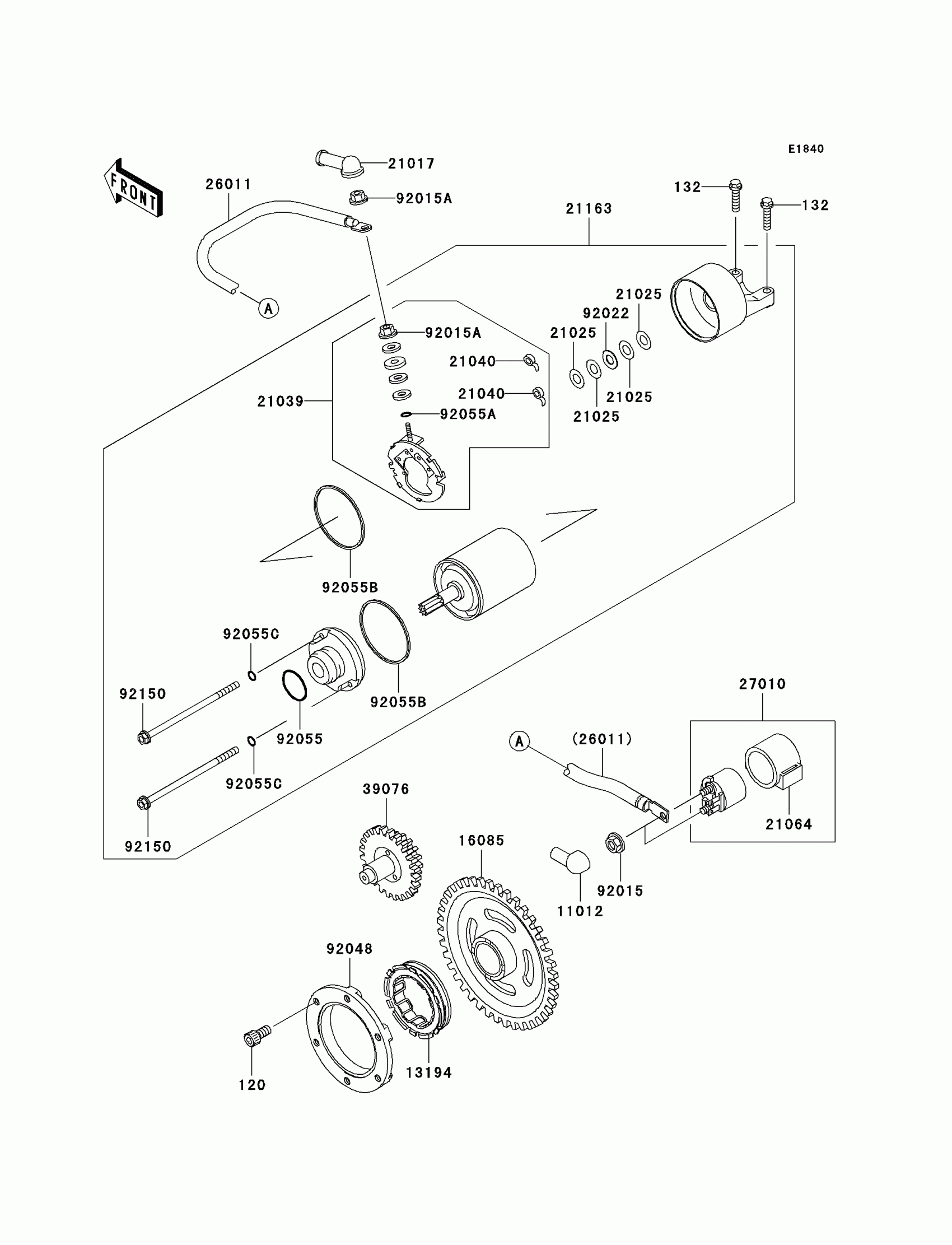

Kawasaki Prairie® 360 4X4 Starter Motor(A6F-A8F) Diagram

Description

Price

120

BOLT-SOCKET,8X16

120CA0816

$4.45

132

BOLT-FLANGED-SMALL,6X25

132BD0625

$5.39

11012

CAP,TERMINAL

11012-1354

$10.19

13194

CLUTCH-ONEWAY

13194-1094

$126.13

16085

GEAR,STARTER

16085-1346

$122.56

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21025

WASHER,9.1X18X0.2

21025-011

Unavailable

21039

BRUSH

21039-1066

$32.07

21040

SPRING-BRUSH

21040-1057

$8.42

21064

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

21163

STARTER-ELECTRIC

21163-1328

$590.56

26011

WIRE-LEAD,STARTER MOTOR

26011-1709

$49.07

27010

SWITCH,MAGNETIC

27010-1098

Unavailable

39076

LIMITER,STARTER

39076-1066

$150.20

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.8

92022-1132

$6.22

92048

RACE,ONE WAY CLUTCH

92048-0002

$108.96

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O

92055-1550

$9.91

92055C

RING-O

92055-1551

$4.69

92150

BOLT,FLANGED,4X80

92150-1969

$7.33
