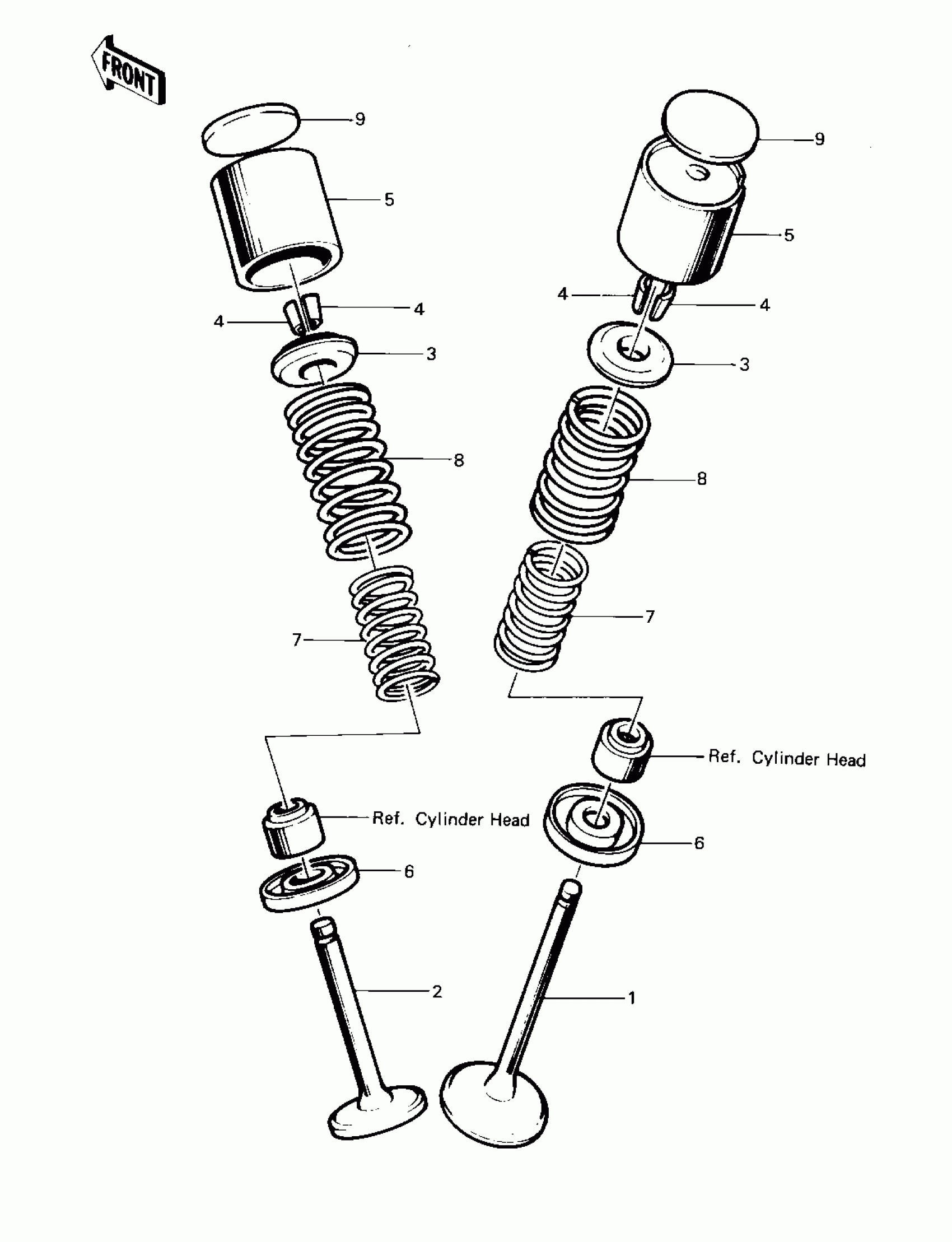

Kawasaki Police 1000 VALVES Diagram
#
Description
Price
1
VALVE-INTAKE
12004-1013
Unavailable
2
VALVE-EXHAUST
12005-1011
Unavailable
3
RETAINER-VALVE SPRING
12009-005
Unavailable
4
COLLET,RETAINER
12011-004
Unavailable
5
TAPPET
12032-1002
Unavailable
6
SEAT-SPRING,VALVE
16007-1024
Unavailable
7
SPRING-ENGINE VALVE,INNER
49078-1001
Unavailable
8
SPRING-ENGINE VALVE,OUTER
49078-1002
Unavailable
9
SHIM,T=2.00
12037-001
Unavailable
9
SHIM,T=2.05
12037-002
Unavailable
9
SHIM,T=2.10
12037-003
Unavailable
9
SHIM,T=2.15
12037-004
Unavailable
9
SHIM,T=2.20
12037-005
Unavailable
9
SHIM,T=2.25
12037-006
Unavailable
9
SHIM,T=2.25
12037-006
Unavailable
9
SHIM,T=2.30
12037-007
Unavailable
9
SHIM,T=2.35
12037-008
Unavailable
9
SHIM,T=2.40
12037-009
Unavailable
9
SHIM,T=2.45
12037-010
Unavailable
9
SHIM,T=2.50
12037-011
Unavailable
9
SHIM,T=2.55
12037-012
Unavailable
9
SHIM,T=2.60
12037-013
Unavailable
9
SHIM,T=2.65
12037-014
Unavailable
9
SHIM,T=2.70
12037-015
Unavailable
9
SHIM,T=2.75
12037-016
Unavailable
9
SHIM,T=2.80
12037-017
Unavailable
9
SHIM,T=2.85
12037-018
Unavailable
9
SHIM,T=2.90
12037-019
Unavailable
9
SHIM,T=2.95
12037-020
Unavailable
9
SHIM,T=3.00
12037-021
Unavailable
9
SHIM,T=3.05
12037-022
Unavailable
9
SHIM,T=3.10
12037-023
Unavailable
9
SHIM,T=3.15
12037-024
Unavailable
9
SHIM,T=3.20
12037-025
Unavailable
