SWING ARM/SHOCK ABSORBERS ('79-'81 C2/C3

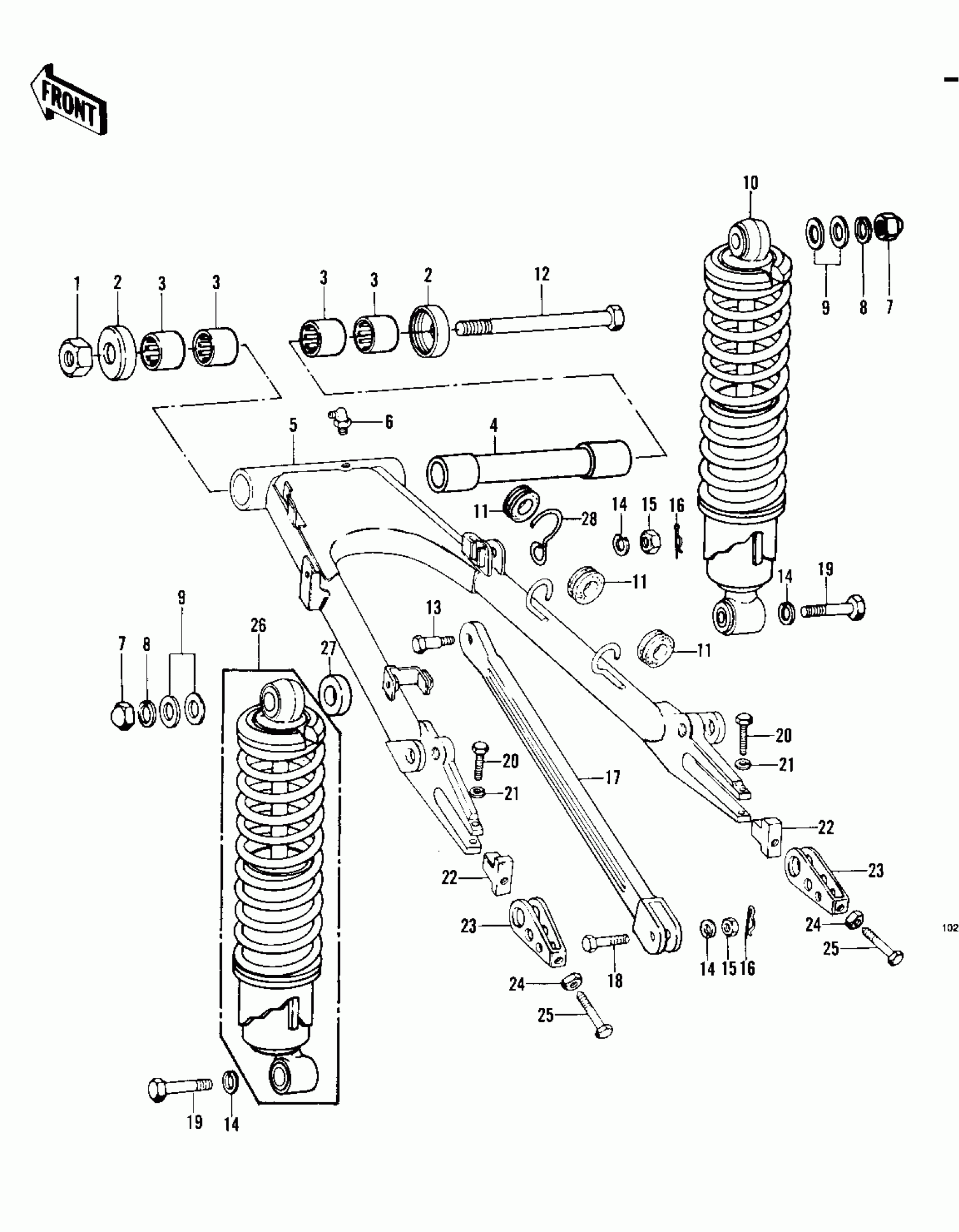

Kawasaki Police 1000 SWING ARM/SHOCK ABSORBERS ('79-'81 C2/C3 Diagram
#
Description
Price
1
NUT-SELF LOCKING
92019-012
$25.70
2
CAP,SWING ARM
33035-009
Unavailable
3
BEARING-NEEDLE,HK2216
92046-1115
$20.02
4
SLEEVE,SWING ARM
42036-1011
Unavailable
5
SWING ARM
33001-1008
$239.47
6
GREASE NIPPLE
92005-002
Unavailable
7
NUT,CAP,12MM
92020-014
$9.45
8
WASHER-SPRING,12MM
461F1200
$0.96
9
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
10
SHOCKABSORBER,RR
45014-4013
$434.22
11
GROMMET,HOSE CLAMP
43064-007
$5.52
12
SHAFT-SWING ARM
33032-036
$64.39
13
BOLT,HEX HEAD,10X39
92003-218
Unavailable
14
WASHER SPRING 10MM
461F1000
$0.67
15
NUT-HEX-FINE,10MM
314B1000
$0.67
16
PIN-SNAP,8MM
554A0800
$1.26
17
TORQUE LINK,REAR HUB
43007-049
$52.17
18
BOLT,10X47
92001-1145
Unavailable
19
BOLT HEX HEAD 10X35
113N1035
$9.14
20
BOLT
110G0840
$7.62
21
WASHER SPRING 8MM
461F0800
$0.40
22
STOPPER,CHAIN ADJUSTER
33044-001
$40.02
23
ADJUSTER-CHAIN
33040-066
$30.91
24
NUT-HEX-FINE,10MM
315B1000
$0.58
25
BOLT,10X50
92001-143
$19.74
26
SHOCKABSORBER,RR
45014-4013
$434.22
27
SPACER,LH REAR SHOCK
92026-4001
Unavailable
28
CLAMP,BRAKE HOSE
92037-1061
Unavailable
