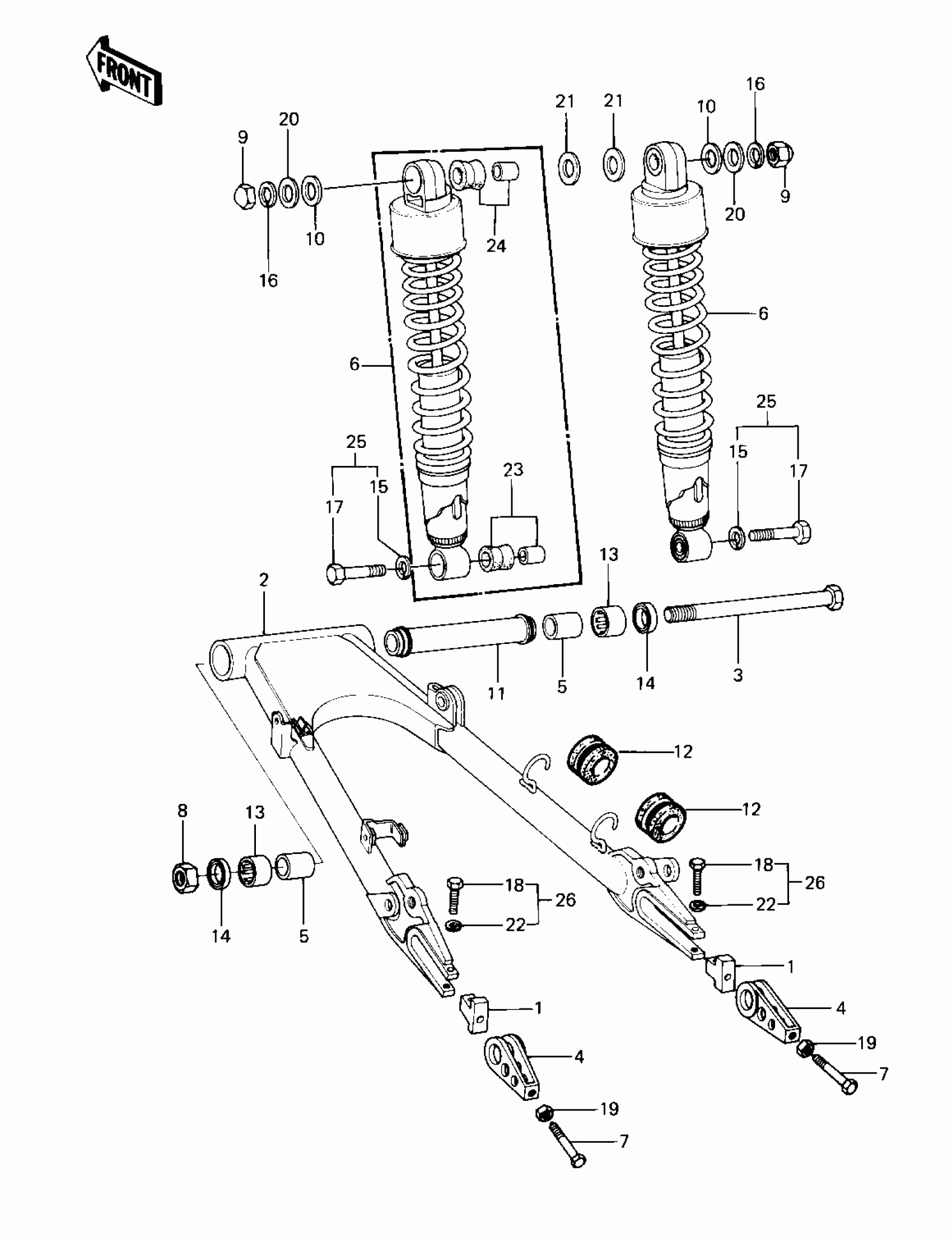

Kawasaki Police 1000 SWING ARM/SHOCK ABSORBERS Diagram

#

Description

Price

1

STOPPER,CHAIN ADJUSTER

33044-001

Unavailable

2

ARM-COMP-SWING

33001-4005

Unavailable

2

ARM-COMP-SWING

33001-4006

Unavailable

3

SHAFT-SWING ARM

33032-036

Unavailable

4

ADJUSTER-CHAIN

33040-066

Unavailable

5

SLEEVE,SWING ARM

42036-1040

Unavailable

6

SHOCKABSORBER,RR

45014-1174

Unavailable

7

BOLT,10X50

92001-143

Unavailable

8

NUT-SELF LOCKING

92019-012

Unavailable

9

NUT,CAP,12MM

92020-014

Unavailable

10

WASHER,12.4X28X2.3

92022-1239

Unavailable

11

COLLAR,SWING ARM,L=15

92027-1301

Unavailable

11

COLLAR,SWING ARM

92027-1561

Unavailable

12

GROMMET,HOSE CLAMP

43064-007

Unavailable

13

BEARING-NEEDLE,BHTM2530-1

92046-1035

Unavailable

14

SEAL-OIL,MH25334

92049-1060

Unavailable

15

WASHER SPRING 10MM

461F1000

Unavailable

16

WASHER-SPRING,12MM

461F1200

Unavailable

17

BOLT HEX HEAD 10X35

113N1035

Unavailable

18

BOLT,8X40

115G0840

Unavailable

19

NUT-HEX-FINE,10MM

315B1000

Unavailable

20

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

21

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

22

WASHER SPRING 6MM

461F0600

Unavailable

23

DAMPER,SHOCKABSORBER,LWR

45017-019

Unavailable

24

DAMPER,SHOCKABSORBER

92075-1141

Unavailable

25

BOLT-FINE-WS

160N1035

Unavailable

26

BOLT-UPSET-WS-SMALL

183G0840

Unavailable
