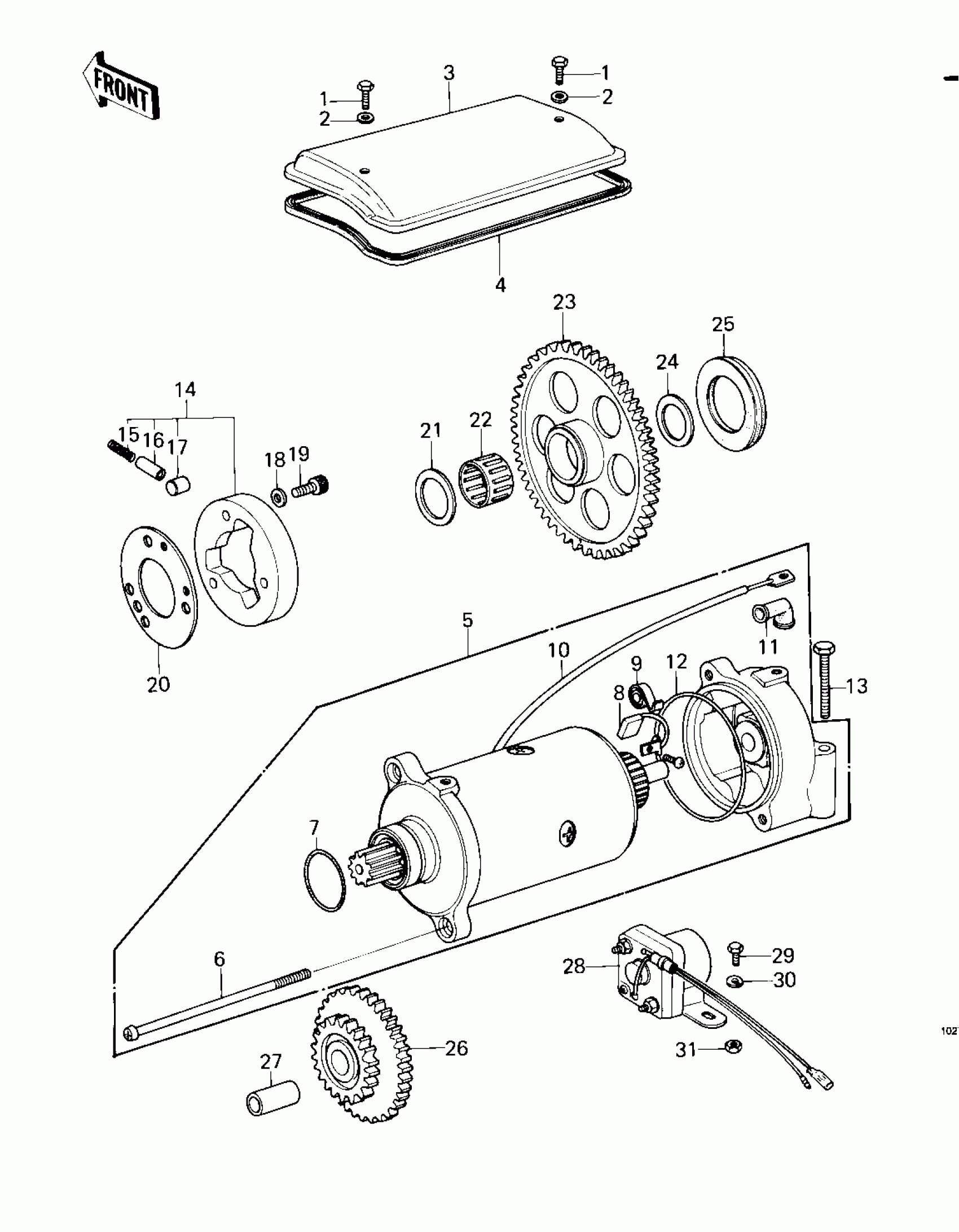

Kawasaki Police 1000 STARTER MOTOR/STARTER CLUTCH ('79-'81 C2 Diagram

#

Description
Price

1

BOLT (6X10)

110R0610

$3.44

2

WASHER,PLAIN,6MM

410D0600

$0.77

3

COVER,STARTING MOTOR

21165-001

Unavailable

4

GASKET,STARTER COVER

21166-001

$36.70

5

MOTOR ASSY,STARTING

21163-1006

$495.44

6

SCREW,PAN HEAD,5X110

21015-005

$9.81

7

RING-O,STARTER MOTOR,25MM

21027-004

$9.91

8

BRUSH,CARBON

21039-003

$40.76

9

SPRING-BRUSH

21040-003

Unavailable

10

WIRE,STARTING MOT LE

26011-1036

$44.60

11

GROMMET,STARTER TERMINAL

21017-017

$9.43

12

RING-O,STARTER MOTOR

21027-003

Unavailable

13

BOLT,EXCLUSIVE

92001-1456

$4.90

14

CLUTCH-ASSY-ONEWAY

13193-1006

$178.91

15

SPRING

92081-110

$4.76

16

PIN

92043-087

$12.76

17

ROLLER,15X14.4

92122-001

$11.60

18

WASHER,8.5X13.5X2

92022-1108

$4.31

19

BOLT-SOCKET,8X16

120P0816

$4.15

20

PLATE,CLUTCH STARTER

92026-112

Unavailable

21

SPACER,25X38X1.0

92026-1031

$10.35

22

BEARING-NEEDLE,K253020S

92046-1022

$22.97

23

GEAR,STARTER CLUTCH

16085-1012

Unavailable

24

SPACER,25X34X2.0

92026-1033

$7.58

25

DAMPER,T=6.3

92075-1129

Unavailable

25

DAMPER,T=7.3

92075-1130

Unavailable

25

DAMPER,T=8.3

92075-1131

Unavailable

26

GEAR-SPUR,STARTER MOTOR

21167-002

Unavailable

27

PIN

13002-007

$18.23

28

SWITCH ASSY,MAGNETIC

27010-1023

Unavailable

29

BOLT-UPSET,6X12

112G0612

$1.45

30

WASHER SPRING 6MM

461F0600

$0.69

31

NUT,LOCK 6MM

92017-014

$7.51
