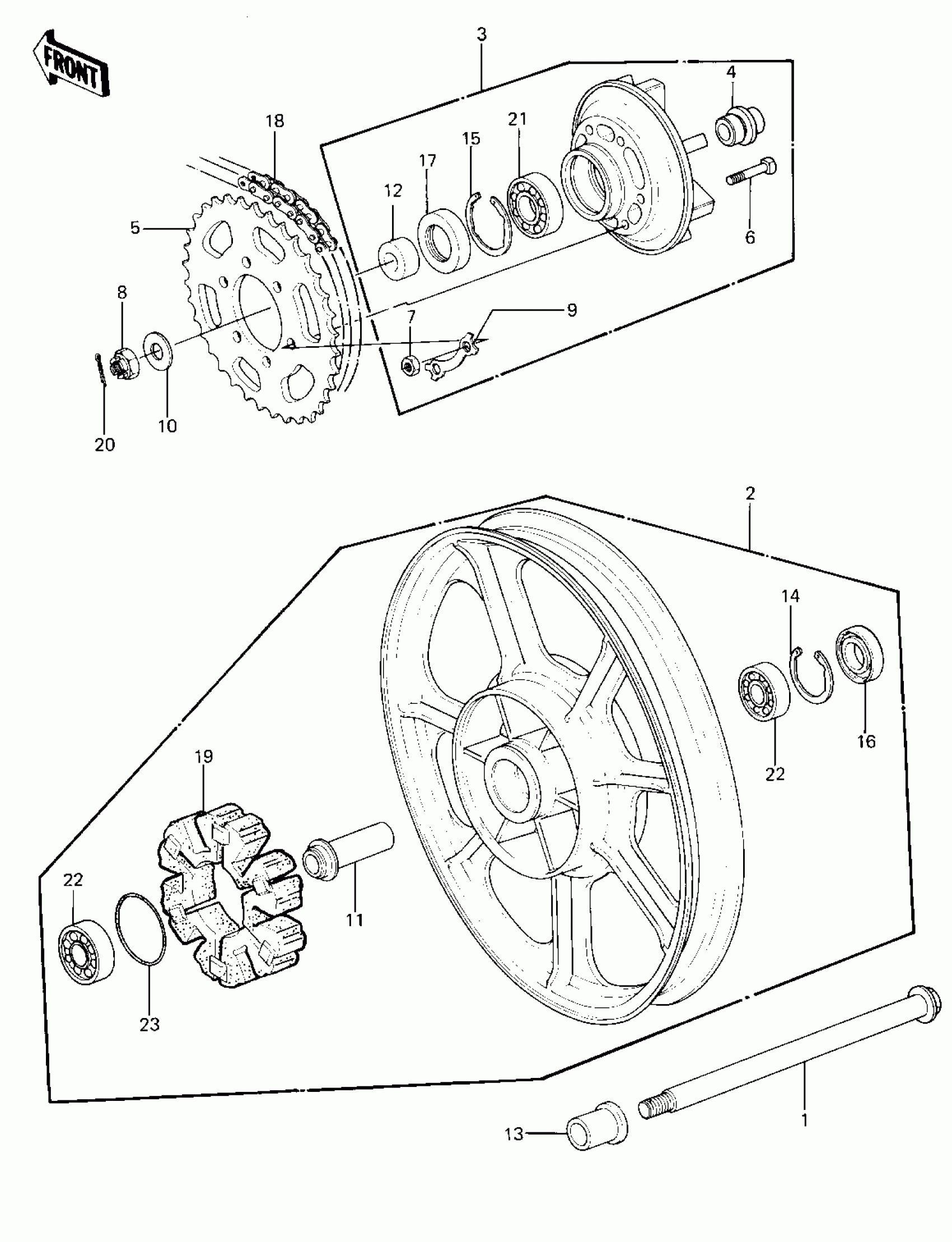

Kawasaki Police 1000 REAR WHEEL/HUB/CHAIN Diagram

#

Description

Price

1

AXLE,RR,L=300

41068-1087

Unavailable

1

AXLE,RR,L=300

41068-1087

Unavailable

2

WHEEL-ASSY,RR,SOLID,B

41073-1141-21

Unavailable

3

COUPLING-ASSY,RR HUB

42033-1024

Unavailable

4

SLEEVE,L=33

42036-1039

Unavailable

5

SPROCKET-HUB,41T

42041-1058

Unavailable

6

BOLT,10X41

92001-161

Unavailable

7

NUT,10MM

42045-005

Unavailable

8

NUT,CASTLE,18MM

42045-018

Unavailable

9

WASHER,LOCK

92022-1212

Unavailable

10

WASHER,20.3X34X4.5

92022-248

Unavailable

11

COLLAR,L=89.5

92027-1286

Unavailable

12

COLLAR,20X40X16.5

92027-1287

Unavailable

13

COLLAR,L=31

92027-1288

Unavailable

14

RING-SNAP,52MM

92033-1043

Unavailable

15

RING-SNAP,62MM

92033-1044

Unavailable

16

SEAL-OIL,28X52X5

92049-1061

Unavailable

17

SEAL-OIL,AJN40627

92050-027

Unavailable

18

DR CHAIN 630X96

92057-1053

Unavailable

18

DR CHAIN EK630 98L

92057-1152

Unavailable

19

DAMPER,RR HUB SHOCK,"1000"

42014-033

Unavailable

20

PIN-COTTER,4.0X35

550D4035

Unavailable

21

BALL BEARING,#6206

601B6206

Unavailable

22

BEARING-BALL,#6304ZZC3

601B6304ZZ

Unavailable

23

O RING,65MM

671B2565

Unavailable
