Description

Price

1

CYLINDER ASSY,REAR

43015-1016

$361.02

2

CAP,OIL CUP

43026-004

Unavailable

3

PLATE-MASTER CYLINDE

43027-001

Unavailable

4

DIAPHRAGM

43028-003

Unavailable

5

'O'RING

43079-002

Unavailable

6

BOLT

92001-1073

$12.02

7

SPRING ASSY, RETURN

43018-002

$39.46

8

CUP, PRIMARY

43019-002

$25.99

9

PISTON ASSY

43072-004

$96.81

10

STOPPER,PISTON

43022-002

$10.26

11

RING,ROD STOPPER

43058-004

$7.64

12

DUST COVER

43024-003

$25.46

13

ROD,BRAKE

43011-1007

$58.65

14

BOLT

92003-198

Unavailable

15

PIN-COTTER,2.0X20

550D2020

$0.96

16

NUT CASTLE

321B0800

$4.87

17

BOLT,OIL,L=23

92002-1888

$5.48

18

WASHER,10.5X15X1.5

43067-001

$2.15

19

BOLT,FLANGED,8X35

92001-1577

Unavailable

20

WASHER SPRING 8MM

461F0800

$0.40

21

HOSE,REAR MASTER CYL

43059-031

Unavailable

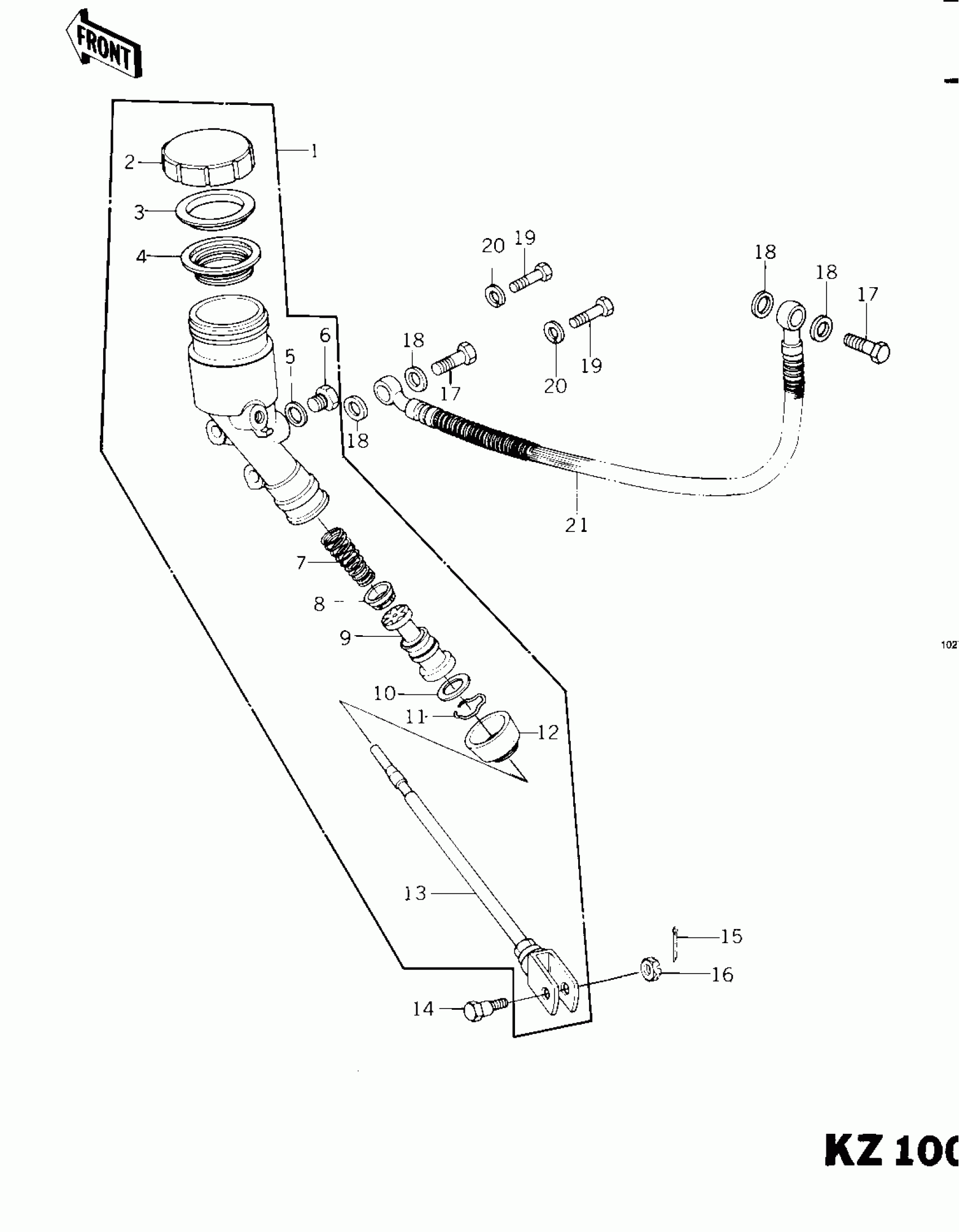

Kawasaki Police 1000 REAR MASTER CYLINDER (KZ1000-C2) Diagram

CYLINDER ASSY,REAR

CAP,OIL CUP

PLATE-MASTER CYLINDE

DIAPHRAGM

'O'RING

BOLT

SPRING ASSY, RETURN

CUP, PRIMARY

PISTON ASSY

STOPPER,PISTON

RING,ROD STOPPER

DUST COVER

ROD,BRAKE

BOLT

PIN-COTTER,2.0X20

NUT CASTLE

BOLT,OIL,L=23

WASHER,10.5X15X1.5

BOLT,FLANGED,8X35

WASHER SPRING 8MM

HOSE,REAR MASTER CYL
