Description

Price

1

GASKET,EXHAUST PIPE

11009-1906

$11.06

2

INSERT,EXHAUST PIPE

92027-170

$13.51

3

HOLDER,EXHAUST PIPE,

18069-1005

$61.29

4

HOLDER,EXHAUST PIPE,

18069-1004

Unavailable

5

NUT,LOCK,8MM

92017-013

$10.35

6

PIPE,EXHAUST,L.H INN

18049-1018

$111.02

7

PIPE,EXHAUST,R.H INN

18049-1019

$111.02

8

GASKET,MANIFOLD EXHAUST

11060-1068

$28.82

9

CLAMP,MUFFLER

92037-1258

$15.89

10

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

11

WASHER SPRING 8MM

461F0800

$0.40

12

PIPE,MUFFLER CONNECT

18039-025

Unavailable

13

GASKET,EXHAUST PIPE CONNECTING

11009-1718

$27.27

14

CLAMP,CONNECTING PIPE

92037-1221

$11.71

15

MUFFLER,L.H.

18001-4001

$365.26

16

MUFFLER,R.H.

18001-4002

$365.26

17

BOLT-HEX HEAD,10X60

113N1060

$11.86

18

WASHER PLAIN 10MM

410B1000

$0.58

19

WASHER,PLAIN

92022-328

$5.48

20

BUSHING,MUFFLER FITT

92092-010

$16.18

21

NUT,LOCK,10MM

92019-021

$6.11

22

BOLT (6X10)

110R0610

$3.44

23

BOLT,8X30

92001-1379

Unavailable

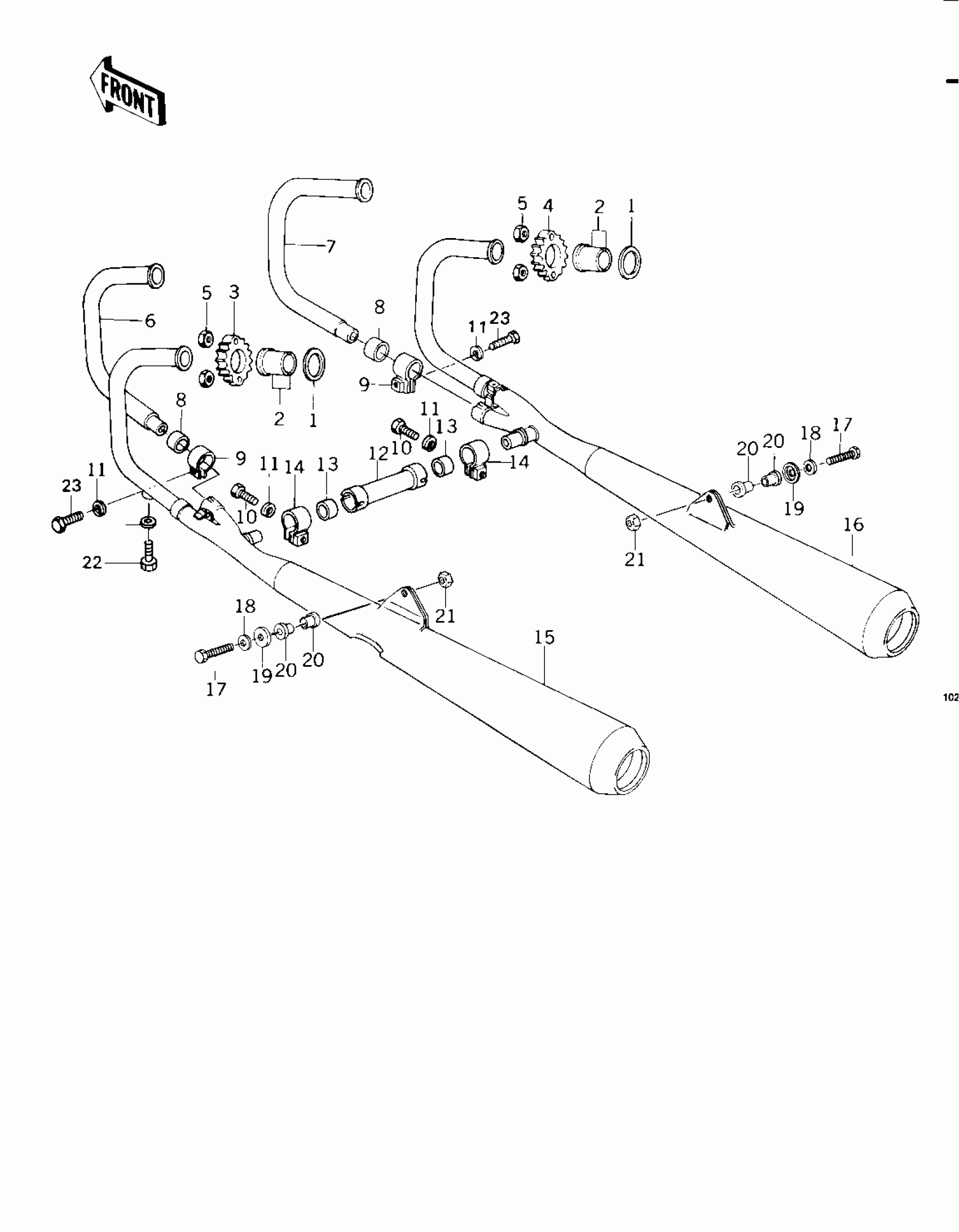

Kawasaki Police 1000 MUFFLERS ('79-'81 C2/C3/C4) Diagram

GASKET,EXHAUST PIPE

INSERT,EXHAUST PIPE

HOLDER,EXHAUST PIPE,

HOLDER,EXHAUST PIPE,

NUT,LOCK,8MM

PIPE,EXHAUST,L.H INN

PIPE,EXHAUST,R.H INN

GASKET,MANIFOLD EXHAUST

CLAMP,MUFFLER

BOLT-SMALL-UPSET 8X25

WASHER SPRING 8MM

PIPE,MUFFLER CONNECT

GASKET,EXHAUST PIPE CONNECTING

CLAMP,CONNECTING PIPE

MUFFLER,L.H.

MUFFLER,R.H.

BOLT-HEX HEAD,10X60

WASHER PLAIN 10MM

WASHER,PLAIN

BUSHING,MUFFLER FITT

NUT,LOCK,10MM

BOLT (6X10)

BOLT,8X30
