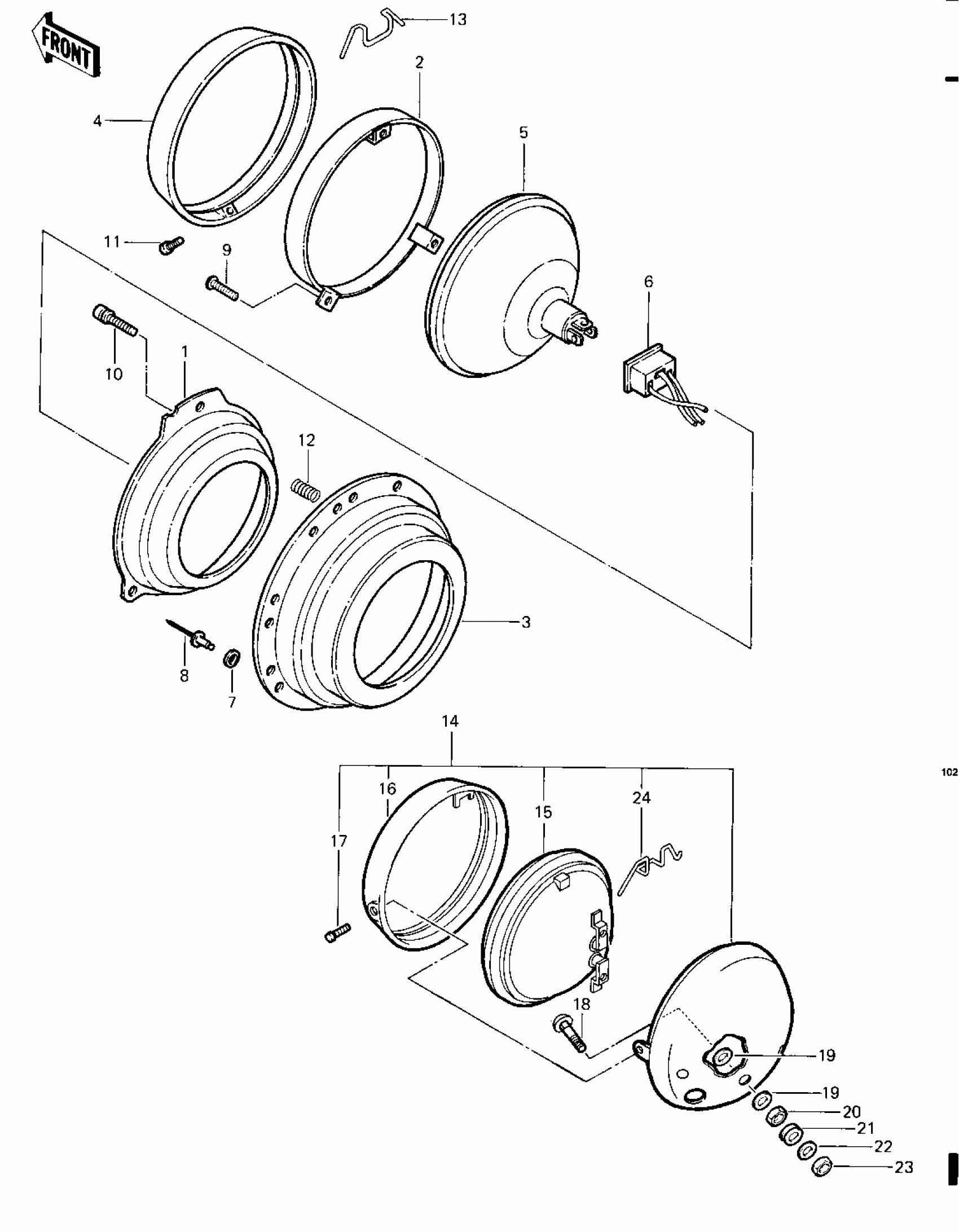

Kawasaki Police 1000 HEADLIGHT/PURSUIT LIGHTS (KZ1000-C4) Diagram

#

Description
Price

1

HOLDER,HEAD LAMP

13091-4007

$32.19

2

RETAINER,HEAD LAMP

14020-4002

$17.64

3

BODY-COMP-HEAD LAMP

23005-4003

$19.80

4

RIM-LAMP,HEAD

23006-4002

$43.98

5

SEALED BEAM UNIT

23007-1006

Unavailable

6

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

7

UNAVAILABLE IN PRICE BOOK

92002-3539

Unavailable

8

RIVET-BLIND REG

534YW0608

$1.00

9

SCREW,PAN HEAD

92009-4007

$2.26

10

SCREW,PAN HEAD

92009-4008

$2.26

11

SCREW,4X14

92009-4009

$2.26

12

SPRING

92081-4014

$4.57

13

SPRING,CLIP

92081-4015

$2.13

14

LAMP-ASSY,PURSUIT,RED

23016-4004

$151.09

15

LENS-COMP,PURSUIT LAMP,RED

23007-1001

$51.69

15

LENS-COMP,PURSUIT LAMP,BLUE

23007-1002

Unavailable

15

LENS-COMP,PURSUIT LAMP,AMBER

23007-1003

Unavailable

16

RIM-LAMP,PURSUIT LAMP

23006-4004

$30.42

17

SCREW,4X8

92009-4011

Unavailable

18

BOLT,CARRIAGE

92001-4015

$0.80

19

WASHER PLAIN 8MM

411B0800

$0.93

20

NUT 6MM

312B0600

$0.72

21

GROMMET

92071-056

$4.26

22

WASHER,6.5X20X1.6

92022-125

$1.40

23

NUT,LOCK,6MM

92019-008

$4.26

24

RETAINER,CLIP

14020-1096

$2.61
