GEAR CHANGE MECHANISM ('79-'81 C2/C3/C4)

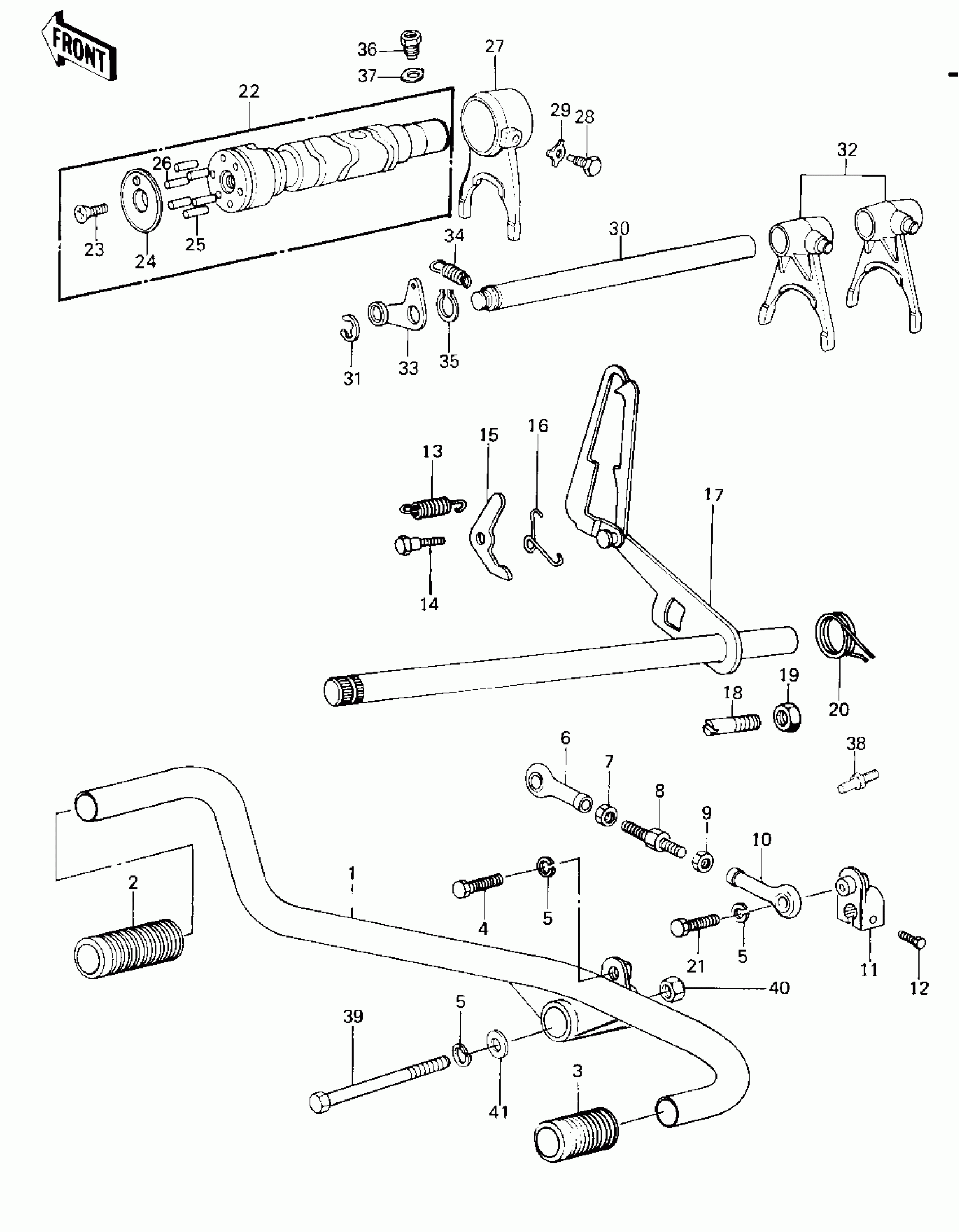

Kawasaki Police 1000 GEAR CHANGE MECHANISM ('79-'81 C2/C3/C4) Diagram
#
1
PEDAL,GEAR CHANGE
13242-4001
Unavailable
2
DAMPER,KICK PEDAL
13063-004
$10.94
3
DAMPER RUBB,GEAR CHNG
92075-1021
Unavailable
4
BOLT-SMALL-UPSET 8X25
115G0825
$5.05
5
WASHER SPRING 8MM
461F0800
$0.40
6
ROD END,TIE LH FEMAL
39112-1004
Unavailable
7
NUT,LH THREAD
92015-1006
$1.30
8
BOLT,GEAR CHG LINKAG
92001-1038
Unavailable
9
NUT,RH THREAD
92015-1005
$1.03
10
ROD END,TIE RH FEMAL
39112-1003
Unavailable
11
LEVER-CHANGE,PEDAL
13156-4001
$52.58
12
BOLT-UPSET,6X20
112G0620
$2.12
13
SPRING,NEUTRAL POSITION
92081-051
$5.29
14
BOLT,CHANGE DRUM LEVER
92150-1450
$5.35
15
LEVER,GEAR CHNG DRUM
13168-024
Unavailable
16
SPRING
92083-018
$9.80
17
LEVER ASSY GEAR CHNG
13161-029
Unavailable
18
BOLT,NEUTRAL POSITIO
92001-1301
$15.47
19
NUT 6MM
312B0600
$0.72
20
SPRING,CHG PEDL RTRN
92083-028
Unavailable
21
BOLT,FLANGED,8X35
92001-1577
Unavailable
22
DRUM ASSY,GEAR CHANG
13239-1015
Unavailable
23
SCREW-CSK-CROS,6X20
221B0620
$2.40
24
HOLDER,CHANGE DRUM PIN
13091-1088
$27.54
25
PIN,DOWEL,4X15.8
92042-014
$0.43
26
PIN,DOWEL,4X17.8
92042-020
$5.05
27
FORK,SELECTOR,3RD
13140-046
Unavailable
28
PIN SELECT FORK GUIDE
92043-016
Unavailable
29
WASHER LOCK 10MM
92031-001
$11.45
30
ROD,SHIFT
49047-1006
$30.21
31
CIRCLIP-TYPE-C,12MM
480J1200
$0.62
32
UNAVAILABLE IN PRICE BOOK
13440-045
Unavailable
33
LEVER,NEUTRAL POSITI
13236-1020
Unavailable
34
SPRING,NEUTRAL POSITION
92081-051
$5.29
35
CIRCLIP-TYPE-E,6MM
482J6000
$0.69
36
BOLT,CHG DRUM POSITN
92001-1052
$17.09
37
WASHER,LOCK
92024-047
Unavailable
38
BOLT,RETURN SPRING
92001-1401
$4.69
39
BOLT-SMALL-UPSET,8X1
115B08105
$4.82
40
NUT CASTLE
321B0800
$4.87
41
WASHER PLAIN 8MM
410B0800
$0.93
