FAIRING

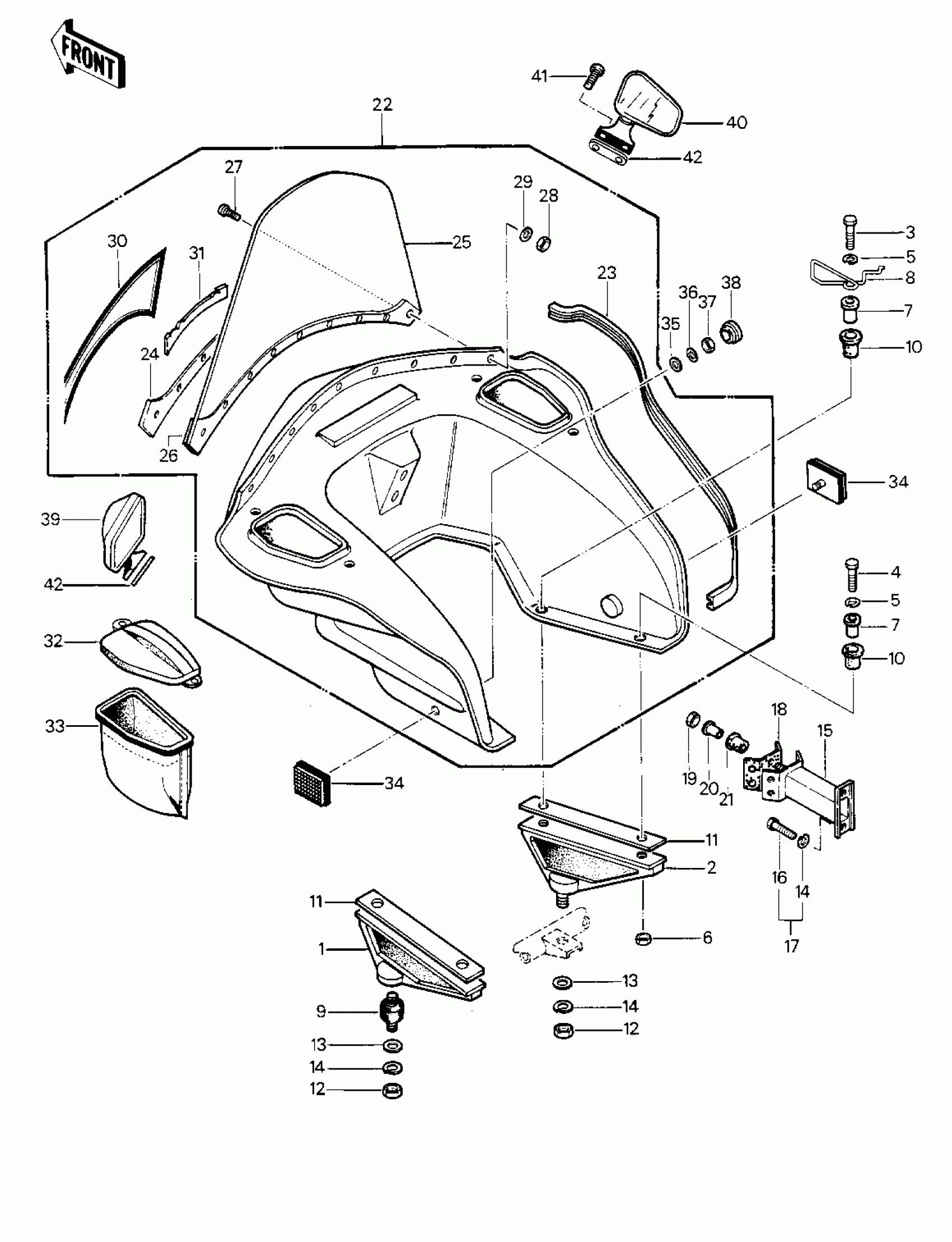

Kawasaki Police 1000 FAIRING Diagram
#
1
BRACKET,COWLING,LH
11034-4144
Unavailable
2
BRACKET,COWLING,RH
11034-4143
Unavailable
3
BOLT-SMALL,8X30
114N0830
Unavailable
4
BOLT HEX HEAD
114N0835
Unavailable
5
WASHER SPRING 8MM
461F0800
Unavailable
6
NUT,LOCK,8MM
92015-1124
Unavailable
7
COLLAR
92027-4015
Unavailable
8
CLAMP,COWLING HARNESS
92037-4005
Unavailable
9
DAMPER,COWLING BRACKET
92075-4013
Unavailable
10
DAMPER
92075-4020
Unavailable
11
DAMPER,COWLING BRACKET
92075-4033
Unavailable
12
NUT-UNF INSERT
350BA1000
Unavailable
13
WASHER PLAIN 8MM
411B0800
Unavailable
14
WASHER SPRING 8MM
461F0800
Unavailable
15
BRACKET,COWLING,FR
11034-4089
Unavailable
16
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
17
BOLT-UPSET-WS-SMALL
183G0816
Unavailable
18
DAMPER,COWLING FITTING
92075-1179
Unavailable
19
NUT,LOCK,8MM
92015-1124
Unavailable
20
COLLAR
92027-4015
Unavailable
21
DAMPER
92075-4020
Unavailable
22
COWLING ASSY
55027-4001-8C
Unavailable
22
COWLING-ASSY,J.WHITE
55027-4003-8C
Unavailable
23
TRIM,COWLING
53044-4001
Unavailable
24
PLATE,WINDSHIELD
13169-4014
Unavailable
25
WINDSHIELD
39154-4003
Unavailable
26
ADHESIVE
56042-4003
Unavailable
27
SCREW,PLASTIC,5X28
92009-4005
Unavailable
28
NUT,PLASTIC,5MM
92015-4014
Unavailable
29
WASHER,PLAIN,5MM,PLASTIC
92022-4015
Unavailable
30
PATTERN,PINSTRIPE,LH
56027-4056
Unavailable
30
PATTERN,PINSTRIPE,RH
56027-4055
Unavailable
31
EMBLEM,GOLD
56014-4011
Unavailable
32
COVER,BAG
14025-4013
Unavailable
33
BAG
56008-4003
Unavailable
34
REFLECTOR-REFLEX
28012-1003
Unavailable
35
WASHER-PLAIN,5MM
411B0500
Unavailable
36
WASHER SPRING 5MM
461F0500
Unavailable
37
NUT-HEX
311B0500
Unavailable
38
PLUG
92074-027
Unavailable
39
MIRROR-ASSY
56001-4002
Unavailable
40
MIRROR-ASSY
56001-4003
Unavailable
41
SCREW
92009-4006
Unavailable
42
DAMPER,REAR VIEW MIRR
92075-1230
Unavailable
