CARBURETOR PARTS ('79-'81 C2/C3/C4)

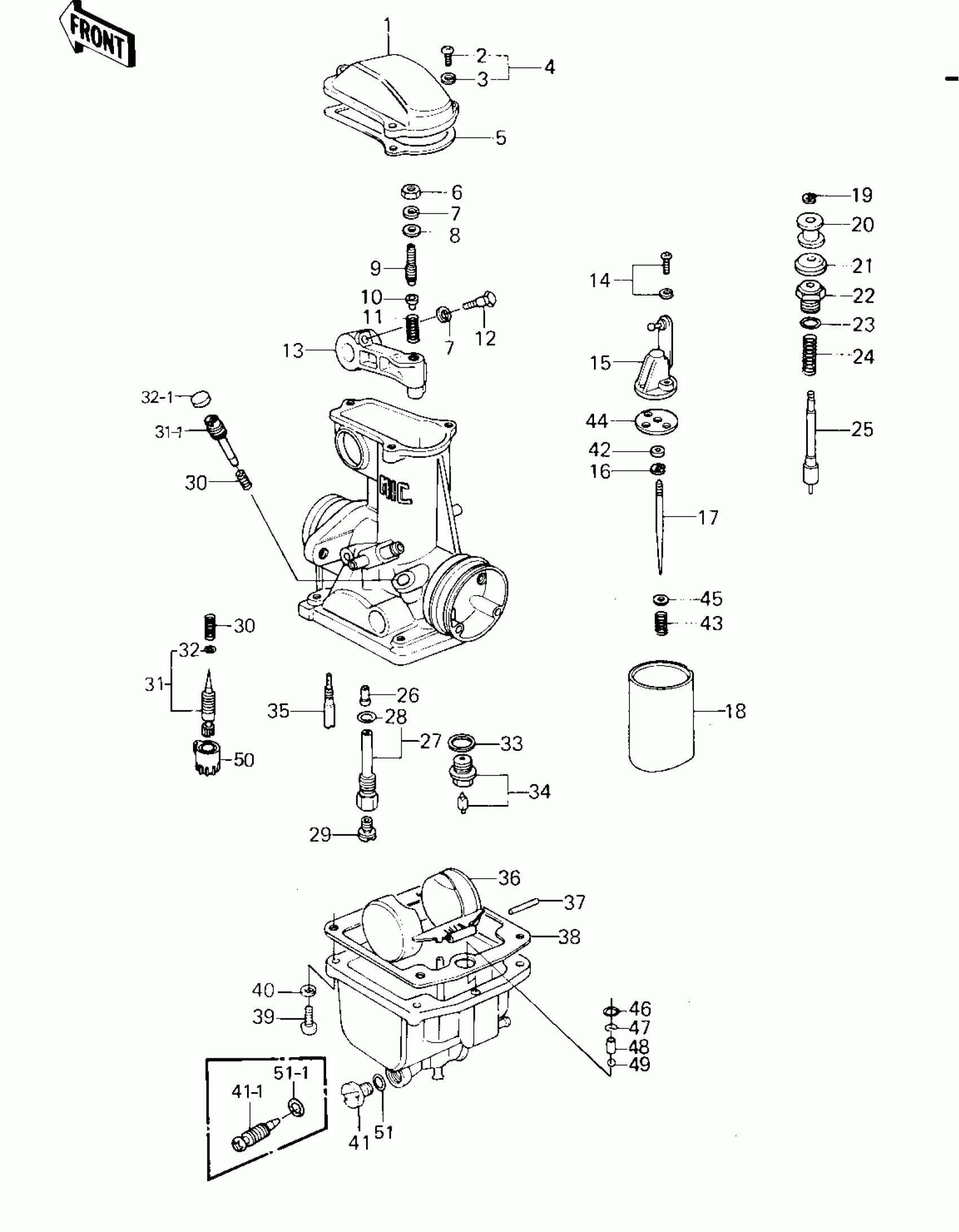

Kawasaki Police 1000 CARBURETOR PARTS ('79-'81 C2/C3/C4) Diagram
#
1
TOP,MIXING CHAMBER
16005-027
$24.02
2
SCREW-PAN-CROS
220B0414
$4.28
3
WASHER SPRING 4MM
461F0400
Unavailable
4
SCREW-PAN-WS-CROS
223B0414
$1.52
5
GASKET,CHAMBER TOP
16019-031
$43.53
6
NUT,5MM
16003-013
$9.40
6
NUT-HEX,5MM
312B0500
$0.46
7
WASHER SPRING 5MM
461F0500
$0.69
8
WASHER,PLAIN
16039-016
Unavailable
9
SCREW,SLOTTED
16046-012
Unavailable
10
SEAT-SPRING
16057-002
Unavailable
11
SPRING
16040-026
$6.62
12
BOLT,HEX HEAD,5X14
16067-006
Unavailable
13
LEVER,THROTTLE
39075-1001
Unavailable
14
SCREW,PAN HEAD,3X14
16033-031
Unavailable
15
BRACKET,THROTTLE VLV
11034-1238
Unavailable
16
CLAMP,E-TYPE
16008-010
$9.21
17
JET NEEDLE,5CN29
16009-1046
Unavailable
18
VALVE,THROTTLE,CA2.0
16025-1026
$73.73
19
CIRCLIP
16076-003
$8.92
20
COLLAR
16073-014
$10.47
21
CAP,STARTER PLUNGER
16039-015
$6.88
22
CAP,STARTER PLUNGER
16012-015
Unavailable
23
O RING,9MM
670B1509
$3.65
24
SPRING,STARTER PLUG
16013-008
Unavailable
25
PLUNGER,STARTER
16016-021
Unavailable
26
NEEDLE JET,AO-4
16017-1035
Unavailable
27
PIPE,BLEED
49122-1001
Unavailable
28
"0" RING,MAIN JET COV
16038-016
$3.02
29
MAIN JET,#A102.5
92063-1028
$17.74
29
MAIN JET,#A100
92063-1033
Unavailable
29
MAIN JET,#A105R
92063-1042
Unavailable
29
JET-MAIN NO 107.5R
92063-073
Unavailable
30
SPRING,PILOT AIR SCREW
16022-007
$8.13
31-1
SCREW,PILOT ADJUSTIN
16014-1020
$18.22
32-1
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
$5.05
33
WASHER FLOAT VLV SEAT
16029-004
$3.89
34
FLOAT VALVE ASSY
16030-027
Unavailable
35
PILOT JET,#A15
92064-1017
Unavailable
36
FLOAT
16031-031
$172.74
37
PIN,FLOAT
16032-003
$6.57
38
GASKET,FLOAT CHAMBER
11009-1562
$24.64
39
SCREW PAN HEAD 4X16
220B0416
$1.66
40
WASHER SPRING 4MM
461F0400
Unavailable
41-1
PLUG,DRAIN
92066-1064
$12.37
42
COLLAR,THROTTLE VALVE
92027-1103
$7.34
43
SPRING,JET NEEDLE
92081-1072
$5.54
44
PLATE,JET NEEDLE
13169-1107
Unavailable
45
WASHER,THROTTLE VALVE
92022-1024
$6.61
46
"O" RING,CHECK VALVE
92055-1059
$11.60
47
CLAMP,SPRING,CHECK VL
92037-1123
Unavailable
48
WEIGHT,PUMP,CHECK VLV
13042-1004
Unavailable
49
BALL,STEEL,CHECK VALV
92140-1003
Unavailable
51-1
RING-O
92055-044
$10.38
