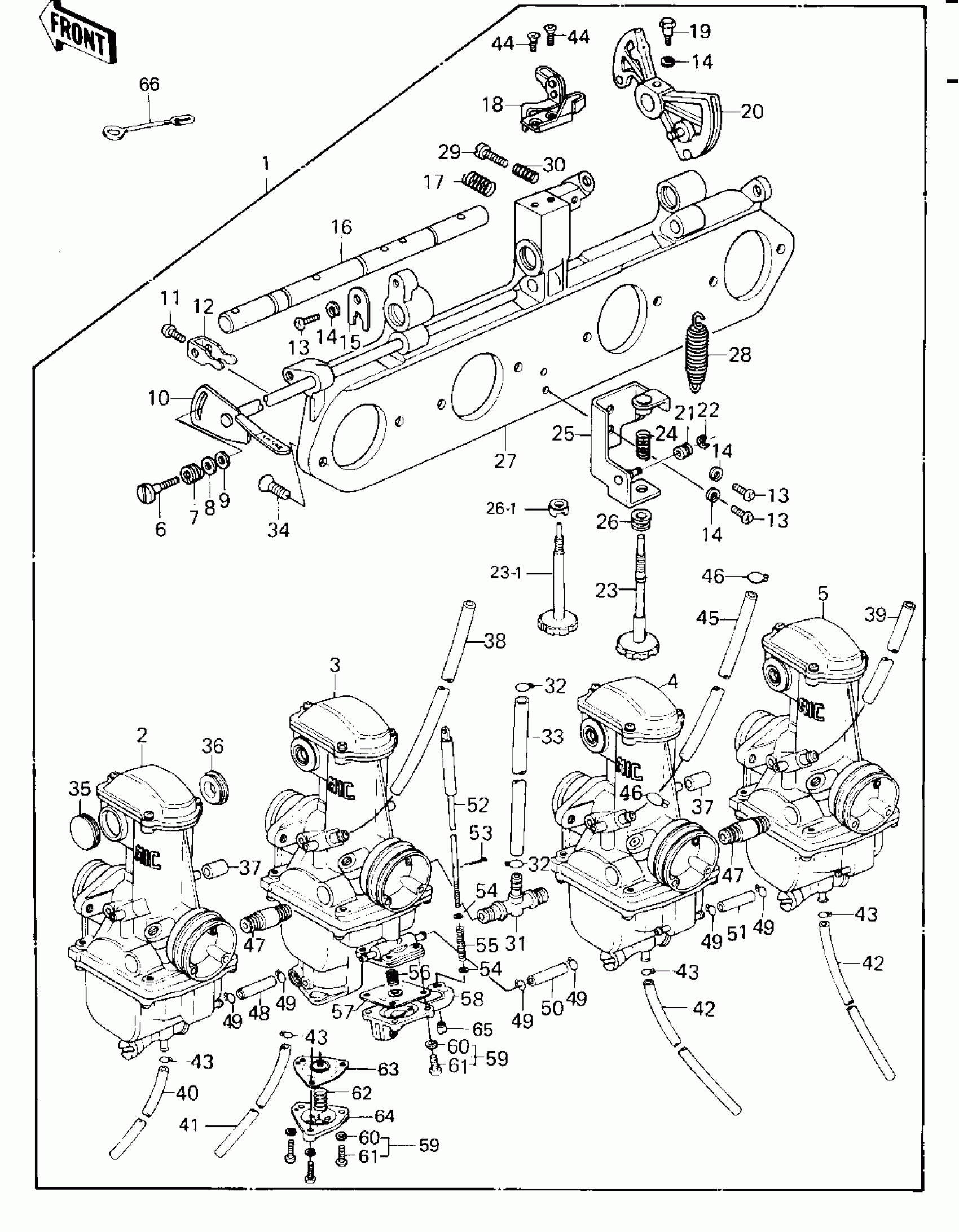

Kawasaki Police 1000 CARBURETOR ASSY ('79-'81 C2/C3/C4) Diagram

#

Description
Price

1

CARBURETOR ASSY

16001-1201

$988.85

2

CARBURETOR,L.H OUTSI

16001-1227

$433.21

3

CARBURETOR,L.H INSID

16001-1228

$414.00

4

CARBURETOR,R.H INSID

16001-1229

$327.40

5

CARBURETOR,R.H OUTSI

16001-1230

$327.40

6

SCREW

16046-005

Unavailable

7

SPRING,F

16040-009

Unavailable

8

WASHER,PLAIN

16039-020

Unavailable

8

WASHER PLAIN 5MM

410B0500

Unavailable

9

WASHER,PLAIN,NYLON

16039-019

Unavailable

10

SHAFT,STARTER PLUNGE

16041-021

$54.54

11

SCREW,PAN HEAD,5X7

16046-007

Unavailable

12

LEVER,STARTER PLUNGE

13168-1026

Unavailable

13

SCREW-PAN-CROS

220B0514

$4.04

14

WASHER SPRING 5MM

461F0500

$0.69

15

PLATE,SHAFT STOPPER

16055-012

Unavailable

16

SHAFT,CARB CONNECTIO

16041-017

Unavailable

17

SPRING,CABLE PULLY

16040-022

Unavailable

18

BRACKET,THROTTLE CAB

16077-017

$59.26

19

BOLT,HEX HEAD,5X14

16067-006

Unavailable

20

PULLY,THROTTLE CABLE

13236-1015

Unavailable

21

RING

16073-016

Unavailable

22

CIRCLIP 3MM

482K3000

$1.78

23-1

SCREW,THROTTLE STOP

16021-1020

Unavailable

24

SPRING,THRTL STP SCRW

92081-1200

$9.28

25

BRACKET THRTL CBL PL

11034-1667

Unavailable

26-1

BUSHING

92028-1071

Unavailable

27

HOLDER,CARB MOUNTING

16065-1009

$131.59

28

SPRING,THROTTLE PULL

92081-1028

Unavailable

29

SCREW,ADJUSTER

16021-1011

$11.07

30

SPRING,THROTTLE ADJST

16022-010

Unavailable

31

FITTING

92005-1010

$28.80

32

CLAMP,TUBE

92037-1184

$1.45

33

TUBE,7.5X12.5X225

92059-1123

Unavailable

34

SCREW,6X14

16033-029

Unavailable

34

SCREW-CSK-CROS,6X14

221B0614

Unavailable

35

CAP,RUBBER

16039-042

Unavailable

36

GROMMET,CARBURETOR

92071-104

Unavailable

37

HOSE,6X11.5X16

92059-141

$17.97

38

HOSE,AIR VENT,5X8X55

92059-1028

Unavailable

39

HOSE,AIR VENT,5X8X55

92059-1028

Unavailable

40

HOSE,FUEL OVERFLOW

92059-147

Unavailable

41

HOSE,FUEL OVERFLOW

92059-134

Unavailable

42

HOSE,FUEL OVERFLOW

92059-134

Unavailable

43

CLAMP,CARBURETOR HLDR

92037-178

Unavailable

44

SCREW CNTSNK HD 5X10

221B0510A

$3.67

45

HOSE,FUEL TAP DIAPHRA

92059-1023

$16.60

46

CLAMP,TUBE

92037-072

$7.22

47

FITTING

92005-1009

Unavailable

48

TUBE,3.5X7.5X47.5

92059-1072

$14.00

49

CLAMP,TUBE

92037-1124

$6.11

50

TUBE,3.5X7.5X64.5

92059-1071

$33.46

51

TUBE,3.5X7.5X47.5

92059-1072

$14.00

52

ROD ASSY,PUMP

46102-1013

Unavailable

53

COTTER PIN,1.0X6

550D1006

$3.19

54

WASHER,PUMP ROD

92022-1138

Unavailable

55

SPRING,PUMP ROD

92081-1138

Unavailable

56

SPRING,PUMP DIAPHRAGM

92081-1139

Unavailable

57

DIAPHRAGM,PUMP

43028-1012

Unavailable

58

COVER ASSY,PUMP

14025-1139

Unavailable

59

SCREW-PAN-WS-CROS

223B0414

$1.52

60

WASHER SPRING 4MM

461F0400

Unavailable

61

SCREW-PAN-CROS

220B0414

$4.28

65

NUT,PUMP ROD

92015-1075

Unavailable

66

CLAMP,OVER FLOW PIPE

92037-134

$11.50
