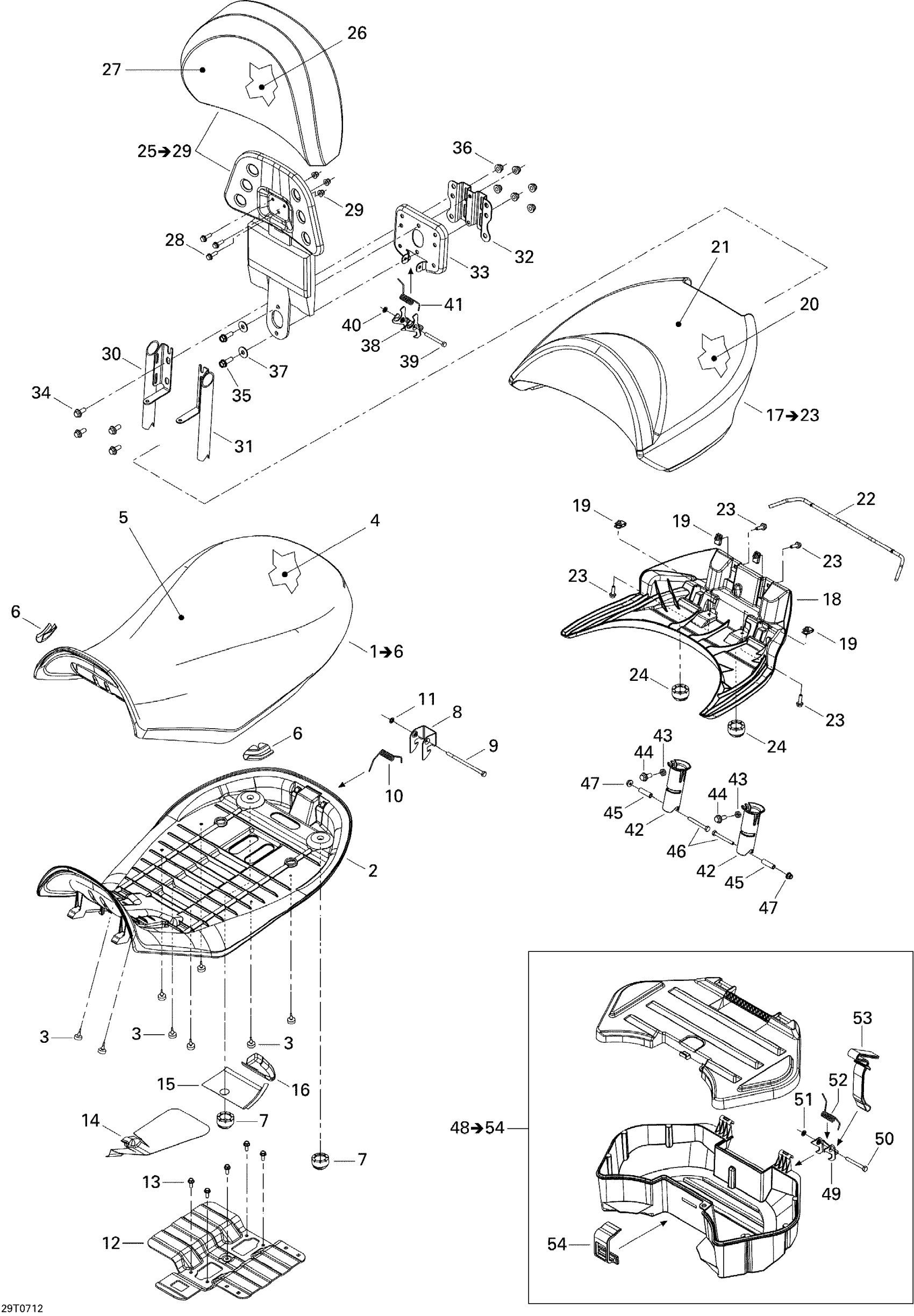

Can-Am Outlander MAX 800 LTD 4 X 4, 2007 09- Seat Diagram
#
1
SEAT ASSEMBLY - Call your local BRP dealership | Includes 1 to 6
708000635
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Rubber Stopper
708000759
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
SEAT COVER - Call your local BRP dealership
708000504
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Bumper Rubber
708000760
Unavailable
8
Latch, Black
708000144
Unavailable
9
Hex. Screw M6 X 110
230061044
Unavailable
10
Spring
708000369
Unavailable
11
Push Nut
732610072
Unavailable
12
Seat Reinforcement
708000512
Unavailable
13
Hex. Flange Screw M6 X 12
210261250
Unavailable
14
REFLECTING SHEET - Call your local BRP dealership
708000956
Unavailable
15
REFLECTING SHEET - Call your local BRP dealership
708000470
Unavailable
16
HEAT SHIELD - Call your local BRP dealership
708000957
Unavailable
17
Rear Seat Ass'y | Includes 17 to 23
708000498
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Panel Nut M6 X 1.0
250100198
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
SEAT COVER - Call your local BRP dealership
708000499
Unavailable
22
LATCH HANDLE - Call your local BRP dealership
708000822
Unavailable
23
Hex. Flange Screw M6 X 20
207662044
Unavailable
24
Bumper Rubber
708000760
Unavailable
25
Backrest Ass'y | Includes 25 to 29
708000500
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
Backrest Cover
708000501
Unavailable
28
Hex. Flange Screw M6 X 20
207662044
Unavailable
29
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
30
LH BACKREST STEM - Call your local BRP dealership
708000439
Unavailable
31
RH BACKREST STEM - Call your local BRP dealership
708000443
Unavailable
32
REAR PLATE - Call your local BRP dealership
708000855
Unavailable
33
FRONT PLATE - Call your local BRP dealership
708000446
Unavailable
34
Hex. Flange Screw M8 X 20
207682044
Unavailable
35
Hex. Flange Screw M8 X 25
207682544
Unavailable
36
Hex. Flange Elastic Nut M8
233281414
Unavailable
37
Flat Washer 8 mm
234082410
Unavailable
38
LATCH - Call your local BRP dealership
708000448
Unavailable
39
Hex. Screw M6 X 55
207065544
Unavailable
40
Push Nut
732610072
Unavailable
41
Spring
708000369
Unavailable
42
ROD GUIDE - Call your local BRP dealership
708000461
Unavailable
43
Hex. Jam Nut M8
232180600
Unavailable
44
Hex. Screw M8 X 20
207182044
Unavailable
45
INNER BUSHING - Call your local BRP dealership
708000462
Unavailable
46
HEX. CAP SCREW M6 X 50 - Call your local BRP dealership
207065044
Unavailable
47
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
48
BOX ASS'Y - Call your local BRP dealership | Includes 41 to 47
708200119
Unavailable
49
LATCH - Call your local BRP dealership
708200066
Unavailable
50
Hex. Screw M6 X 55
207065544
Unavailable
51
Push Nut
732610072
Unavailable
52
Spring
708000369
Unavailable
53
BELT - Call your local BRP dealership
510004495
Unavailable
54
Cover Latch
708200120
Unavailable
