- Outlander MAX 800 LTD 4 X 4, 2007
07- Steering System

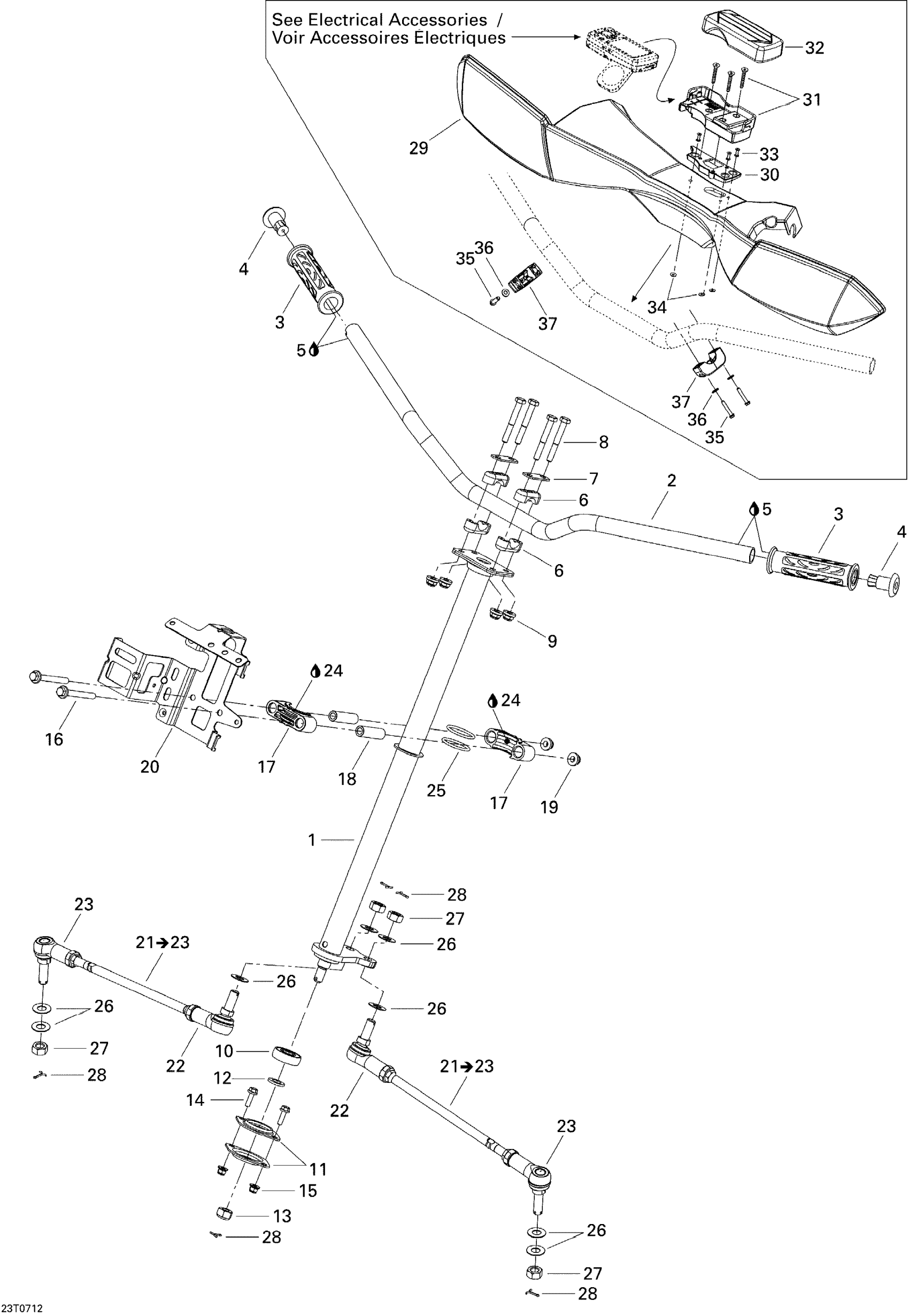

Can-Am Outlander MAX 800 LTD 4 X 4, 2007 07- Steering System Diagram
#
1
Main Tube, Black
709400971
Unavailable
2
Black, Handle Bar
709401240
Unavailable
3
Grey, Handle Grip
709400443
Unavailable
4
End Piece
709400449
Unavailable
5
Loctite 406, 7 Oz
293800100
Unavailable
6
Steering Support
709400919
Unavailable
7
Stiffner
709400509
Unavailable
8
Hex. Screw M8 X 60
207086046
Unavailable
9
Hex. Elastic Flange Nut M8
233281416
Unavailable
10
Ball Bearing
709400439
Unavailable
11
FLANGE, BEARING - Call your local BRP dealership
709400152
Unavailable
12
Flat Washer 12 mm
234021410
Unavailable
13
Hex. Flange Elastic Nut M12
250000047
Unavailable
14
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
15
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
16
Hex. Flange Screw M8 X 70
207687044
Unavailable
17
Half Bushing
709400471
Unavailable
18
BUSHING - Call your local BRP dealership
709400072
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
MODULE SUPPORT - Call your local BRP dealership
709400751
Unavailable
21
Tie Rod Ass'y | Includes 21 to 23
709400190
Unavailable
22
Ball Joint, RH Threads
709400487
Unavailable
23
LH Ball Joint
709402303
Unavailable
24
Synthetic Grease, 400 G
293550010
Unavailable
25
O-Ring
293300068
Unavailable
26
Hardened Washer
706200281
Unavailable
27
Nut M12
250100099
Unavailable
28
Cotter Pin
211400013
Unavailable
29
Handle Bar Protector | XT
709400822
Unavailable
30
GPS SUPPORT BASE - Call your local BRP dealership
709400446
Unavailable
31
GPS Support
709400448
Unavailable
32
GPS SUPPORT PROTECTOR - Call your local BRP dealership
709400450
Unavailable
33
Rivet 1/8"
293150016
Unavailable
34
Flat Washer M3, Stainless
234032600
Unavailable
35
Hex. Flange Screw K40 X 25
241142560
Unavailable
36
Flat Washer | XT
211200035
Unavailable
37
U-Clamp | XT
517303264
Unavailable
