02- Engine - Cooling

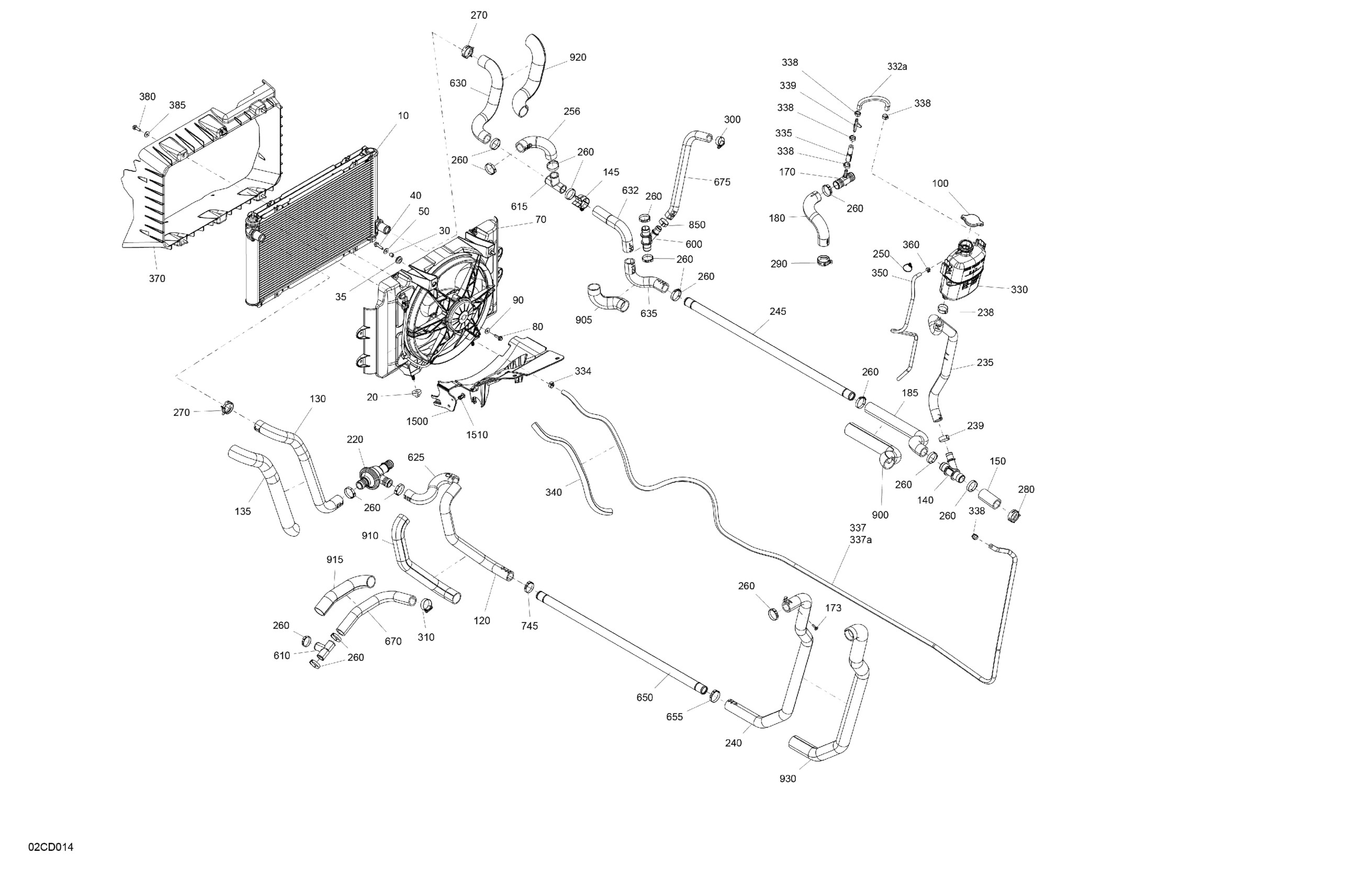

Can-Am North America - Defender HD9 - DPS CAB - 8URA - Tundra Green - 67" Width CALI, 2024 02- Engine - Cooling Diagram
#
10
Radiator
709200951
Unavailable
20
Grommet
709200948
Unavailable
30
Bushing
293900105
Unavailable
35
Overmolded Grommet
293720130
Unavailable
40
Hex. Flange Screw M6 X 25
207662544
Unavailable
50
Flat Washer 6 mm
234062410
Unavailable
70
Fan Ass'y
709200534
Unavailable
80
Hex. Flange Screw M6 X 20
207662044
Unavailable
90
Flat Washer 6 mm
234062410
Unavailable
100
Radiator Pressure Cap
709200207
Unavailable
120
Hose
709200973
Unavailable
130
Radiator Hose In
709201032
Unavailable
135
Tubing 35 MM 1000MM Long
219704428
Unavailable
140
Y Fitting
509001200
Unavailable
145
Retainer
275500590
Unavailable
150
Hose
709200299
Unavailable
170
T-Fitting
509000510
Unavailable
173
Torx Screw K50 X 16
250000720
Unavailable
180
Hose Engine Out
709200915
Unavailable
185
Hose
709200971
Unavailable
220
Thermostat Housing
709200986
Unavailable
235
Hose Coolant Tank Out
709201103
Unavailable
238
Oetiker Gear Clamp
293650165
Unavailable
239
Oetiker Gear Clamp
293650165
Unavailable
240
Hose
709200969
Unavailable
245
Heater Tubing
709200657
Unavailable
250
Tie Wrap
293750108
Unavailable
256
Formed Thermostat Hose OUT
709201439
Unavailable
260
Gear Clamp
509000162
Unavailable
270
Norma Spring Clamp
293650166
Unavailable
280
Norma Spring Clamp
293650166
Unavailable
290
Norma Spring Clamp
293650166
Unavailable
300
Aba Gear Clamp, 26-38 MM
509000443
Unavailable
310
Aba Gear Clamp, 26-38 MM
509000443
Unavailable
330
Coolant Tank
709201323
Unavailable
332a
Was 276000394 Hose 6.4 mm | Includes 337 to 337a
219704362
Unavailable
334
Oetiker Clamp
293650042
Unavailable
335
Bleeding Hose
709200606
Unavailable
337
Hose 6,35 Mm Id 4000Mm Long
219704547
Unavailable
337a
Was 276000394 Hose 6.4 mm | Includes 337 to 337a
219704362
Unavailable
338
Crimp Clamp, 15.3-706R
293650047
Unavailable
339
Y-Fitting
293710059
Unavailable
340
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
350
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
Unavailable
360
Spring Clamp
414554800
Unavailable
370
Radiator Deflector Kit
715008385
Unavailable
380
Hex. Flange Screw M6 X 20
207662044
Unavailable
385
Flat Washer 6 mm
234062410
Unavailable
600
Y Fitting
509001200
Unavailable
610
T-Fitting
509001313
Unavailable
615
T-Fitting
509001313
Unavailable
625
Hose Thermostat In
709201031
Unavailable
630
Formed Radiator Hose OUT
709201440
Unavailable
632
Formed Radiator Hose OUT
709201437
Unavailable
635
Hose
709200972
Unavailable
650
Heater Tubing
709200657
Unavailable
655
Gear Clamp
509000162
Unavailable
670
Hose
709200976
Unavailable
675
Hose
709200975
Unavailable
745
Gear Clamp
509000162
Unavailable
850
Oetiker Gear Clamp
293650165
Unavailable
900
Tubing 35 MM 1000MM Long
219704428
Unavailable
905
Tubing 35 MM 1000MM Long
219704428
Unavailable
910
Tubing 35 MM 1000MM Long
219704428
Unavailable
915
Tubing 35 MM 1000MM Long
219704428
Unavailable
920
Tubing 35 MM 1000MM Long
219704428
Unavailable
930
Tubing 35 MM 1000MM Long
219704428
Unavailable
1500
Front Air Deflector
709201036
Unavailable
1510
Tuflok Plastic Rivet
293150230
Unavailable
