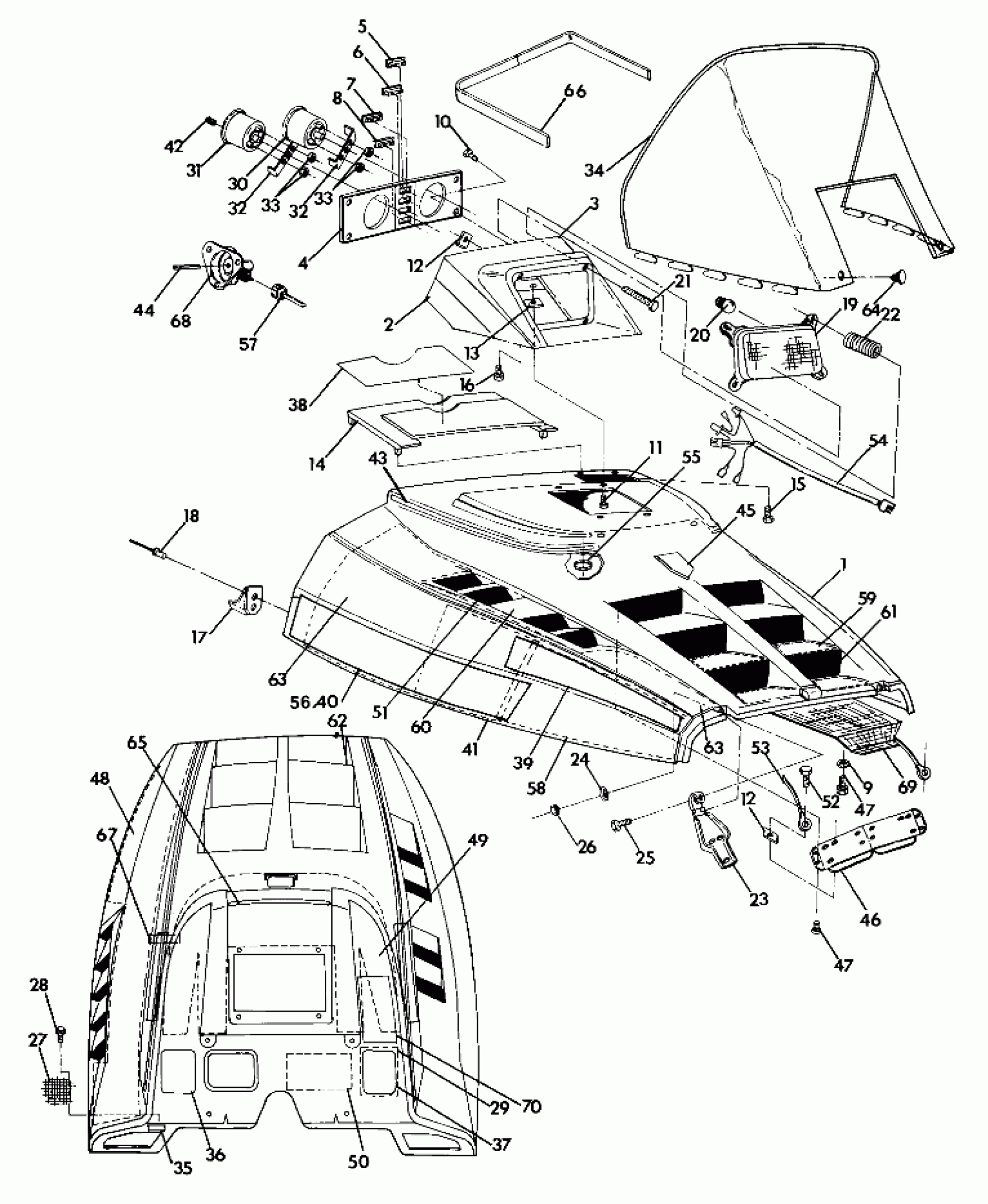

Polaris NOR WIDE TRAK - N902064 HOOD (4917871787003A) Diagram
#
1
HOOD,WIDETRAK(90) [No Longer Available]
5431167-136
Unavailable
4
BEZEL, INST.
5430924
Unavailable
5
INDICATOR'TEMP'WARN.
4040011
$32.37
6
INDICATOR'HI-RANGE'WARN. [No Longer Available]
4040017
Unavailable
7
INDICATOR'REVERSE'WARN.
4040019
$28.32
8
INDICATOR'LOW-RANGE'WARN.
4040018
Unavailable
9
WASHER(10)
7555708
$3.99
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
SCREW, SEMS(10)
7512283
$3.99
12
NUT [No Longer Available]
7570056
Unavailable
12
NUT [No Longer Available]
7570056
Unavailable
13
NUT, SPEED(10)
7670057
$1.49
14
PANEL,INTAKE(RED) Substituted by 2620078-136
5431195-136
Unavailable
15
SCREW(10)
7511840
Unavailable
16
SCREW(10)
7512009
Unavailable
17
CUP, HOOD LATCH,(10)
5430733
$4.84
18
RIVET(50)
7621334
$1.49
19
HEADLIGHT ASM. Substituted by 4032040 (Incl. 20-22)
2431007
Unavailable
20
BULB,QUARTZ.H/L,INDY
2870448
$24.99
20
BULB, H/L
4030028
$29.99
20
HOLDER-CAP
4032004
Unavailable
21
SCREW, ADJ.(10)
4032003
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
HINGE ASM,HD. Substituted by 2635005-067
2635005
Unavailable
24
WASHER,WROUGHT(10)
7558302
$1.59
25
BOLT-CARRIAGE(10)
7512263
$3.99
26
NUT-LOCK(10)
7542122
$1.49
27
SCREEN, HOOD Substituted by 5211117-067
5211117
Unavailable
28
SCREW(10)
7511858
$3.99
29
DECAL,SPEC,WIDETRAK [No Longer Available]
7072868
Unavailable
30
SPEEDOMETER (Incl. 32-33)
3280092
$111.99
30
SPEEDO.,(KILOMETER) (Incl. 32-33)
3280097
$125.65
31
TACHOMETER (Incl. 32-33)
3280093
Unavailable
32
BRACKET
3280098
Unavailable
32
BRACKET
3280098
Unavailable
33
NUT
3280063
Unavailable
33
NUT
3280063
Unavailable
34
WINDSHIELD Substituted by 5431630
5431183
Unavailable
35
LABEL, 'U.S.A.'
7073024
Unavailable
36
DECAL,OPER.CAUT,SILVER [No Longer Available]
7072875
Unavailable
37
DECAL,OPER.CAUT(FR)SILVER [No Longer Available]
7072877
Unavailable
38
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
39
DECAL,LH HOOD TOP [No Longer Available]
7072837
Unavailable
39
DECAL,RH HOOD TOP [No Longer Available]
7072838
Unavailable
40
DECAL, RH HOOD [No Longer Available]
7072840
Unavailable
40
DECAL,LH HOOD [No Longer Available]
7072839
Unavailable
41
TAPE,FOIL,FOAM
5810405
Unavailable
42
KNOB,TRIP ODOMETER
3280103
$3.83
43
DECAL, PINSTRIPE [No Longer Available]
7072739
Unavailable
44
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
45
EMBLEM,'35 YR'(400) [No Longer Available]
5431127
Unavailable
46
PLATE,RE-INF.,(HD.)
5222105
$49.51
47
SCREW(10)
7511861
Unavailable
47
SCREW(10)
7511861
Unavailable
48
FOAM, HOOD, RH
5810375
Unavailable
48
FOAM, HOOD, LH
5810374
Unavailable
49
FOAM, HOOD, CTR
5810376
Unavailable
50
FOAM, HOOD
5810389
Unavailable
51
TAPE,FOIL
5810395
Unavailable
52
SCREW(10)
7511989
Unavailable
53
CABLE,HD.RETAINER
7080360
$24.27
54
HARNESS, MAIN WIRE [No Longer Available]
2460292
Unavailable
55
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
56
KIT,DECAL,W'TRAK(90) [No Longer Available] (Incl. 35-40, 43, 45)
2200327
Unavailable
57
CABLE,SPEEDO.
3280094
$60.70
58
TAPE,FOIL,FOAM
5810407
Unavailable
59
TAPE,FOIL,LH
5810393
Unavailable
60
TAPE,FOIL
5810396
Unavailable
61
TAPE,FOIL
5810397
Unavailable
62
TAPE,FOIL,LOUVER,PIPE SIDE
5810404
Unavailable
63
TAPE,FOIL,FOAM
5810406
Unavailable
63
TAPE,FOIL,FOAM
5810406
Unavailable
64
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
65
DECAL,HOOD-H/L POD [No Longer Available]
7072676
Unavailable
66
PAD,W/S,LH,BLACK
5810437
Unavailable
66
PAD,W/S,RH,BLACK
5810438
$1.67
67
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
68
ADAPTER,DRIVE Substituted by 3280116
3280095
Unavailable
69
SCREEN,LOUVER,FR.RH Substituted by 5222439-067
5222439
Unavailable
69
SCREEN,LOUVER,FR.LH Substituted by 5222438-067
5222438
Unavailable
70
DECAL,SHIFT PATTERN [No Longer Available]
7072854
Unavailable
70
DESC NOT_AVAILABLE
2652066
Unavailable
