- NOR WIDE TRAK - N902064
CHASSIS AND SEAT Updated 2/90 (4917871787001A)

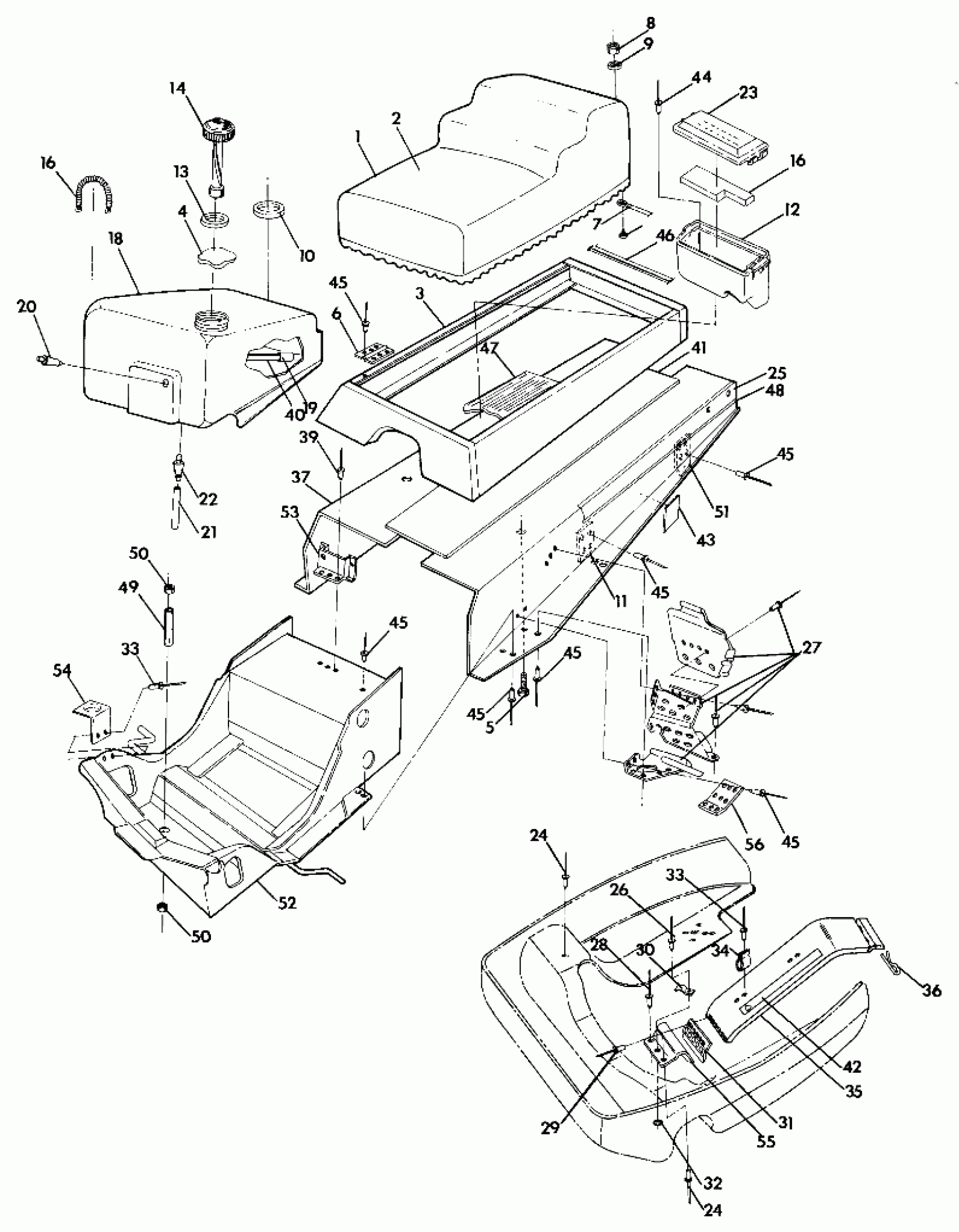

Polaris NOR WIDE TRAK - N902064 CHASSIS AND SEAT Updated 2/90 (4917871787001A) Diagram
#
1
SEAT ASM,(2-UP) (Incl. 2)
2681428
Unavailable
2
COVER,SEAT
2681429
Unavailable
3
SEAT RISER ASM. Substituted by 1011773-067
1011773
Unavailable
4
FOAM, FILLER
5810201
Unavailable
5
BOLT(10)
7512193
$2.39
6
HINGE,FLAT(10) (L.H. Side)
7020023
$4.19
7
RETAINER, CABLE
7080401
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
GROMMET-GAS TANK
5430575
Unavailable
11
BRKT. Substituted by 5220542-067
5220542
Unavailable
12
BOX-TOOL
5430716
$11.99
13
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
14
GAUGE,GAS Substituted by 2511246
2511149
Unavailable
16
FOAM - TOOL BOX
5810266
Unavailable
16
FOAM - TOOL BOX
5810266
Unavailable
18
TANK, GAS Substituted by 2520180
2511186
Unavailable
19
FUELPICKUP,W/STRAINER
7052037
$12.94
20
FITTING - OUTLET(10)
7052023
$24.99
21
KIT-TANK VENT
2200190
Unavailable
22
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
23
COVER,TOOL BOX
5430719
$28.32
24
RIVET(50)
7621457
$1.49
24
RIVET(50)
7621457
$1.49
25
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
26
POP RIVET(50)
7621402
$1.49
27
FOOTREST ASM, LH
2200311
Unavailable
27
FOOTREST ASM, RH
2200312
Unavailable
28
RIVET(50)
7621452
$1.49
29
RIVET, POP(50)
7621330
$1.49
30
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
32
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
34
CLIP, BELT Substituted by 5222769
5220817
Unavailable
35
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
36
PIN,RETAINING,(10)
7080216
$9.70
37
HSG.,TUNNEL, LH
5222391
Unavailable
37
HSG.,TUNNEL, RH [No Longer Available]
5222392
Unavailable
39
RIVET Substituted by 7661812
7661818
Unavailable
40
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
41
BRKT,TUNNEL SPACER [No Longer Available]
5222290
Unavailable
42
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
43
PLATE, TUNNEL Substituted by 5211220-067
5211220
Unavailable
44
RIVET(50)
7621332
$1.49
45
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
45
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
45
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
45
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
45
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
45
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
45
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
46
EDGE TRIM - BLACK Substituted by 5521131
8360012
Unavailable
47
Protector, Riser
5410561
$89.90
48
DECAL,TUNNEL STRIPE [No Longer Available]
7072776
Unavailable
49
SPACER
5332896
Unavailable
50
PALNUT(10)
7670031
Unavailable
50
PALNUT(10)
7670031
Unavailable
51
BRKT,R.SUSP,RH MTG. Substituted by 1011750-067
1011667
Unavailable
51
BRKT,R.SUSP,LH MTG. Substituted by 1011749-067
1011666
Unavailable
52
BULKHEAD,WIDETRAK Substituted by 1011752-067
1011752
Unavailable
53
BRACKET Substituted by 5221932-067
5221932
Unavailable
54
SUPPORT, MUFFLER Substituted by 1011601-067
1011601
Unavailable
55
BRKT, HINGE
5222388
Unavailable
56
PLATE,TUNNEL,LH Substituted by 5222351-067
5222351
Unavailable
56
PLATE,TUNNEL,RH Substituted by 5222352-067
5222352
Unavailable
56
BRACKET-CLUTCH GUARD [No Longer Available]
5223798
Unavailable
56
DESC NOT_AVAILABLE
5222119
Unavailable
