RACK AND TUNNEL EXTENSION SuperTrak Updated 2/90 (4917131713019A)

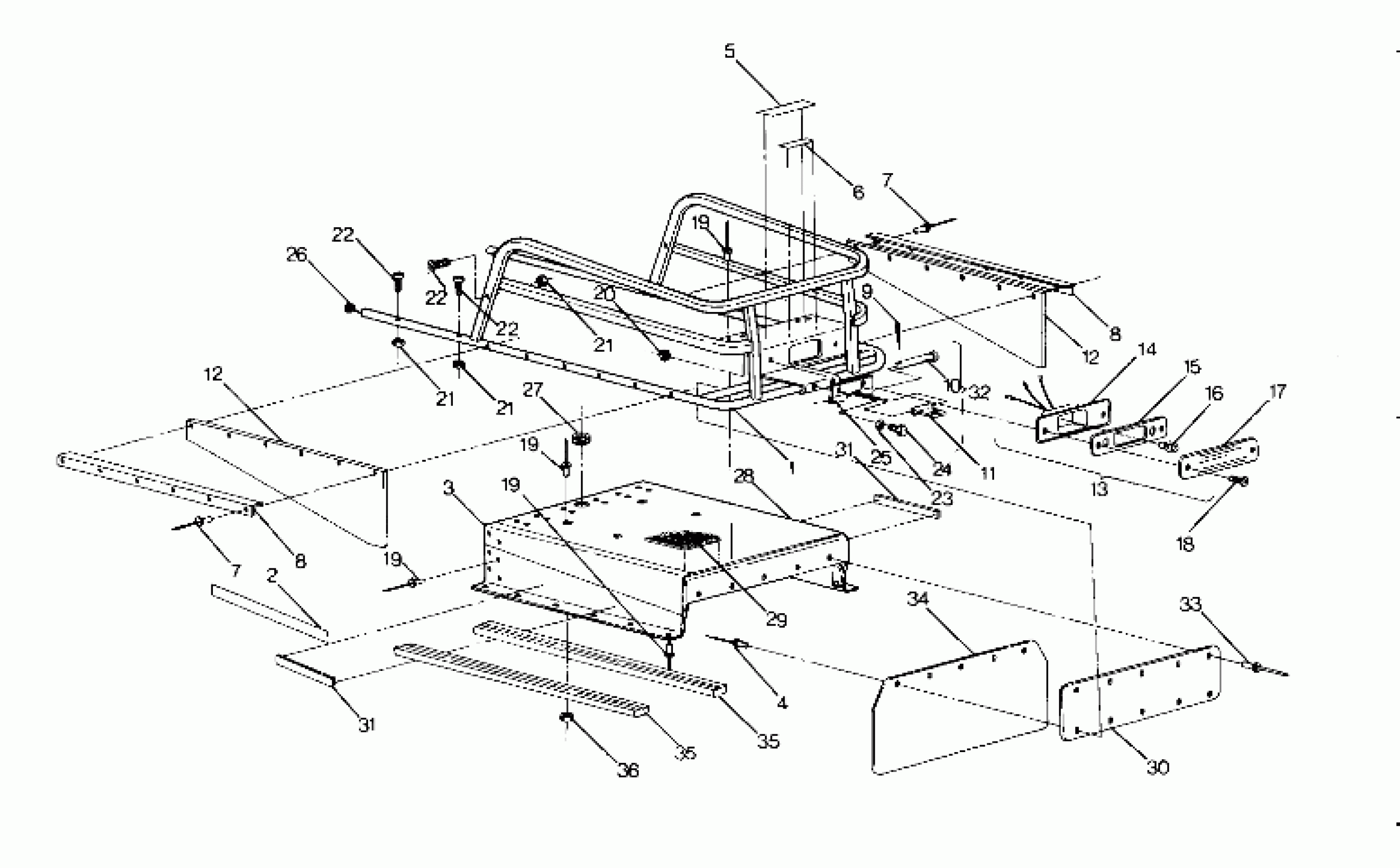

Polaris NOR TRAIL SUPERTRAK - N900161 RACK AND TUNNEL EXTENSION SuperTrak Updated 2/90 (4917131713019A) Diagram
#
1
RACK Substituted by 1011704-067
1011704-21
Unavailable
2
DECAL,REV/LOW RANGE [No Longer Available]
7072291
Unavailable
3
DECAL,EXTENSION,LH [No Longer Available]
7072260
Unavailable
3
DECAL,EXTENSION,RH [No Longer Available]
7072261
Unavailable
4
RIVET(50)
7621464
$3.99
5
DECAL,RACK,WARNING [No Longer Available]
7072117
Unavailable
6
DECAL,TRACK,SILVER [No Longer Available]
7072873
Unavailable
7
RIVET(50)
7621462
$1.49
7
RIVET(50)
7621462
$1.49
8
BRACKET Substituted by 5222285-067
5222285
Unavailable
8
BRACKET Substituted by 5222285-067
5222285
Unavailable
9
COTTER PIN(10)
7661401
$1.49
10
CLEVIS PIN(10)
7662209
$9.59
11
HITCH Substituted by 1011518-067
1011518
Unavailable
12
SNOW FLAP-SIDE
5810222
Unavailable
12
SNOW FLAP-SIDE
5810222
Unavailable
13
TAIL-LIGHT ASM (Incl. 14-17)
4030037
Unavailable
14
PIG TAIL ASM. [No Longer Available]
4032016
Unavailable
15
Gasket
4032015
Unavailable
16
BULB-TAIL-LIGHT Substituted by 4030063
4030038
Unavailable
17
LENS-TAIL-LIGHT
4032014
$36.41
18
SCREW(10)
7511985
Unavailable
19
RIVET(50)
7621429
$1.49
19
RIVET(50)
7621429
$1.49
19
RIVET(50)
7621429
$1.49
19
RIVET(50)
7621429
$1.49
20
NUT(10)
7541925
$1.49
21
NUT-LOCK(10)
7542122
$1.49
21
NUT-LOCK(10)
7542122
$1.49
21
NUT-LOCK(10)
7542122
$1.49
22
SCREW(10)
7512222
$2.39
22
SCREW(10)
7512222
$2.39
22
SCREW(10)
7512222
$2.39
23
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
24
SCREW(10) Substituted by 7512490
7512402
Unavailable
25
HITCH WELD.
1011734
Unavailable
26
PLUG(10)
5430713
Unavailable
27
Grommet
5410437
$2.39
28
EXTENSION,TUNNEL
1011525
Unavailable
29
PAD
5810173
Unavailable
30
FLAP, SNOW,UPPER
5810274
Unavailable
31
REFLECTOR RED
2670070
$9.91
31
REFLECTOR RED
2670070
$9.91
32
HITCHKIT,L.T./STARTRAK (Incl. 9-11)
2870708
Unavailable
33
POP RIVET(50)
7621418
$1.49
34
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
35
WEAR STRIP
5430786
Unavailable
35
WEAR STRIP
5430786
Unavailable
36
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
