HOOD SuperTrak (4917131713003A)

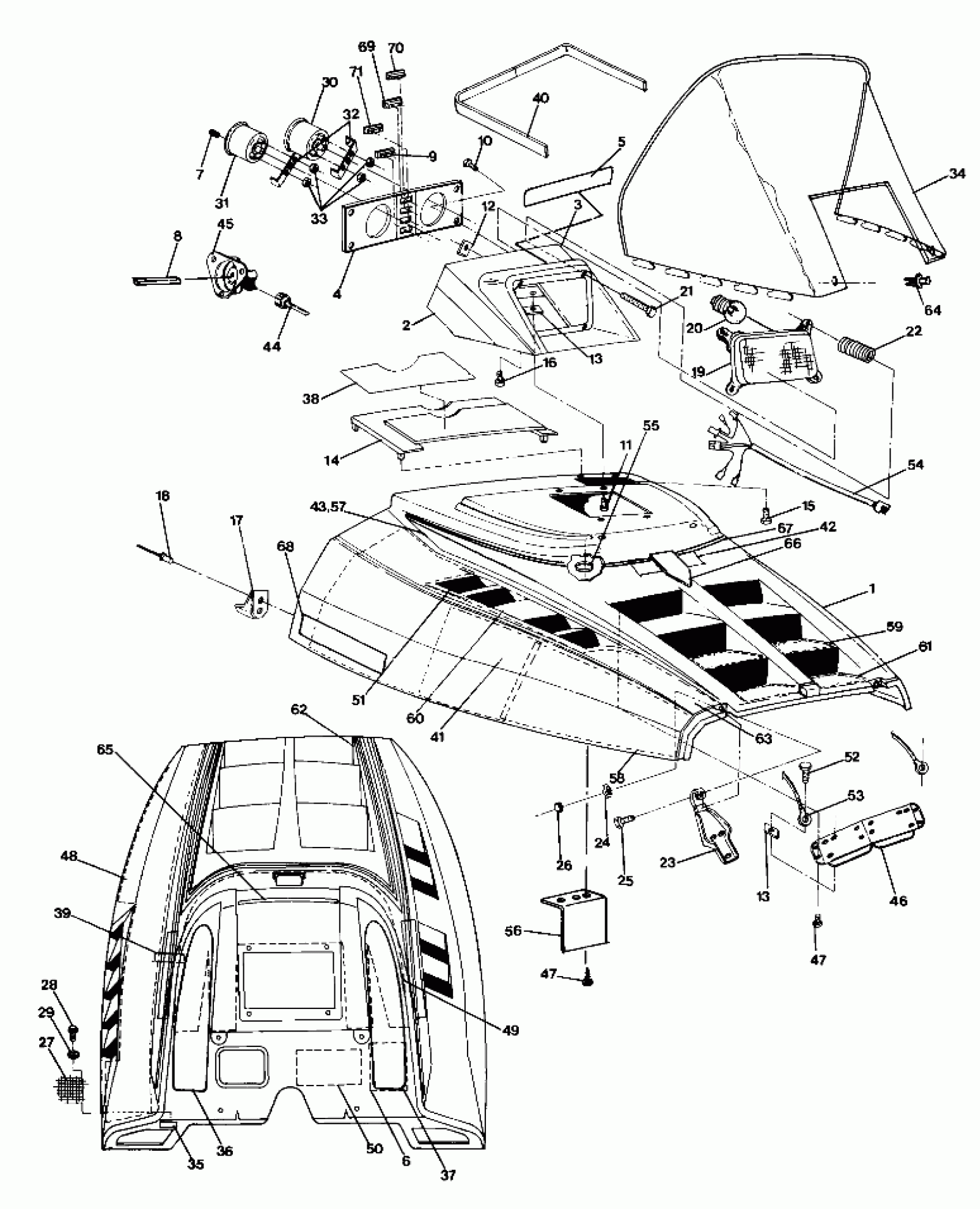

Polaris NOR TRAIL SUPERTRAK - N900161 HOOD SuperTrak (4917131713003A) Diagram
#
1
HOOD,TRAIL('90) Substituted by 2631573-135
5431193-135
Unavailable
2
HOUSING,INST.BOTTOM Substituted by 5430922-070
5430922
Unavailable
3
HOUSING,INST.TOP Substituted by 5430923-070
5430923
Unavailable
4
BEZEL, INST.
5430924
Unavailable
5
DECAL,SHIFT PATTERN [No Longer Available]
7072854
Unavailable
6
DECAL,SPEC.'S-TRAK' [No Longer Available]
7072880
Unavailable
7
KNOB,TRIP ODOMETER
3280103
$3.83
8
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
9
INDICATOR,'ACC'WARN.
4040014
Unavailable
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
SCREW, SEMS(10)
7512283
$3.99
12
NUT, SPEED(10)
7670056
Unavailable
13
NUT, SPEED(10)
7670057
$1.49
13
NUT, SPEED(10)
7670057
$1.49
14
PANEL,INTAKE(GREY) Substituted by 2620078-135
5431195-135
Unavailable
15
SCREW(10)
7511840
Unavailable
16
SCREW(10)
7512009
Unavailable
17
CUP, HOOD LATCH,(10)
5430733
$4.84
18
RIVET(50)
7621334
$1.49
19
HEADLIGHT ASM. Substituted by 4032040
2431007
Unavailable
20
BULB,QUARTZ.H/L,INDY
2870448
$24.99
20
BULB, H/L
4030028
$29.99
21
SCREW, ADJ.(10)
4032003
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
HINGE ASM,HD. Substituted by 2635005-067
2635005
Unavailable
24
WASHER,WROUGHT(10)
7558302
$1.59
25
BOLT-CARRIAGE(10)
7512263
$3.99
26
NUT-LOCK(10)
7542122
$1.49
27
SCREEN, HOOD Substituted by 5211117-067
5211117
Unavailable
28
SCREW(10)
7511858
$3.99
29
RIVET BURR(50)
7555756
$2.99
30
SPEEDO.,(KILOMETER) (Incl. 32-33)
3280097
$125.65
31
TACHOMETER (Incl. 32-33)
3280093
Unavailable
32
BRACKET
3280098
Unavailable
33
NUT
3280063
Unavailable
34
WINDSHIELD, HIGH
5431118
Unavailable
35
LABEL, 'U.S.A.'
7073024
Unavailable
36
DECAL,OPER.CAUT,SILVER [No Longer Available] (English)
7072875
Unavailable
37
DECAL,OPER.CAUT(FR)SILVER [No Longer Available] (French)
7072877
Unavailable
38
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
39
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
40
PAD, W/S, LH
5810414
Unavailable
40
PAD, W/S
5810415
Unavailable
41
TAPE,FOIL,FOAM
5810405
Unavailable
42
DECAL,HOOD,TOP [No Longer Available]
7072734
Unavailable
43
DECAL,HOOD,LH [No Longer Available]
7072735
Unavailable
43
DECAL,HOOD,RH [No Longer Available]
7072736
Unavailable
44
CABLE,SPEEDO.
3280094
$60.70
45
ADAPTER,DRIVE Substituted by 3280116
3280095
Unavailable
46
PLATE,RE-INF.,(HD.)
5222105
$49.51
47
SCREW(10)
7511861
Unavailable
47
SCREW(10)
7511861
Unavailable
48
FOAM, HOOD, RH
5810375
Unavailable
48
FOAM, HOOD, LH
5810374
Unavailable
49
FOAM, HOOD, CTR
5810376
Unavailable
50
FOAM, HOOD
5810389
Unavailable
51
TAPE,FOIL
5810395
Unavailable
52
SCREW(10)
7511989
Unavailable
53
CABLE,HD.RETAINER
7080360
$24.27
54
HARNESS, H/L(S'TRAK) [No Longer Available]
2460295
Unavailable
55
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
56
DEFLECTOR, AIR
5222458
Unavailable
57
KIT,DECAL,S'TRAK(90) [No Longer Available] (Incl. 6, 35-37,42,43, 66-68)
2200328
Unavailable
58
TAPE,FOIL,FOAM
5810407
Unavailable
59
TAPE,FOIL,LH
5810393
Unavailable
59
TAPE,FOIL,RH
5810394
Unavailable
60
TAPE,FOIL
5810396
Unavailable
61
TAPE,FOIL
5810397
Unavailable
62
TAPE,FOIL,LOUVER,PIPE SIDE
5810404
Unavailable
63
TAPE,FOIL,FOAM
5810406
Unavailable
64
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
65
DECAL,POD,HD.-H/L. [No Longer Available]
7072523
Unavailable
66
EMBLEM, '35 YEAR' [No Longer Available]
5431126
Unavailable
67
DECAL,PINSTRIPE [No Longer Available]
7072733
Unavailable
68
LOGO,SUPERTRAK INDY [No Longer Available]
5431057
Unavailable
69
INDICATOR'HI-RANGE'WARN. [No Longer Available]
4040017
Unavailable
70
INDICATOR'LOW-RANGE'WARN.
4040018
Unavailable
71
INDICATOR'REVERSE'WARN.
4040019
$28.32
71
DESC NOT_AVAILABLE
7072713
Unavailable
