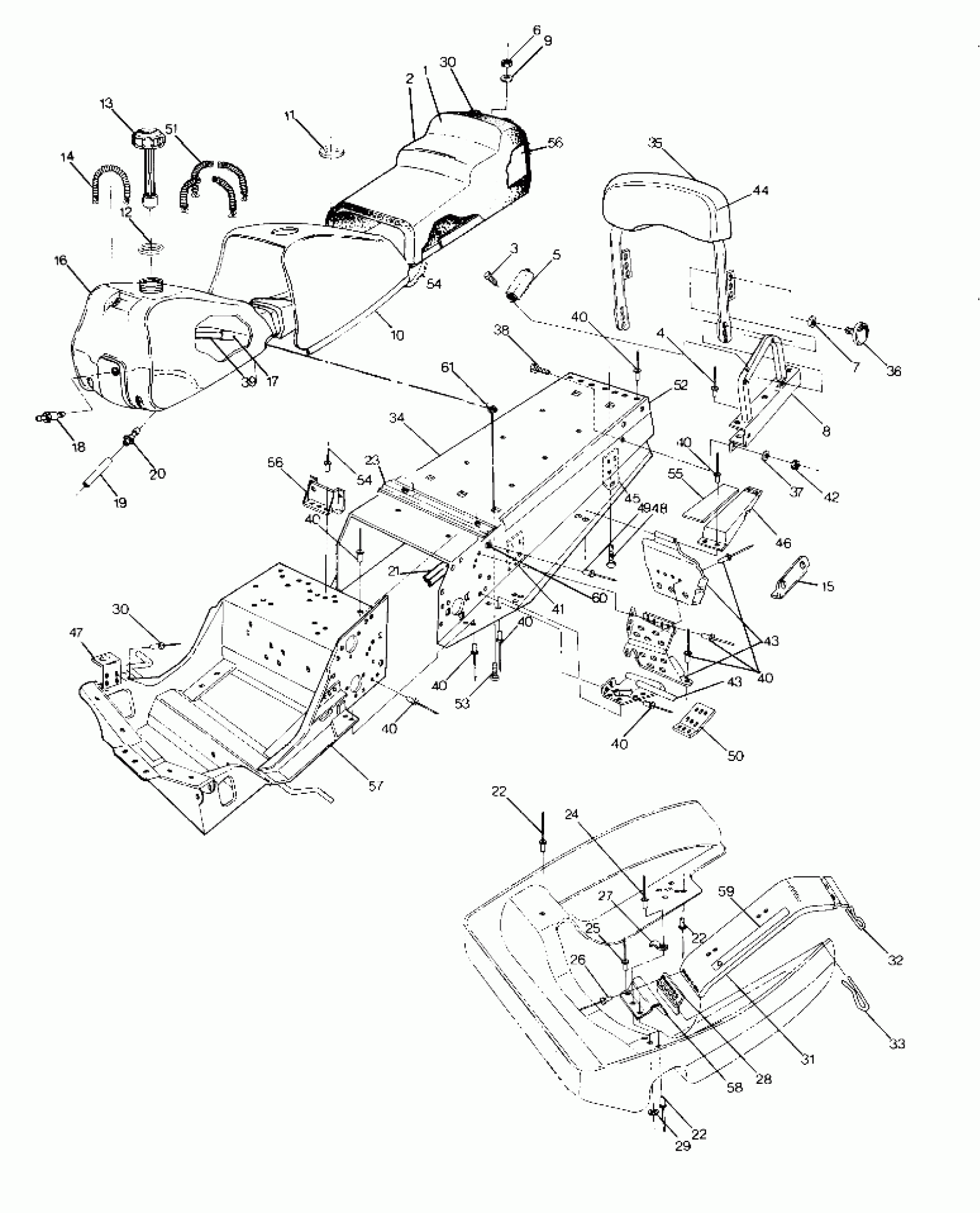

Polaris NOR TRAIL SUPERTRAK - N900161 CHASSIS AND SEAT SuperTrak Updated 2/90 (4917131713001A) Diagram

SEAT,(SUPERTRAK) Substituted by 2200743 (Incl. 2, 63)

2681448

Unavailable

COVER, SEAT Substituted by 2200743

2681444

Unavailable

SCREW(10)

7510504

$6.76

RIVET(50)

7621429

$1.49

GRIP, HAND Substituted by 5433383

5431015

$19.68

NUT-LOCK(10)

7542122

$1.49

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

BAR,GRAB,LH,BLK.

1011729-067

Unavailable

BAR,GRAB,RH,BLK.

1011730-067

Unavailable

WASHER(10)

7558221

$2.39

COVER,TANK

2681442

Unavailable

GROMMET,GAS TANK [No Longer Available]

5431190

Unavailable

GASKET-GAS CAP Substituted by 5810513

5810142

Unavailable

CAP,GAS(HI.CAP.)

2511184

Unavailable

SPRING,TANK,(10)

7042020

$13.75

WEAR STRIP

5430786

Unavailable

TANK, GAS Substituted by 2511199

2511185

Unavailable

FUELPICKUP,W/STRAINER

7052037

$12.94

FITTING - OUTLET(10)

7052023

$24.99

KIT-TANK VENT

2200190

Unavailable

VENT FITTING,TANK Substituted by 5430579

5430669

Unavailable

BRACE,TUNNEL REINF.

5222412

Unavailable

RIVET(50)

7621457

$1.49

RIVET(50)

7621457

$1.49

RIVET(50)

7621457

$1.49

BRKT,R.FUELTANK MTG. Substituted by 5222375-067

5222375

Unavailable

POP RIVET(50)

7621402

$1.49

RIVET(50)

7621452

$1.49

RIVET, POP(50)

7621330

$1.49

CLIP, WIRING,(10) Substituted by 7080665

4020035

Unavailable

HINGE

5211047

$3.49

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

BUCKLE&STRAP

2681291

Unavailable

BUCKLE&STRAP

2681291

Unavailable

GUARD,CLUTCH Substituted by 5240965

5230118

Unavailable

PIN,RETAINING,(10)

7080216

$9.70

PIN, FRONT

7080311

Unavailable

TUNNEL(SUPERTRAK)'90

1011775

Unavailable

BACKREST ASM. (Incl. 62)

2681449

Unavailable

KNOB,ADJ. Substituted by 2670130

7030007

Unavailable

WASHER,WROUGHT(10)

7558302

$1.59

BOLT(10)

7512325

$2.39

GAS LINE, (FT.) [Cannot Purchase as Assembly]

8450003

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

BRKT. Substituted by 5220542-067

5220542

Unavailable

NUT-5/16-18 NYLOK-Y

7542324

$1.49

FOOTREST ASM,LH

2200250

Unavailable

FOOTREST ASM,RH

2200254

Unavailable

FOOTREST ASM,LH

2200250

Unavailable

FOOTREST ASM,RH

2200254

Unavailable

COVER, BACKREST

2681450

Unavailable

PAD,LH,R.SUSP.MTG. Substituted by 1011727-067

1011727

Unavailable

PAD,RH,R.SUSP.MTG.01 Substituted by 1011728-067

1011728

Unavailable

FOOTREST,LH REAR

5220893

Unavailable

FOOTREST,RH REAR

5220894

$32.15

SUPPORT, MUFFLER Substituted by 1011601-067

1011601

Unavailable

SCREW(10)

7512116

Unavailable

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

PLATE,TUNNEL,LH

5220634

Unavailable

PLATE,TUNNEL,RH

5220635

Unavailable

SPRING, TANK

7042033

Unavailable

DECAL(47.5'')TUNNEL [No Longer Available]

7072078

Unavailable

BOLT(10)

7512193

$2.39

HARNESS-TAILLIGHT

2460237

Unavailable

HARNESS-TAILLIGHT

2460237

Unavailable

PAD,LH FOOT SAFETY

5830007

$7.89

PAD,RH FOOT SAFETY

5830008

$4.92

BRKT,GASTANK,WELD. Substituted by 1011733-067

1011733

Unavailable

BRKT,GASTANK,WELD. Substituted by 1011733-067

1011733

Unavailable

BULKHEAD, (TRAIL)

1011612

Unavailable

BRACKET, HINGE Substituted by 5241437

5220406

Unavailable

DECAL,ENG/CLUTCH [No Longer Available]

7072871

Unavailable

SNAP-MALE(10)

7080227

Unavailable

SPEED NUT(10)

7670021

$6.99

REFLECTOR

5430781

Unavailable

SCREW(10)

7511856

Unavailable

BRACKET-CLUTCH GUARD [No Longer Available]

5223798

Unavailable

DESC NOT_AVAILABLE

5222119

Unavailable
