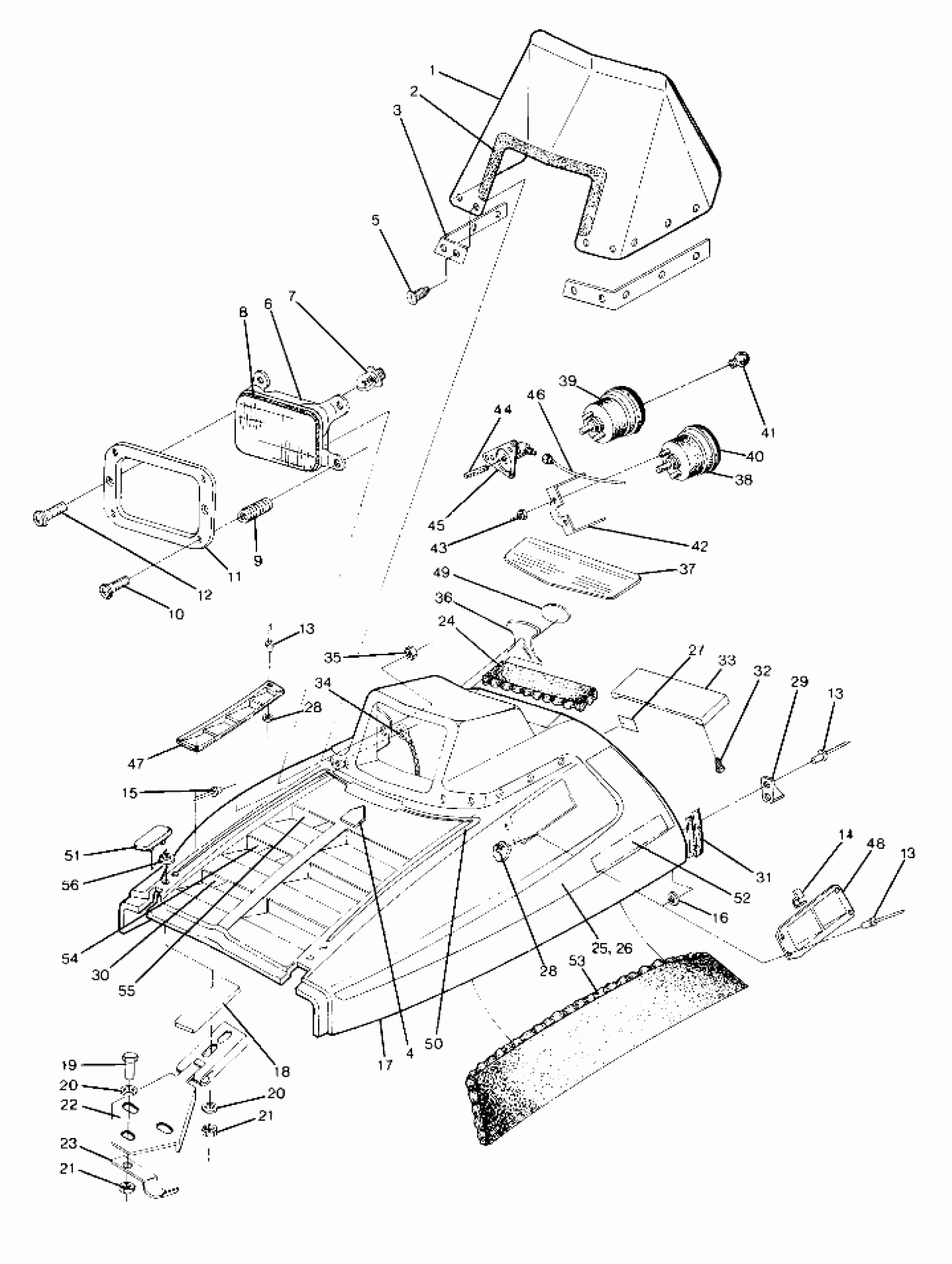

Polaris NOR TRAIL - N890761 HOOD Trail (4915441544005A) Diagram
#
-
WINDSHIELD,(2-UP,BASIC) [No Longer Available] (Trail Deluxe Only)
5431080
Unavailable
1
WINDSHIELD
5430694
Unavailable
2
PAD, WINDSHIELD
5810248
Unavailable
3
BAND-W/S LH [No Longer Available]
5850054
Unavailable
3
BAND-W/S RH [No Longer Available]
5850055
Unavailable
4
EMBLEM,INDY TRAIL [No Longer Available]
5430981
Unavailable
5
CLIP-PLASTIC(10) Substituted by 7621505
7670041
Unavailable
6
HEADLIGHT,ASM [No Longer Available] (Incl. 7-10)
2431004
Unavailable
7
BULB,QUARTZ.H/L,INDY (Opt.)
2870448
$24.99
7
BULB, H/L
4030028
$29.99
8
UNIT-HEADLAMP
4032001
Unavailable
9
SPRING-ADJ
4032002
Unavailable
10
SCREW, ADJ.(10)
4032003
Unavailable
11
PLATE,H/L RING [No Longer Available]
5211140
Unavailable
12
SCREW(10)
7511985
Unavailable
13
RIVET, POP(50)
7621322
$0.56
13
RIVET, POP(50)
7621322
$0.56
13
RIVET, POP(50)
7621322
$0.56
14
U CLIP(10)
7670042
$1.59
15
BLIND RIVET(50)
7621403
$1.49
16
RIVET BURR(50)
7555756
$2.99
17
HOOD,TRAIL,'89 [No Longer Available]
5440201
Unavailable
18
PAD [No Longer Available]
5850063
Unavailable
19
BOLT(10)
7512247
$2.39
20
WASHER,WROUGHT(10)
7558302
$1.59
20
WASHER,WROUGHT(10)
7558302
$1.59
21
NUT-LOCK(10)
7542122
$1.49
21
NUT-LOCK(10)
7542122
$1.49
22
HINGE,LH,HOOD Substituted by 2635001-067
2635001
Unavailable
22
HINGE ASM,RH,HOOD Substituted by 2635002-067
2635002
Unavailable
23
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
24
FOAM-HOOD TOP CTR. [No Longer Available]
5810162
Unavailable
25
KIT,DECAL,TRAIL [No Longer Available] (Incl. 4,26,27,36,37, 50,52)
2200291
Unavailable
25
KIT,DECAL,TRAIL [No Longer Available] (Incl. 4,26, 27,36,37, 50,52)
2200291
Unavailable
25
KIT,DECAL,TRL.SPEC. [No Longer Available] 46
2200292
Unavailable
26
DECAL,LH HOOD [No Longer Available]
7072663
Unavailable
26
DECAL,RH HOOD [No Longer Available]
7072664
Unavailable
26
DECAL,LH HOOD,TRL.SPEC. [No Longer Available] (Trail Special Only)
7072674
Unavailable
26
DECAL,RH HOOD,TRL.SPEC. [No Longer Available] (Trail Special Only)
7072675
Unavailable
27
LOGO, INDY SPECIAL
5431108
Unavailable
27
SPRING,HOOD CABLE
7041202
Unavailable
27
LABEL, 'U.S.A.'
7073024
Unavailable
28
RIVET BURR(50)
7555727
$1.49
28
RIVET BURR(50)
7555727
$1.49
29
CUP, HOOD LATCH,(10)
5430733
$4.84
30
TAPE, FOIL [No Longer Available]
5810174
Unavailable
31
EDGE TRIM - BLACK Substituted by 5521131
8360012
Unavailable
32
SCREW(10)
7511840
Unavailable
33
COVER, INLET,(GREY)
5431070
$45.13
34
CABLE, HOOD
7080284
Unavailable
35
NUT(10)
7541925
$1.49
36
DECAL,INST. [No Longer Available]
7072476
Unavailable
36
DECAL,INST. [No Longer Available] (Trail Special Only)
7072477
Unavailable
37
DECAL,DASH WARNING [No Longer Available]
7072337
Unavailable
38
SPEEDOMETER
3280092
$111.99
38
SPEEDO.,(KILOMETER)
3280097
$125.65
39
TACHOMETER
3280093
Unavailable
40
GLASS & BEZEL [No Longer Available]
2200267
Unavailable
41
BULB INSTRUMENT
4030017
Unavailable
42
BRACKET
3280098
Unavailable
43
NUT
3280063
Unavailable
44
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
45
ADAPTER,DRIVE Substituted by 3280116
3280095
Unavailable
46
CABLE,SPEEDO.
3280094
$60.70
47
LOUVER-HOOD
5430661
Unavailable
48
LOUVER,AIR OUTLET Substituted by 5430918
5430826
Unavailable
49
LOGO, INDY SPECIAL
5431108
Unavailable
49
LOGO,E/S,(TRAIL) (Trail ES & Deluxe Only)
5430861
Unavailable
50
DECAL,LH HOOD TOP [No Longer Available]
7072661
Unavailable
50
DECAL,RH HOOD TOP [No Longer Available]
7072662
Unavailable
50
DECAL,LH TOP,TRL.SPEC. [No Longer Available] (Trail Special Only)
7072672
Unavailable
50
DECAL,RH TOP,TRL.SPEC. [No Longer Available] (Trail Special Only)
7072673
Unavailable
51
CAP, HOOD HINGE Substituted by 2635008
2365008
Unavailable
52
EMBLEM,(TRAIL) [No Longer Available]
5430852
Unavailable
53
FOAM,HOOD,LH [No Longer Available]
5810313
Unavailable
53
FOAM,HOOD,RH
5810340
Unavailable
54
TAPE, FOIL(6X9)
5810175
Unavailable
55
FOIL,TAPE,HOOD [No Longer Available]
5810341
Unavailable
56
WASHER(10) [No Longer Available]
7555763
Unavailable
