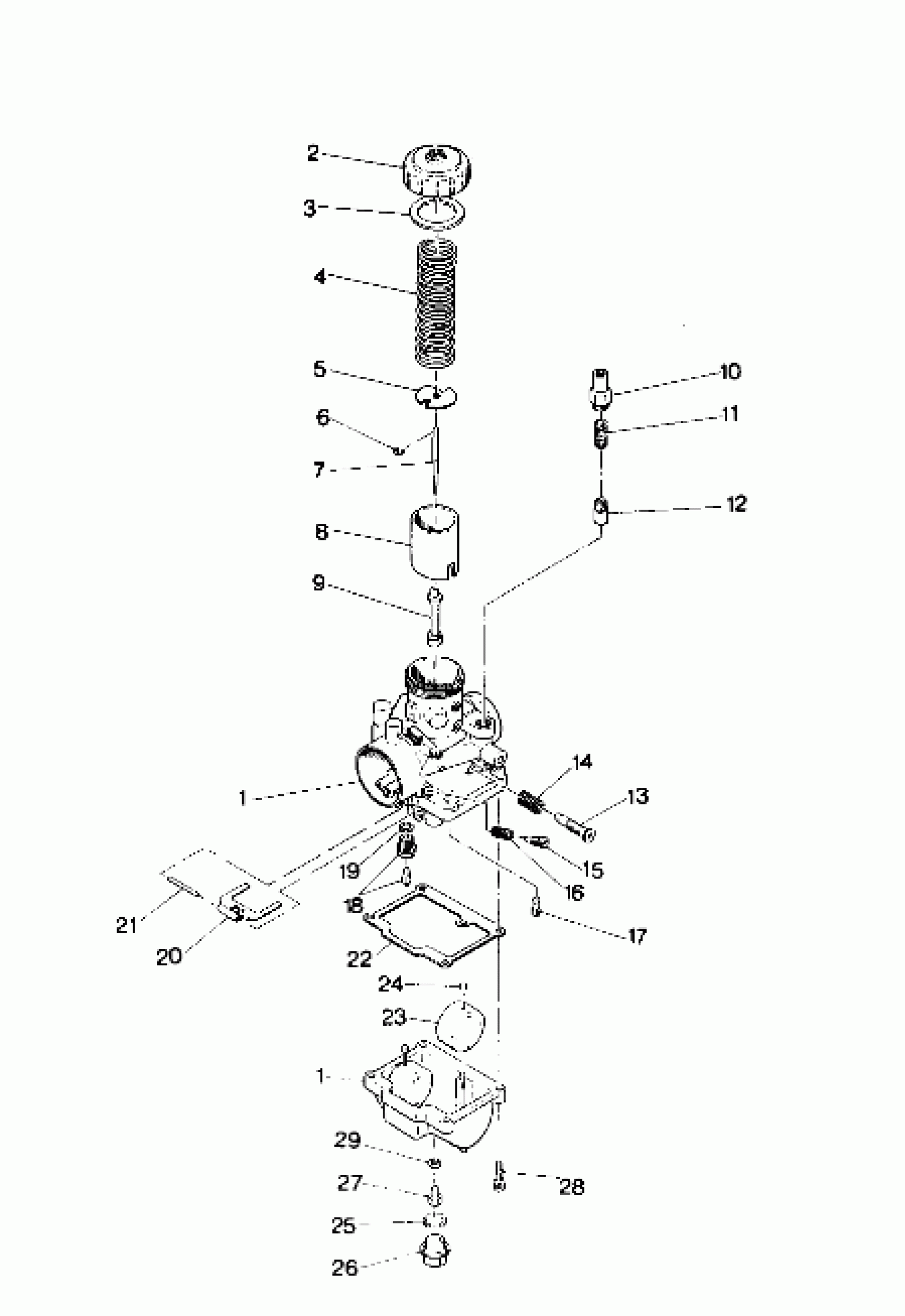

Polaris NOR TRAIL - N890761 CARBURETOR Trail (4915441544030A) Diagram
#
Description
Price
1
CARBURETOR (Incl. 2-29)
3130395
Unavailable
1
CARBURETOR (Incl. 2-29)
3130395
Unavailable
2
TOP ASM (Incl. 3)
3130184
$32.37
3
GASKET
-------
Unavailable
3
GASKET
-------
Unavailable
4
SPRING, THROTTLE
3130318
$20.22
5
PLATE,THROTTLE Substituted by 3130027
3130216
Unavailable
6
E RING(10) Substituted by 3130003
3130245
Unavailable
7
JET NEEDLE
3130329
Unavailable
8
VALVE,THROTTLE,(3.0)
3130372
$52.60
9
JET NEEDLE
3130160
$36.41
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR Substituted by 3130011
3130233
Unavailable
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#35(10)
3130066
$8.89
18
VALVE,NEEDLE Substituted by 3131146
3130016
$48.56
19
PACKING(10)
3130017
$4.03
20
ARM,FLOAT
3130018
$24.27
21
PIN, FLOAT Substituted by 3130235
3130240
$8.89
22
PACKING,FLOAT CHAMBER
3130020
$16.17
23
FLOAT ASM. Substituted by 3130430
3130032
Unavailable
24
CAP,(10)
3130237
$4.03
25
O RING
3130239
Unavailable
26
BOLT,BANJO
3130321
$23.99
27
JET,MAIN,HX.HD#220(10)
3130125
$5.65
28
SCREW & WASHER(10)
3130025
$3.19
29
WASHER (10)
3130014
$1.59
