BRAKE AND CHAINCASE - 0891027 (4915421542B009)

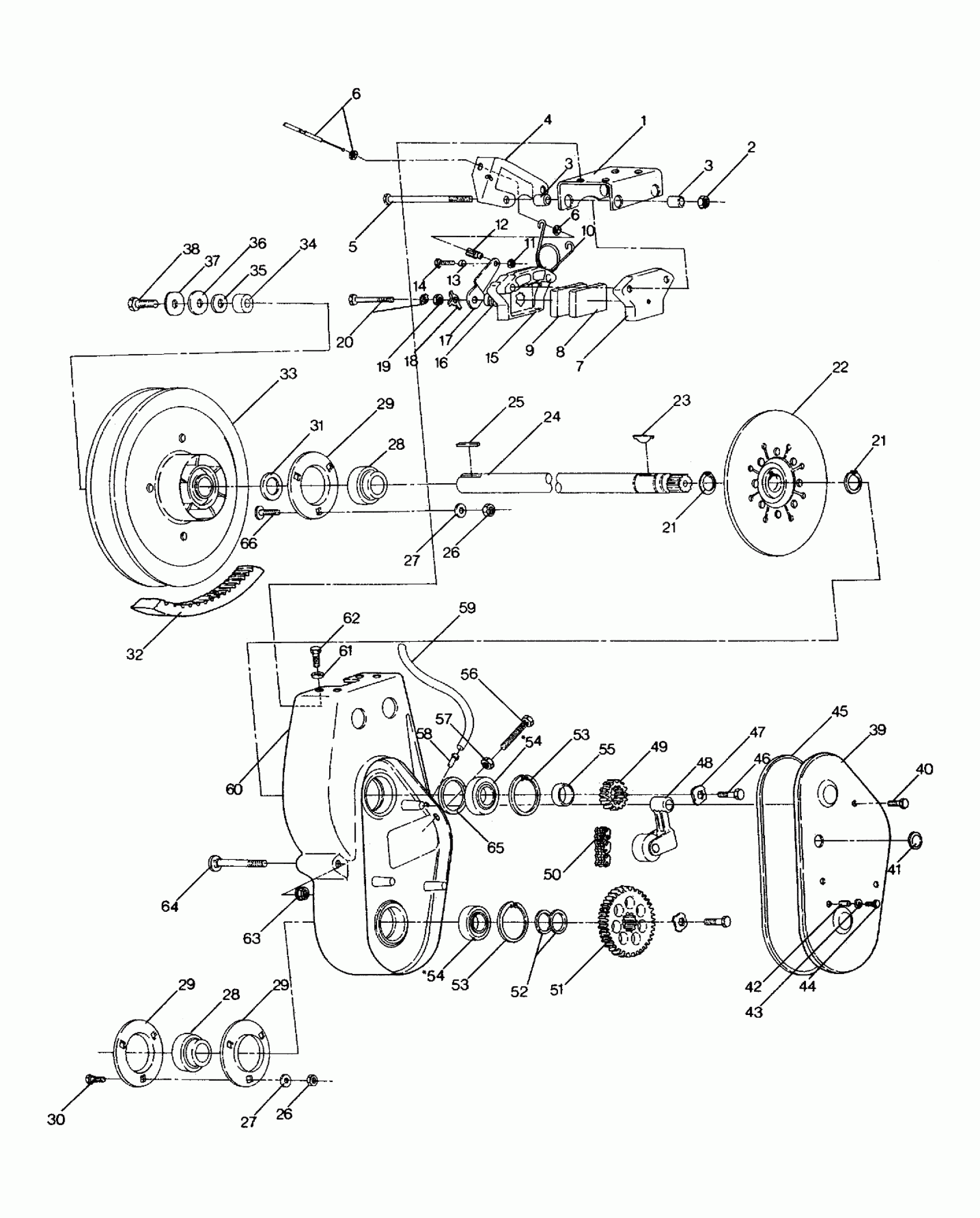

Polaris NOR STARTRAK - N891027 BRAKE AND CHAINCASE - 0891027 (4915421542B009) Diagram
#
1
BRACKET Substituted by 5220514-067
5220514
Unavailable
2
NUT(10)
7542425
$1.75
3
BUSHING
1930559
Unavailable
3
BUSHING
1930559
Unavailable
4
BRKT,BRAKE,BLK. Substituted by 5220211-067
5220211
Unavailable
5
BOLT(10)
7515478
$11.43
6
CABLE, BRAKE
7080351
Unavailable
6
CABLE, BRAKE
7080351
Unavailable
7
CALIPER
5630305
$36.41
8
PUCK
1930592
Unavailable
9
PAD, BRAKE,(THICK)
1930588
Unavailable
10
SPRING, BRAKE RETURN
7041147
Unavailable
11
NUT-LOCK(10)
7542122
$1.49
12
PIN, CLEVIS
7080316
Unavailable
13
BUSHING
5332795
$5.56
14
BOLT(10)
7512240
$3.99
15
CALIPER (Incl. 16-20)
1930593
Unavailable
16
Shaft
-------
Unavailable
17
Lever
-------
Unavailable
18
Locking Tab
-------
Unavailable
19
Jam Nut
-------
Unavailable
20
Bolt and Stop
-------
Unavailable
21
RING, RETAINING(10)
7713901
Unavailable
21
RING, RETAINING(10)
7713901
Unavailable
22
DISC BRAKE ASM
1332091
Unavailable
23
KEY,(10)
7727003
Unavailable
24
SHAFT-JACK [No Longer Available]
5020453
Unavailable
25
KEY-SQUARE(10)
7721204
$3.19
26
NUT-5/16-18 NYLOK-Y
7542324
$1.49
26
NUT-5/16-18 NYLOK-Y
7542324
$1.49
27
WASHER(10)
7555725
Unavailable
27
WASHER(10)
7555725
Unavailable
28
BEARING
3514501
Unavailable
28
BEARING
3514501
Unavailable
29
FLANGETTE Substituted by 5222751
5221172
Unavailable
29
FLANGETTE Substituted by 5222751
5221172
Unavailable
29
FLANGETTE Substituted by 5222751
5221172
Unavailable
30
BOLT(10)
7512331
$3.99
31
WASHER SPECIAL(10)
7556509
Unavailable
32
BELT DRIVE(5)
3211042
$109.99
33
CLUTCH-DRIVEN Substituted by 1322105
1322101
Unavailable
34
SPACER
5430787
Unavailable
35
WASHER(10)
7555734
Unavailable
36
WASHER FLAT(10)
7555701
$3.99
37
WASHER,SHAKEPROOF,5/16(10)
7577901
Unavailable
38
BOLT(10)
7512312
$1.49
39
COVER CHAINCASE Substituted by 5222579
5223775
Unavailable
40
BOLT(10)
7512246
Unavailable
41
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
42
NUT-WELL(10)
7541918
Unavailable
43
WASHER, FLAT(10)
7558201
$5.79
44
SCREW(10)
7511909
$3.99
45
GASKET-CHAINCASE
5410277
$24.99
46
BOLT(10)
7512325
$2.39
47
WASHER,SHAKEPROOF,5/16
7577902
Unavailable
48
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
49
SPROCKET 15 T
3221031
Unavailable
50
CHAIN 64 PITCH
3224023
Unavailable
51
SPROCKET 39 T
3222034
Unavailable
52
WASHER SPECIAL(10)
7556509
$1.59
53
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
53
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
54
BEARING
3514303
$11.99
54
BEARING
3514303
$11.99
55
SPACER Substituted by 5010270
5010128
Unavailable
56
SCREW(10)
7512470
Unavailable
57
NUT(10)
7542404
$1.59
58
PIN-SPIRAL(10)
7661504
$1.27
59
KIT-TANK VENT Substituted by 2200190
5420153
Unavailable
60
CHAINCASE Substituted by 1332124
5130652
$261.90
61
LOCK WASHER(10)
7552801
$1.59
62
BOLT(10)
7512240
$3.99
63
NUT(10)
7542423
$3.99
64
BOLT(10)
7515428
$4.79
65
O-RING,CHAINCASE
5410401
Unavailable
66
BOLT(10) Substituted by 7512377
7512394
Unavailable
