BUMPER AND HINGE Star Trak (4912731273003A)

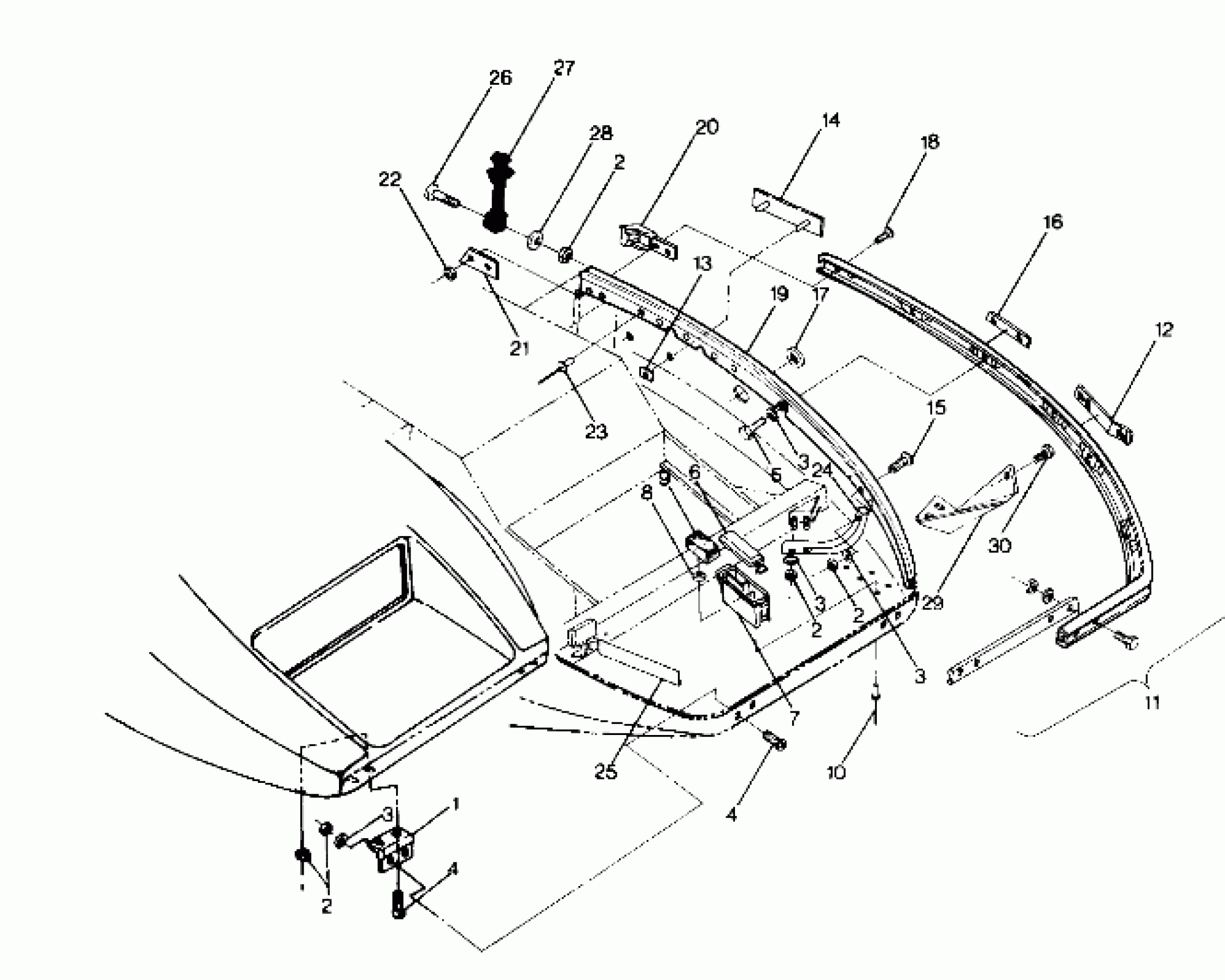

Polaris NOR STAR TRAK - N871027 BUMPER AND HINGE Star Trak (4912731273003A) Diagram
#
Description
Price
1
HINGE-HOOD [No Longer Available]
5210941
Unavailable
2
NUT-LOCK(10)
7542122
$1.49
2
NUT-LOCK(10)
7542122
$1.49
2
NUT-LOCK(10)
7542122
$1.49
3
WASHER,WROUGHT(10)
7558302
$1.59
3
WASHER,WROUGHT(10)
7558302
$1.59
3
WASHER,WROUGHT(10)
7558302
$1.59
3
WASHER,WROUGHT(10)
7558302
$1.59
4
SCREW(10) [No Longer Available]
7512004
Unavailable
4
SCREW(10) [No Longer Available]
7512004
Unavailable
5
BOLT(10)
7512232
$1.49
6
COVER,TOOL BOX
5430719
$28.32
7
BOX-TOOL
5430716
$11.99
8
RIVET BURR(50)
7555727
$1.49
9
FOAM - TOOL BOX
5810266
Unavailable
10
RIVET, POP(50)
7621322
$0.56
11
BUMPER, FRONT (3PC)
2670082
Unavailable
12
DECAL(ROLL)BLU&BLK.STRIPE [No Longer Available]
8330062
Unavailable
13
PALNUT(10)
7670009
$2.39
14
EMBLEM, (POLARIS) [No Longer Available]
5430724
Unavailable
15
BOLT-CARRIAGE(10)
7512275
$3.99
16
REFLECTOR AMBER
2670071
Unavailable
17
PLUG-CLUTCH HOLE [No Longer Available]
5430620
Unavailable
18
SCREW(10)
7511987
Unavailable
19
CRADLE, HOOD, LH [No Longer Available] (Shown)
5521136
Unavailable
19
CRADLE, HOOD RH (not Shown}
5521137
Unavailable
20
END CAP-BUMPER(BLACK)
5430650
Unavailable
21
REINFORCER,BUMPER
5220407
Unavailable
22
NUT(10)
7541925
$1.49
23
RIVET(50)
7621431
$1.49
24
TUBING-PAN SUPPORT [No Longer Available]
5224225
Unavailable
24
TUBING-PAN SUPPORT [No Longer Available]
5224225
Unavailable
25
FOIL TAPE [No Longer Available]
5810164
Unavailable
26
SCREW(10)
7512279
$1.49
27
STRAP, HOOD LATCH
5410370
$24.27
28
WASHER(10)
7558221
$2.39
29
SUPPORT,PAN LH
1011478
Unavailable
30
BOLT(10)
7512193
$2.39
