SKI Star and Sprint E/S (4915431543008A)

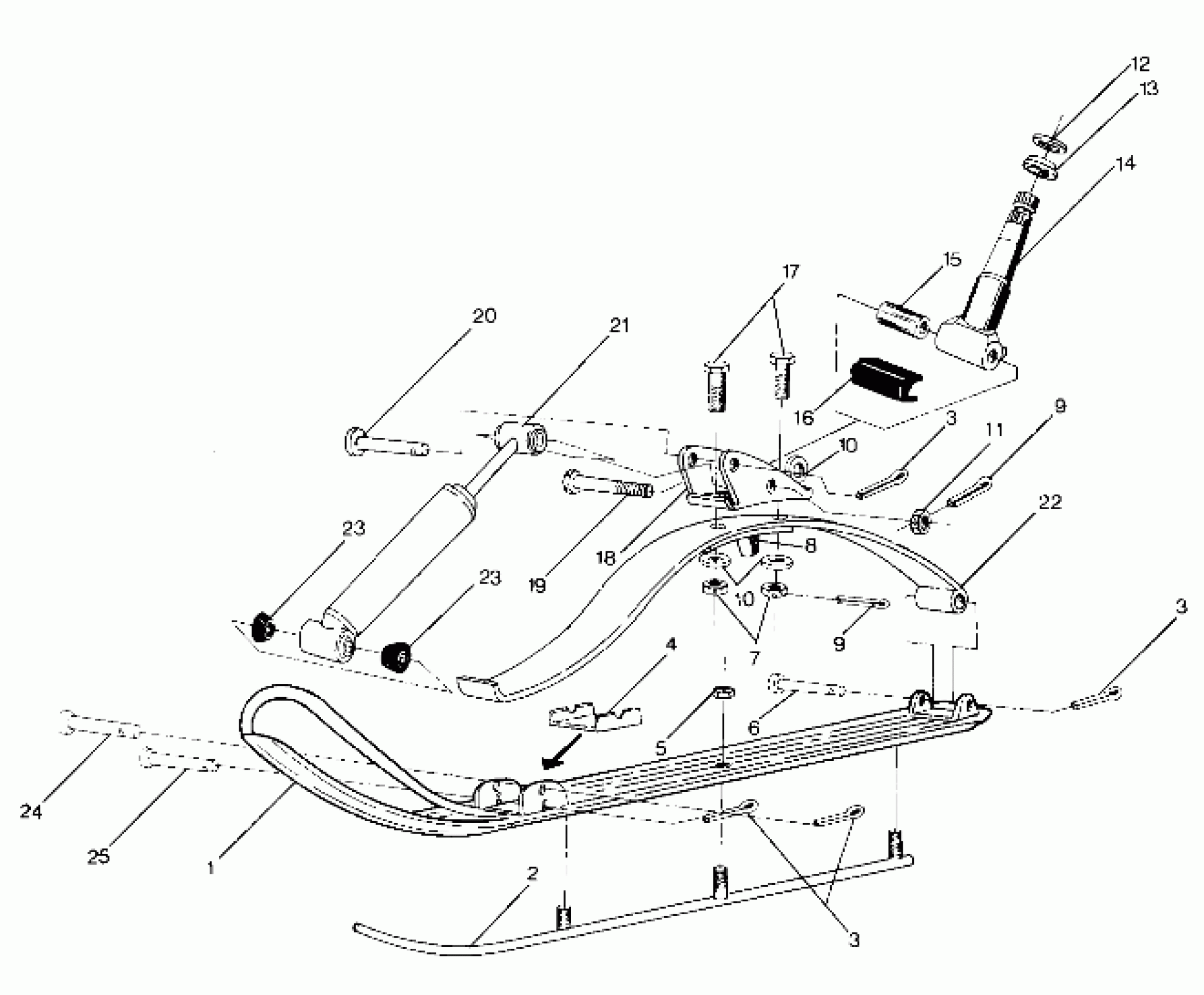

Polaris NOR STAR - N890927 SKI Star and Sprint E/S (4915431543008A) Diagram
#
Description
Price
1
SKI,3-BOLT Substituted by 1820255-067
1820255
Unavailable
2
SKAG,SHORT(20)
1820267
$23.99
3
COTTER PIN(10)
7661407
$4.79
3
COTTER PIN(10)
7661407
$4.79
3
COTTER PIN(10)
7661407
$4.79
4
WEAR PLATE [No Longer Available]
5430003
Unavailable
5
NUT-5/16-18 NYLOK-Y (STAR)
7542324
$1.49
6
PIN-CLEVIS [No Longer Available]
7662018
Unavailable
7
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
8
STOP,SKI SPRING
1820226
Unavailable
9
PIN-COTTER(10)
7661205
$1.49
9
PIN-COTTER(10)
7661205
$1.49
10
WASHER WROUGHT(10)
7558403
$4.79
10
WASHER WROUGHT(10)
7558403
$4.79
12
WASHER SPECIAL(10)
7556509
$1.59
13
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
14
SPINDLE Substituted by 6230054-067
6230054
Unavailable
15
BUSHING,STABLE SKI PIVOT
5010059
Unavailable
16
STOP-SKI
5410307
Unavailable
17
BOLT W/HOLE [No Longer Available]
7515454
Unavailable
18
SADDLE WELD [No Longer Available]
1820229
Unavailable
19
BOLT W/HOLE
7515452
Unavailable
20
PIN-CLEVIS(10)
7662104
Unavailable
21
SHOCK-SKI
7041134
Unavailable
22
SPRING-MONOLEAF(2) [No Longer Available]
7043038
Unavailable
23
BUSHING-BOTTOM-SHOCK [No Longer Available]
5430264
Unavailable
23
BUSHING-BOTTOM-SHOCK [No Longer Available]
5430264
Unavailable
24
CLEVIS PIN(10)
7662102
$12.39
25
CLEVIS PIN(10)
7662001
Unavailable
