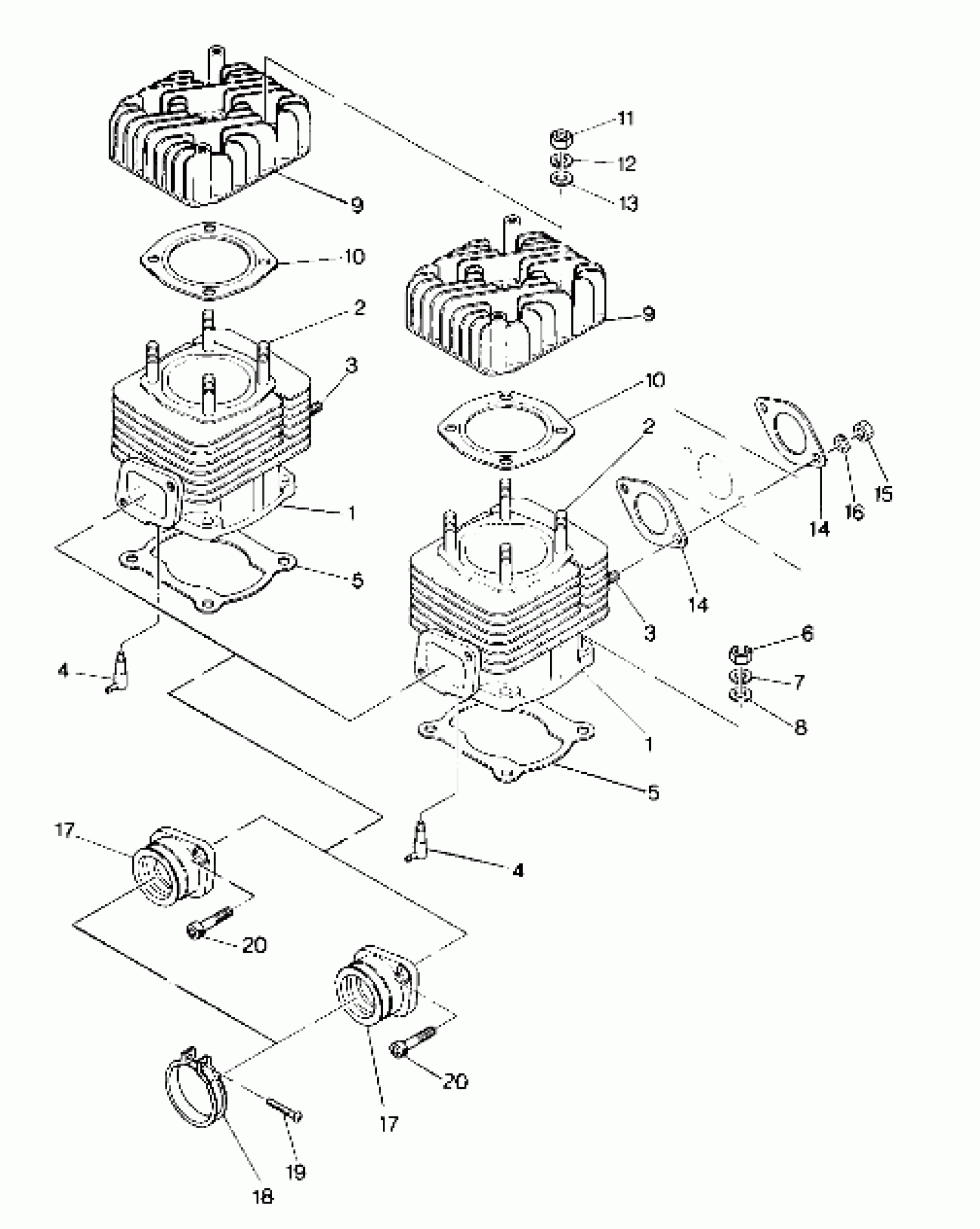

Polaris NOR STAR - N890927 CYLINDER Sprint E/S (4915431543023A) Diagram
#
Description
Price
1
CYLINDER (Incl. 2-4)
3083570
$507.94
1
CYLINDER (Incl. 2-4)
3083570
$507.94
2
Stud
3080283
$12.94
2
Stud
3080283
$12.94
3
STUD (10)
3080016
$5.75
3
STUD (10)
3080016
$5.75
4
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
4
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
5
GASKET, CYL. Substituted by 3085843
3083688
Unavailable
5
GASKET, CYL. Substituted by 3085843
3083688
Unavailable
6
NUT(10)
3080119
$2.39
7
WASHER, SPRING(10)
3083572
Unavailable
8
WASHER(10)
3080142
$3.99
9
Head, Cylinder
3083573
$133.32
9
Head, Cylinder
3083573
$133.32
10
GASKET, HEAD Substituted by 3084021
3083574
Unavailable
10
GASKET, HEAD Substituted by 3084021
3083574
Unavailable
12
WASHER LOCK ,(10)
3080530
$3.19
14
GASKET, EXHAUST Substituted by 3085845
3083575
Unavailable
14
GASKET, EXHAUST Substituted by 3085845
3083575
Unavailable
15
NUT(10)
3080285
Unavailable
17
Adapter
3083576
Unavailable
17
Adapter
3083576
Unavailable
18
BAND-CARB MTG. (Incl. 19)
3082257
Unavailable
19
SCREW,(10)
3081497
$2.39
20
Bolt, Allen
3081330
$3.99
20
Bolt, Allen
3081330
$3.99
