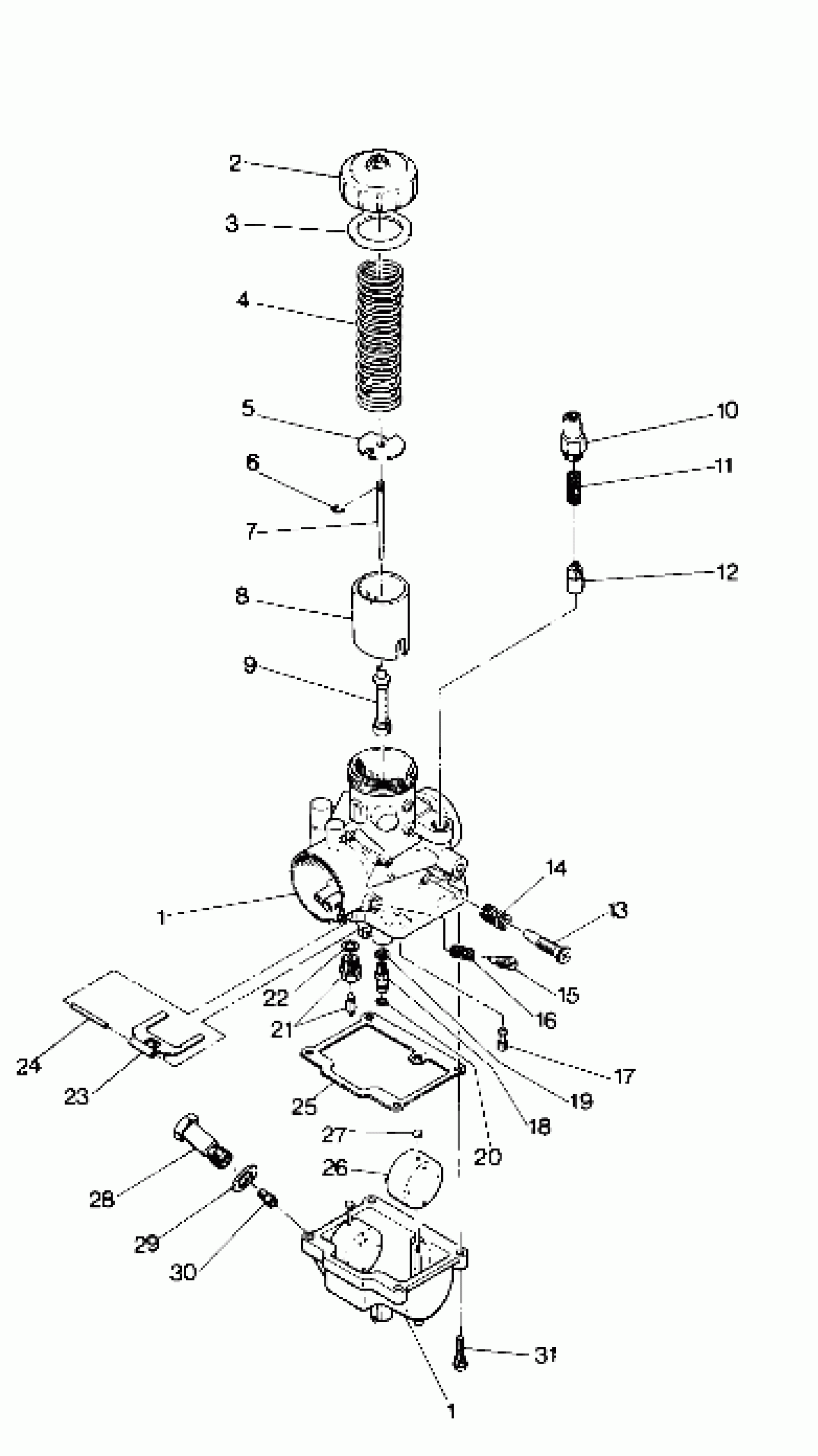

Polaris NOR STAR - N890927 CARBURETOR Sprint E/S (4915431543036A) Diagram
#
Description
Price
1
CARBURETOR (Incl. 2-31)
3130349
Unavailable
1
CARBURETOR (Incl. 2-31)
3130349
Unavailable
2
TOP,MIX CHAMBER (Incl. 3)
3130060
Unavailable
3
GASKET
-------
Unavailable
4
SPRING, THROTTLE
3130350
Unavailable
5
PLATE,THROTTLE
3130002
$20.22
6
E RING(10) Substituted by 3130508
3130003
Unavailable
7
JET NEEDLE
3130155
$24.27
8
VALVE, THROTTLE (3.0)
3130323
Unavailable
9
JET NEEDLE (O-8)
3130035
Unavailable
10
CAP, PLUNGER Substituted by 3130359
3130005
Unavailable
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
Screw, Throttle Stop
3130324
$19.84
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR Substituted by 3130011
3130233
Unavailable
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#35(10)
3130066
$8.89
18
NEEDLE JET SETTER
3130283
Unavailable
19
WASHER (10)
3130014
$1.59
20
O RING
3130015
Unavailable
21
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
22
PACKING(10)
3130017
$4.03
23
ARM,FLOAT
3130018
$24.27
24
PIN,FLOAT
3130043
Unavailable
25
PACKING,FLOAT CHAMBER
3130020
$16.17
26
FLOAT ASM
3130021
$40.46
27
CAP,(10)
3130237
$4.03
28
BOLT, BANJO
3130210
Unavailable
29
WASHER
3130024
Unavailable
30
JET,MAIN,HX.HD.#155
3130114
Unavailable
31
SCREW & WASHER(10)
3130025
$3.19
