Suspension (SS) Assembly No. 1540577 (4910951095015A)

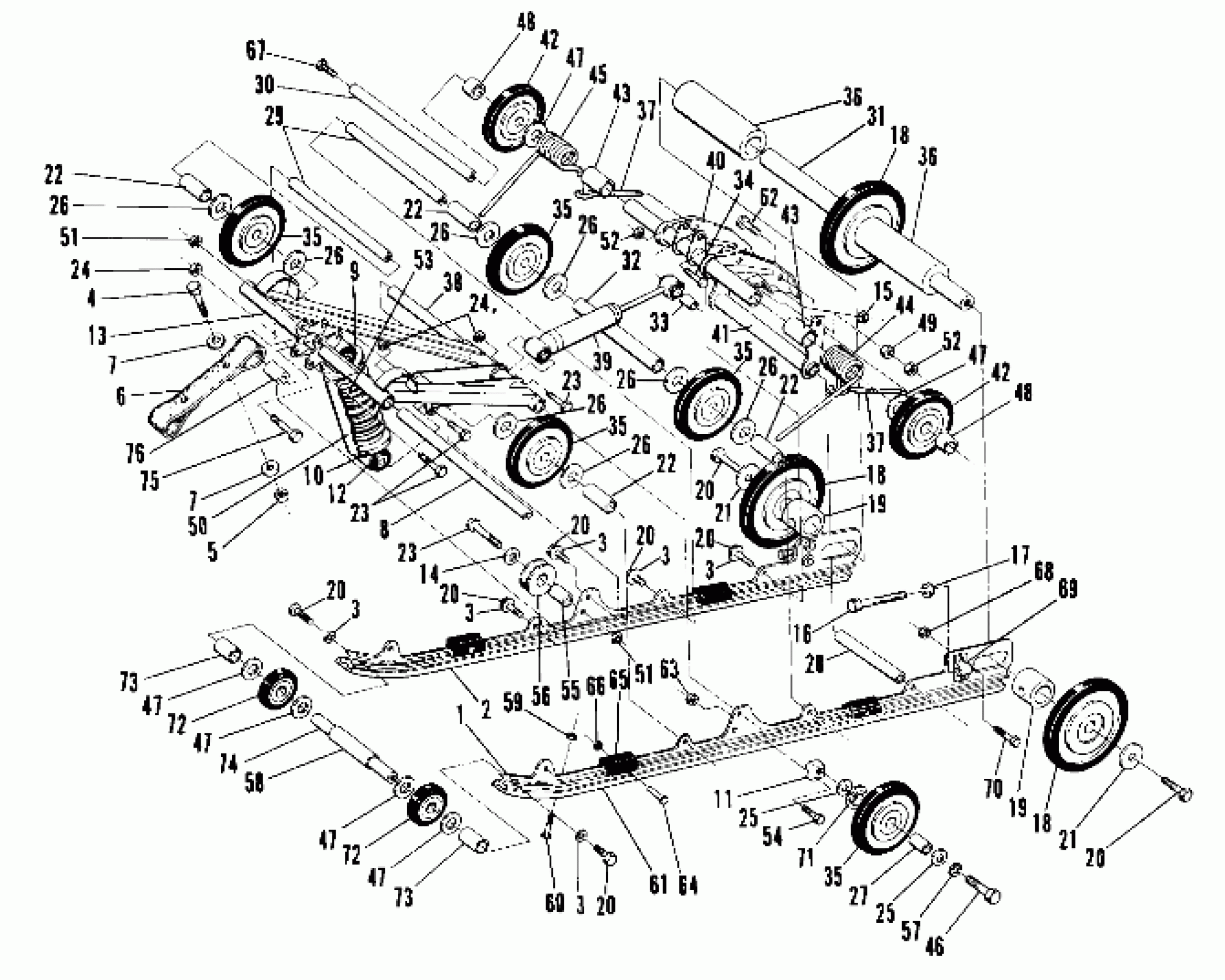

Polaris NOR SS - N861349 Suspension (SS) Assembly No. 1540577 (4910951095015A) Diagram
#
1
RAIL ASM, LH [No Longer Available] (Incl. 64-66, 68-70)
1540584
Unavailable
2
RAIL ASM, RH [No Longer Available] (Incl. 64-66, 68-70)
1540585
Unavailable
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
4
BOLT(10)
7515307
$3.99
5
NUT-5/16-18 NYLOK-Y
7542324
$1.49
6
STRAP, LIMITER [No Longer Available]
5410442
Unavailable
7
WASHER(10)
7555716
$1.59
7
WASHER(10)
7555716
$1.59
8
SHAFT,MOUNTING
5010149
Unavailable
9
RETAINER-TOP
5220225
$10.39
10
SPACER,SHOCK RETAINER(10)
5210953
$6.39
11
BRACKET,BOGIE WHEEL
5130570
$48.56
12
SHOCK-SUSP
7041142
Unavailable
13
ARM, FRONT TORQUE Substituted by 1540567-067
1540567
Unavailable
14
WASHER(10)
7555743
Unavailable
15
NUT FLEX LOC,(10)
7542402
$6.39
16
BOLT, ADJUSTER(10)
7515455
$29.99
17
NUT(10)
7542440
Unavailable
18
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
18
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
18
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
19
SPACER-IDLER-OUTER
5332641
Unavailable
19
SPACER-IDLER-OUTER
5332641
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
21
WASHER FLAT(10)
7555732
Unavailable
21
WASHER FLAT(10)
7555732
Unavailable
22
SPACER, OUTER
5332784
Unavailable
22
SPACER, OUTER
5332784
Unavailable
22
SPACER, OUTER
5332784
Unavailable
22
SPACER, OUTER
5332784
Unavailable
23
BOLT Substituted by 7515491
7515433
$1.59
23
BOLT Substituted by 7515491
7515433
$1.59
23
BOLT Substituted by 7515491
7515433
$1.59
24
NUT(10)
7542425
$1.75
24
NUT(10)
7542425
$1.75
25
WASHER(10)
7555804
$3.99
25
WASHER(10)
7555804
$3.99
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
27
SPACER
5332786
$7.99
28
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
29
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
30
AXLE Substituted by 5020906
5020426
Unavailable
31
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
32
TUBE, SUSPENSION
5332783
Unavailable
33
SPACER
5332631
$6.39
34
BOLT(10) Substituted by 7515352
7515306
Unavailable
35
WHEEL-BOGIE
1543011
Unavailable
35
WHEEL-BOGIE
1543011
Unavailable
35
WHEEL-BOGIE
1543011
Unavailable
35
WHEEL-BOGIE
1543011
Unavailable
35
WHEEL-BOGIE
1543011
Unavailable
36
SPACER,IDLER,R.INNER Substituted by 5333086
5332734
Unavailable
36
SPACER,IDLER,R.INNER Substituted by 5333086
5332734
Unavailable
37
BOLT-EYE, SPRING ADJ.(10)
7080221
$9.59
37
BOLT-EYE, SPRING ADJ.(10)
7080221
$9.59
38
SHAFT-PIVOT ARM
5020413
Unavailable
39
SHOCK Substituted by 7041154
1540552
Unavailable
40
ARM, REAR TORQUE Substituted by 1540539-067
1540539
Unavailable
41
ARM, PIVOT Substituted by 1540571-067
1540571
Unavailable
42
WHEEL-TRACK CARRIER
1543017
$48.56
42
WHEEL-TRACK CARRIER
1543017
$48.56
43
TUBE-SPRING
5521089
Unavailable
43
TUBE-SPRING
5521089
Unavailable
44
SPRING LH Substituted by 7041119-067
7041119
Unavailable
45
SPRING RH Substituted by 7041120-067
7041120
Unavailable
46
BOLT(10)
7512659
$7.99
47
WASHER(10)
7555726
$1.59
47
WASHER(10)
7555726
$1.59
47
WASHER(10)
7555726
$1.59
47
WASHER(10)
7555726
$1.59
47
WASHER(10)
7555726
$1.59
47
WASHER(10)
7555726
$1.59
48
SPACER-CARR.WHEEL
5332730
$14.99
48
SPACER-CARR.WHEEL
5332730
$14.99
49
NUT, SHOULDER(10)
7542326
$19.99
50
SHIELD-SPRING
5430671
$24.27
51
NUT-LOCK(10)
7542439
$1.49
51
NUT-LOCK(10)
7542439
$1.49
52
NUT LOCK(10)
7542302
$3.99
52
NUT LOCK(10)
7542302
$3.99
53
SPRING-SHOCK
7041127
Unavailable
54
BOLT(10)
7512404
$3.99
55
Spacer
5332787
Unavailable
56
ROLLER-SPRING
5430540
Unavailable
57
LOCK WASHER(10)
7553201
$3.99
58
TUBE Substituted by 5332844-067
5332844
Unavailable
59
Nut, Nylok
7542122
$1.49
60
SCREW(10)
7512227
$3.19
61
SLIDER Substituted by 5521322 (Cut to fit)
5521124
Unavailable
62
BOLT(10)
7515317
$4.79
63
NUT LOCK(10)
7542403
$3.99
64
RIVET,(50)
7661609
Unavailable
65
BUMPER-SUSPENSION Substituted by 5810554
5410315
Unavailable
66
PALNUT(10)
7670009
$2.39
67
BOLT(10)
7515432
Unavailable
68
NUT-LOCK(10)
7542122
$1.49
69
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
70
BOLT(10)
7512247
$2.39
71
INSERT-WHEEL Substituted by 5431531
5430789
$9.70
72
WHEEL, BOGIE
1594036
Unavailable
72
WHEEL, BOGIE
1594036
Unavailable
73
TUBE Substituted by 5332845-067
5332845
Unavailable
73
TUBE Substituted by 5332845-067
5332845
Unavailable
74
SHAFT, PIVOT ARM
5020410
$8.73
75
BOLT(10)
7515438
$4.79
76
BUSHING,SUSPENSION
5010212
Unavailable
