ENGINE MOUNTING Sprint and Sprint E/S (4912721272014A)

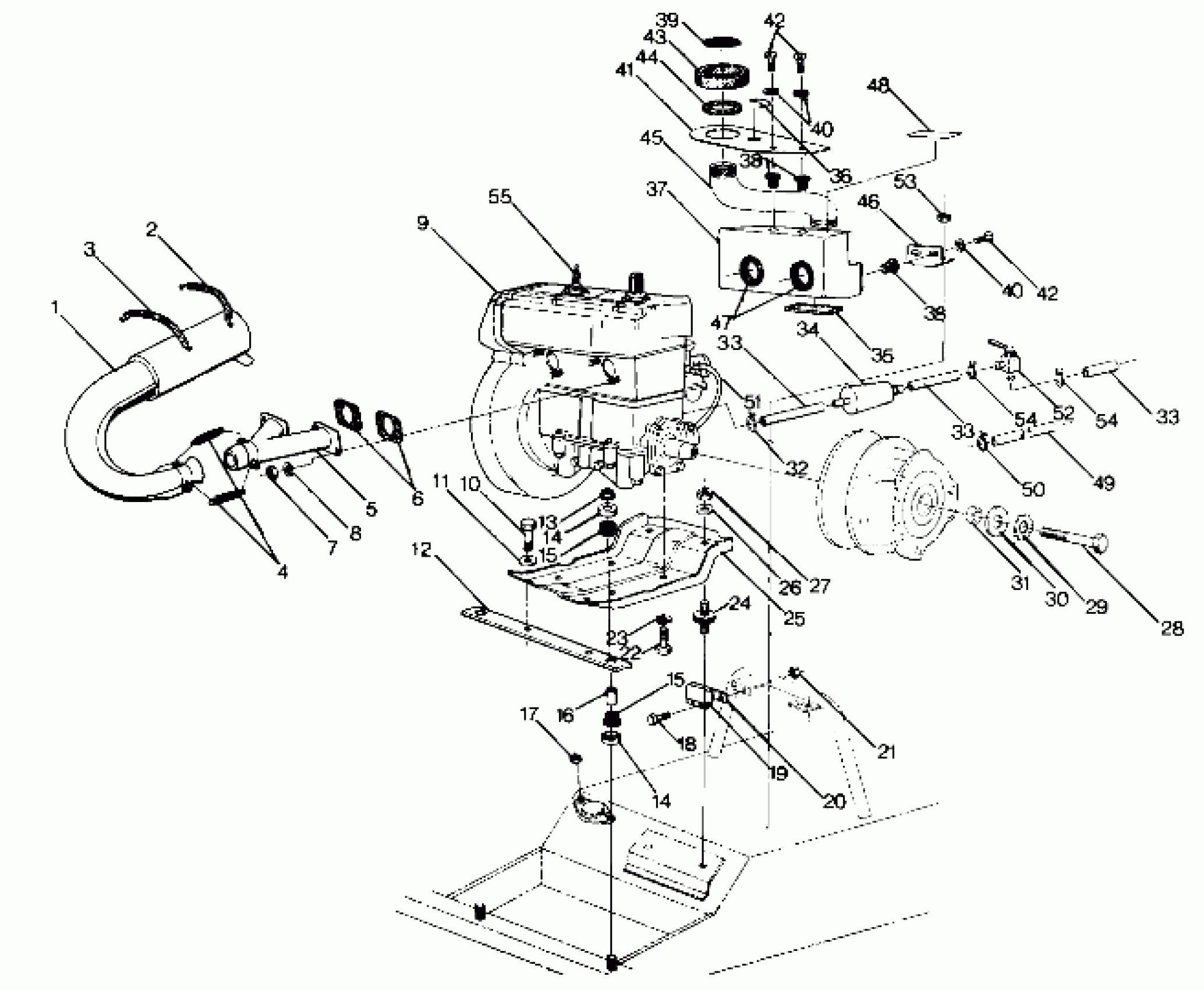

Polaris NOR SPRINT - N870933 ENGINE MOUNTING Sprint and Sprint E/S (4912721272014A) Diagram
#
1
MUFFLER [No Longer Available]
1260498
Unavailable
2
SPRING
7042015
Unavailable
3
SPRING-MUFFLER [No Longer Available]
7042027
Unavailable
4
SPRING RETURN EXHAUST Substituted by 7042031
3081078
Unavailable
5
MANIFOLD Substituted by 1260497-029
1260497
Unavailable
6
GASKET, EXHAUST Substituted by 3085845
3083575
Unavailable
7
NUT(10)
3080285
Unavailable
8
WASHER LOCK ,(10)
3080530
$3.19
9
ENG.EC34-2PM02 [No Longer Available] (Sprint ES)
1211446
Unavailable
9
ENG.EC34-2PM01 [No Longer Available] (Sprint)
1211445
Unavailable
10
BOLT(10) Substituted by 7512457
7512491
Unavailable
11
WASHER SHAKEPROOF(10) Substituted by 7577902
7577908
Unavailable
12
MT.ENG-FR.CHANNEL
1270079
Unavailable
13
NUT FLANGED LOC,(10)
7542508
Unavailable
14
CAP
5221901
Unavailable
14
CAP
5221901
Unavailable
15
DAMPENER-MTR.MT.
5410326
Unavailable
15
DAMPENER-MTR.MT.
5410326
Unavailable
16
BUSHING-MTR.MT.
5010166
Unavailable
17
NUT(10)
7541925
$1.49
18
SCREW(10)
7511930
$2.39
19
REGULATOR - MINKS
4060071
Unavailable
20
HEAT SINK
5210650
Unavailable
22
BOLT(10)
7512539
$3.99
23
WASHER LOCK(10)
7553101
$3.99
24
MOUNT-MTR.
3110020
Unavailable
25
PLATE, MTR.MT. [No Longer Available]
5220426
Unavailable
26
WASHER, FLAT(10)
7555815
$3.99
27
NUT LOCK(10)
7542403
$3.99
28
BOLT(10)
7512565
$19.99
29
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
30
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
31
BUSHING-.437 X.770 X.50
5430261
$7.19
32
CLAMP-HOSE(10)
7080134
Unavailable
33
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
33
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
33
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
34
FILTER FUEL,(10)
2530008
$4.84
35
PAD-SILENCER [No Longer Available]
5810138
Unavailable
36
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
37
SILENCER BOX [No Longer Available]
5430745
Unavailable
38
NUT-WELL(10)
7541923
$5.59
38
NUT-WELL(10)
7541923
$5.59
39
SCREEN-AIR SILENCER Substituted by 5210938-067
5210938
Unavailable
40
WASHER,WROUGHT(10)
7558302
$1.59
40
WASHER,WROUGHT(10)
7558302
$1.59
41
MOUNT,AIR INLET HOSE [No Longer Available]
5220458
Unavailable
42
SCREW(10)
7512279
$1.49
42
SCREW(10)
7512279
$1.49
43
FOAM-INTAKE [No Longer Available]
5810137
Unavailable
44
TUBING-CONVOLUTED
4010055
Unavailable
45
HOSE-SILENCER
5410340
Unavailable
46
BRACKET,SILENCER [No Longer Available]
5220459
Unavailable
47
BOOT-SILENCER
5410311
Unavailable
48
DECAL,SILENCER [No Longer Available]
7072087
Unavailable
49
HOSE,IMPULSE [No Longer Available]
5521132
Unavailable
50
HOSE CLAMP, RED
7080003
$1.49
51
FUEL LINE3/16ID-2FT. Substituted by 8450037-600
5521133
Unavailable
52
VALVE,FUEL SHUT-OFF
7052039
Unavailable
53
NUT-LOCK(10)
7542122
$1.49
54
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
54
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
55
SPARKPLUG(8)
3070165
$3.99
